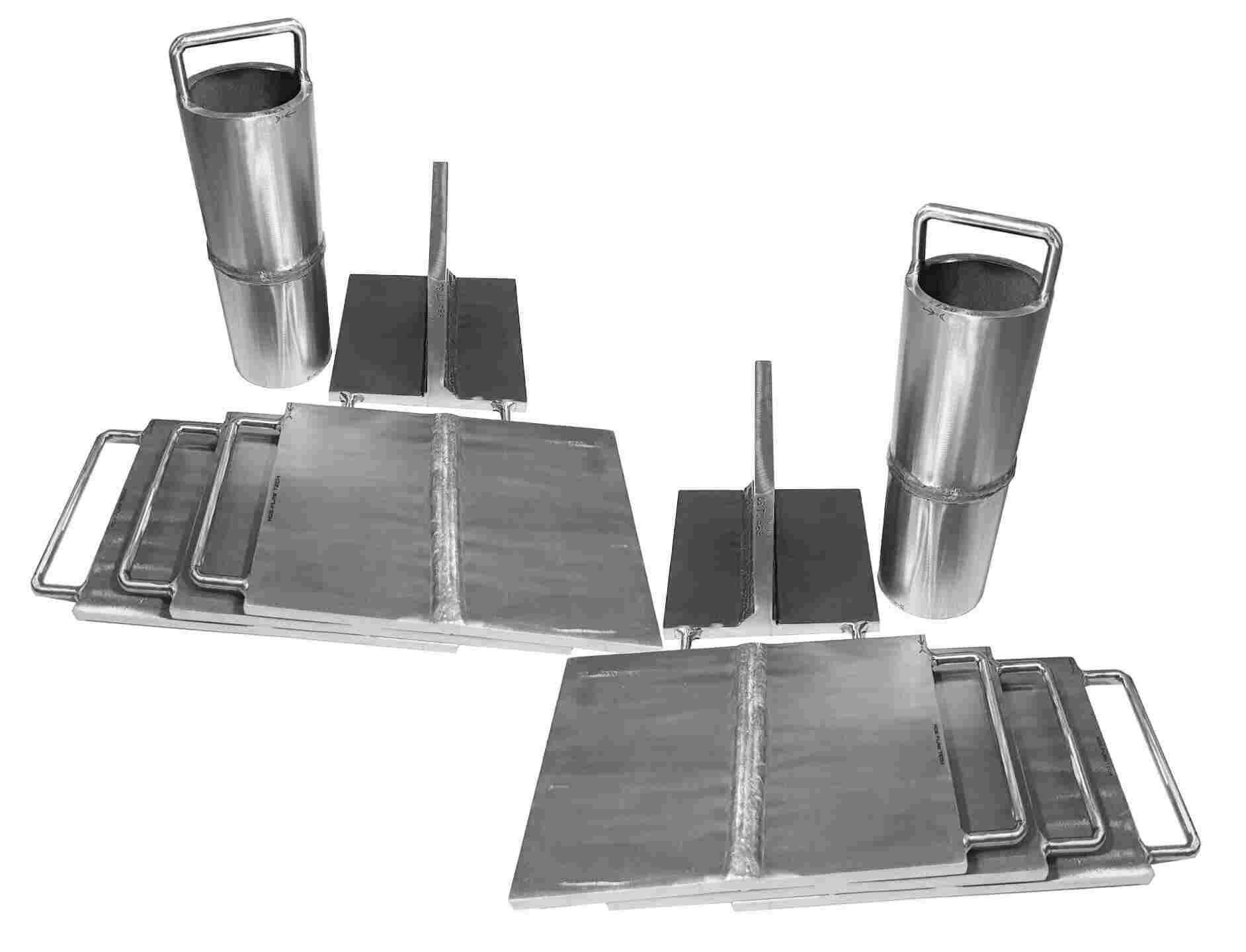

STANDARD RADIOGRAPHIC KIT (Inch Version)

The Radiographic Kit Contains 10 Specimens, includes 6 Plates, 2 Pipe & 2 Tee, Each specimen contains 3 “ARTIFICIAL FLAWS” Randomly placed

Material – Carbon Steel, For special alloy request by mail.

Kit contains 10 Specimens

(3) Single V Plates: 0.375” (T) x 12” (W) x 10” (L)

(3) Double V Plates: 0.8” (T) x 12” (W) x 10” (L)

(1) Single V Tee Plate: 0.375” (T) x 10” (W) x 10” (L) x 6” (H)

        (1) Double V Tee Plate: 0.8” (T) x 10” (W) x 10” (L) x 8” (H)

(1) Single V Pipe: Ø4” Sch 80 (Wall Thickness – 0.337”) x 10” (L)

(1) Single V Pipe : Ø8” Sch 120 (Wall Thickness – 0.71”) x 10” (L)

3 Flaws in each specimen total 30 flaws

Document package includes Certificate of Conformance, Drawing and Inspection Report.
