AWS Resolution Reference Test Block (INCH VERSION) 1018 Steel

AWS Resolution Reference Test Block (INCH VERSION) 1018 Steel

Price: $199.00


Availability : In Stock


AWS Resolution Reference Test Block (INCH VERSION) 1018 Steel

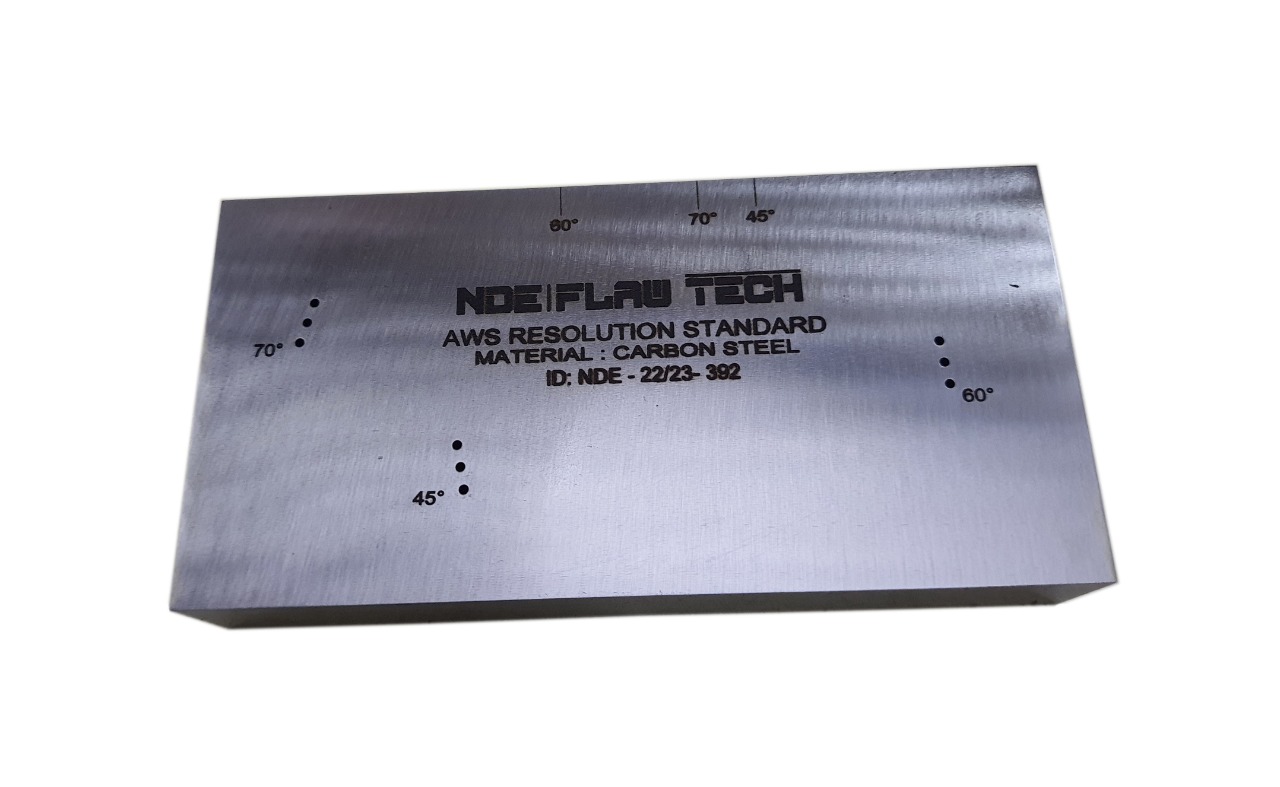

Also called an RC block, the AWS Resolution Reference Block is used for checking resolution capabilities of angle beam transducers. Contains three sets of .0625" diameter through-holes for 45°, 60° and 70°. In accordance with AWS Welding Highway and Railway Bridges specification D2.0, and Structural Welding Code ANSI/AWS D1.1. AWS does not specify a separate metric version of the AWS Resolution block. The metric block in AWS shows only the metric equivalents to the standard design. Therefore, this one block can be used for both inch and metric requirements.

Geometry: 1 " x 3" x 6". Contains nine 0.062" diameter holes for 45, 60 and 70-degree transducers.

Dimensions: 6.000" (L) x 3.000" (W)  x 1.000" (T).

Material: 1018 Steel
