Corrosion, Erosion and Pitting NDT Training and Examination Flawed Specimen

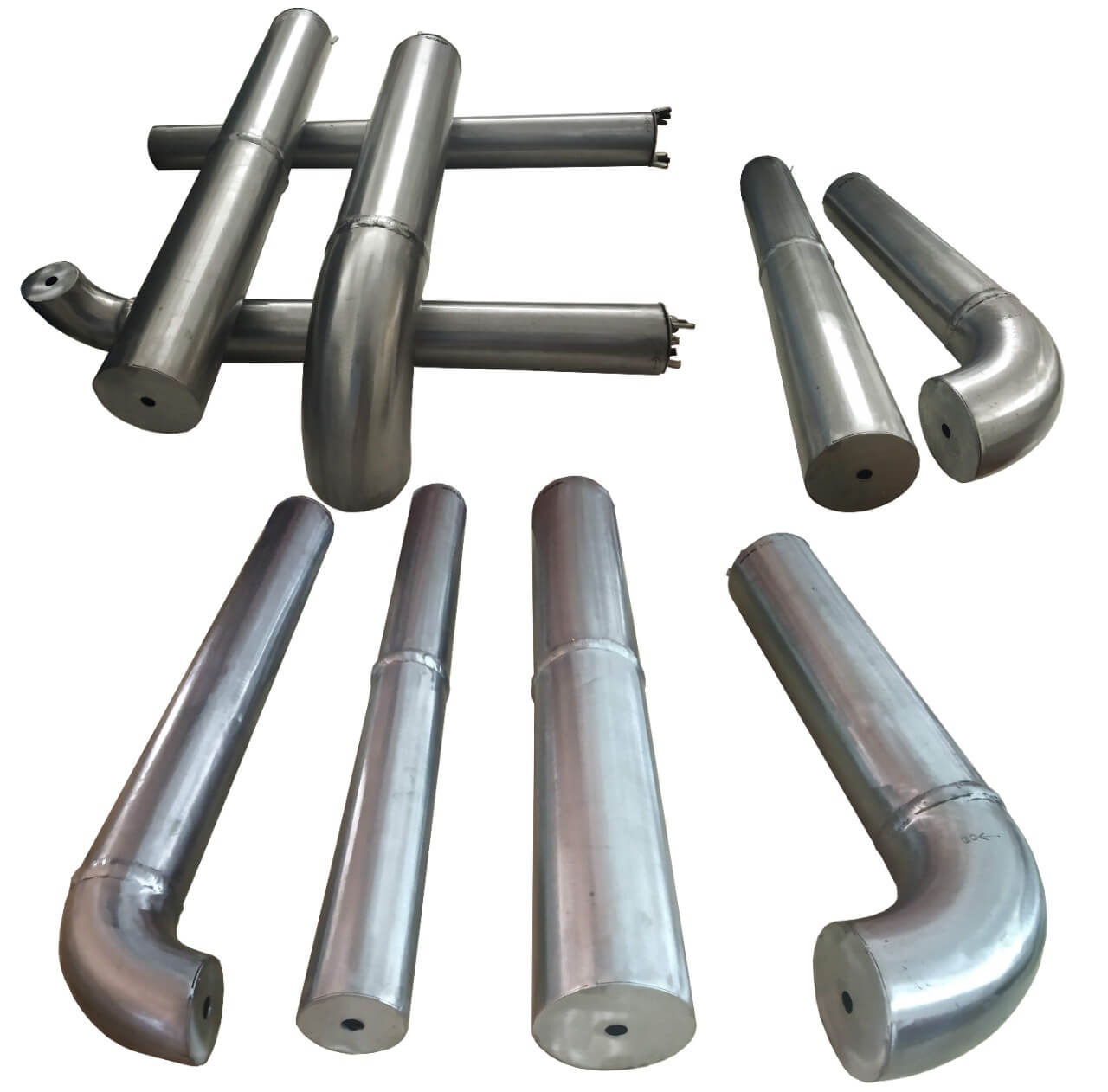

Borescope Inspection Training and Demonstration Flaw Kit Pipe OD 1” Sch80 (0.2” wall) Pipe 2 Nos 90° Elbow OD 1.5” Sch80 (0.2” wall) Pipe and Long Radius 90° Elbow connected 8 Nos Specifications: Each specimen will contain a minimum 2 to 4 ID connected flaws. Combination of pre-service and post-service indications. Each specimen will have the elbow end sealed with a 0.625” port to allow borescope access.

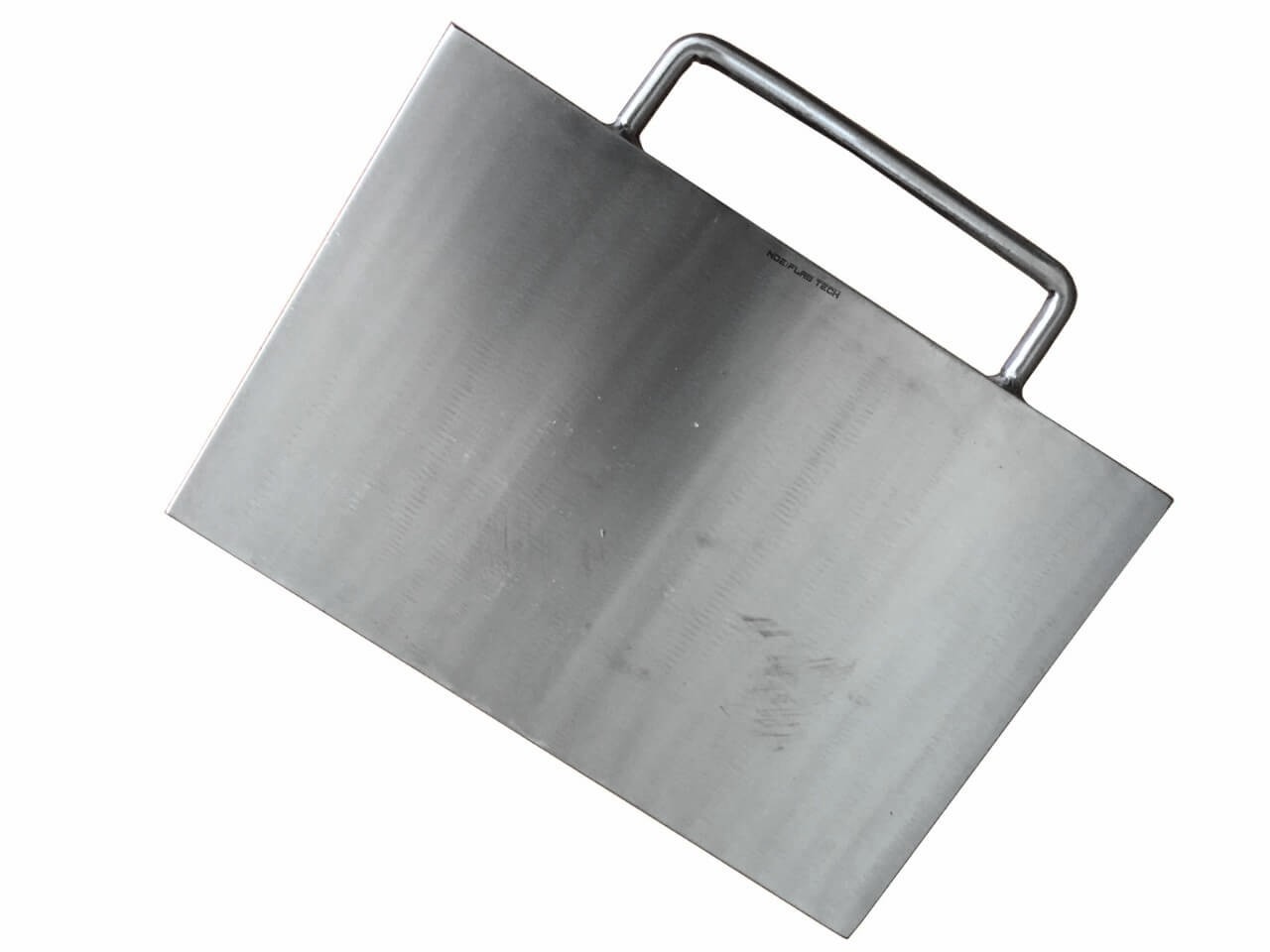

Corrosion Erosion Plate Flaw Specimen • Corrosion, Erosion, UT Thickness Training & Certification Plates. • Corrosion/Erosion and Pitting Specimens Plate. • Some of specimens will have naturally obtained corrosions/erosions recorded depth of the corrosion indications will be based on the deepest spot within the field of corrosion. • The host side of the plate will be covered with a “removable” cover plate.

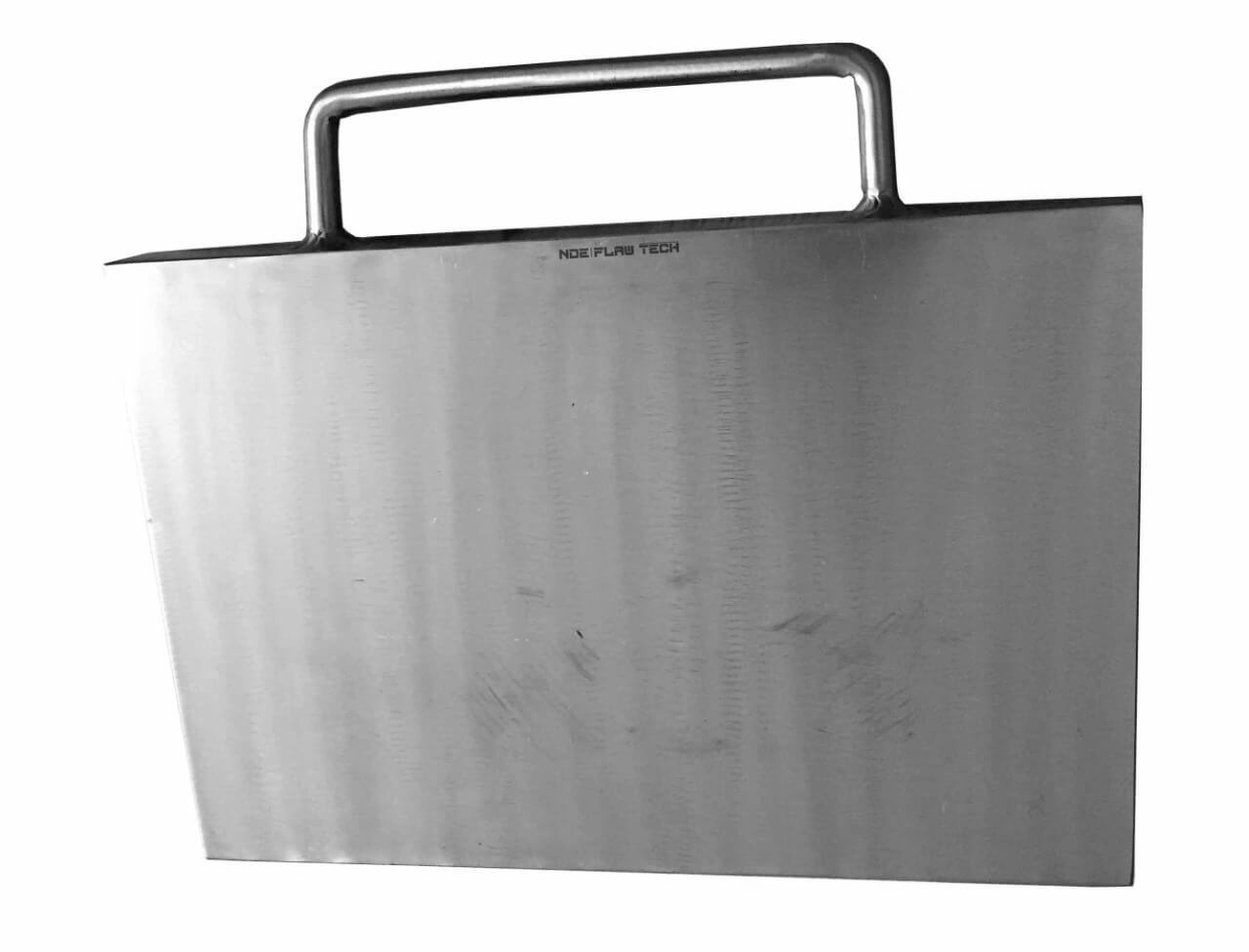

Corrosion Erosion Pitting Plate Specimen • Corrosion, Erosion, UT Thickness Training & Certification Plates. • Corrosion/Erosion and Pitting Specimens Plate.
