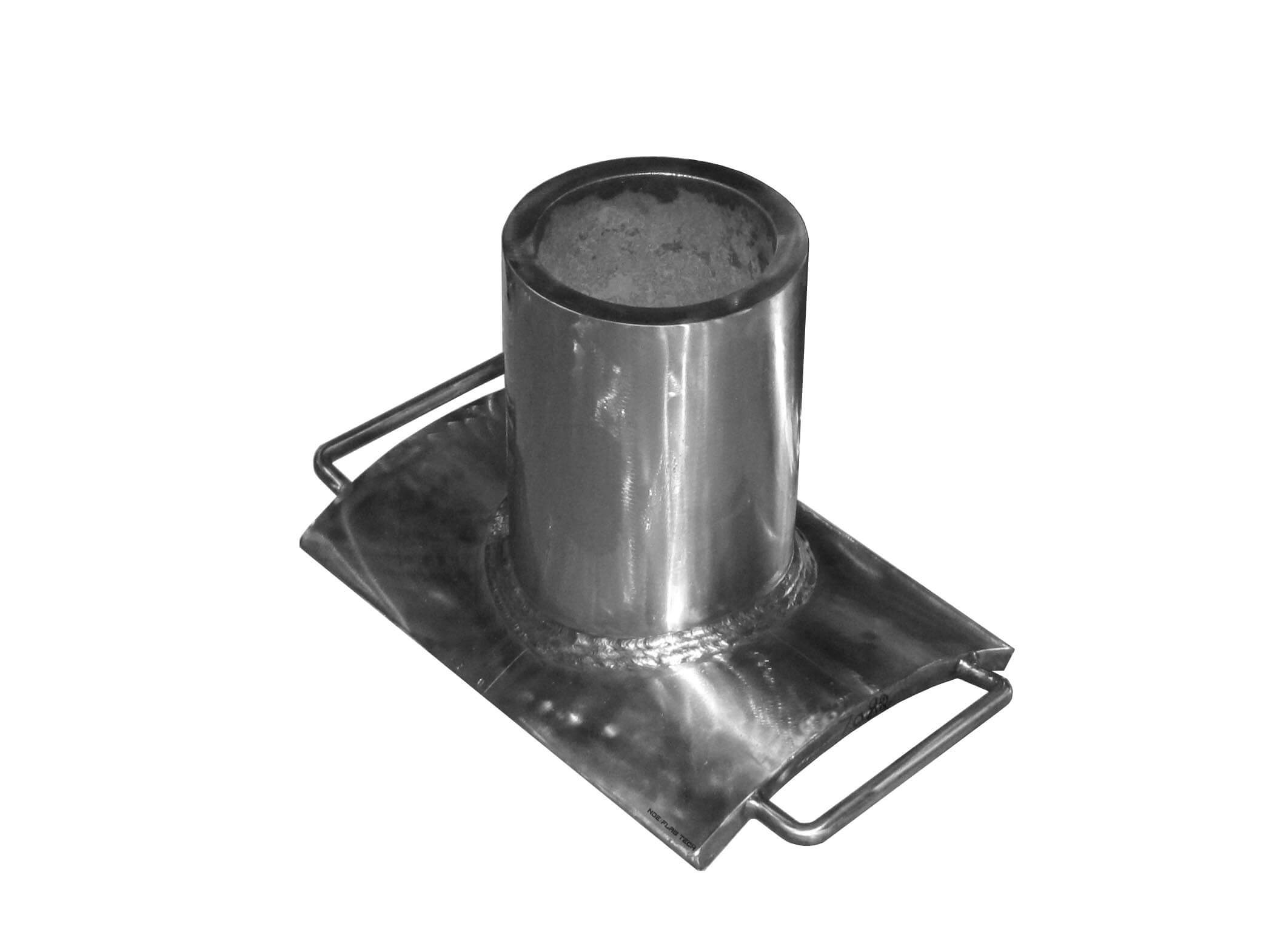

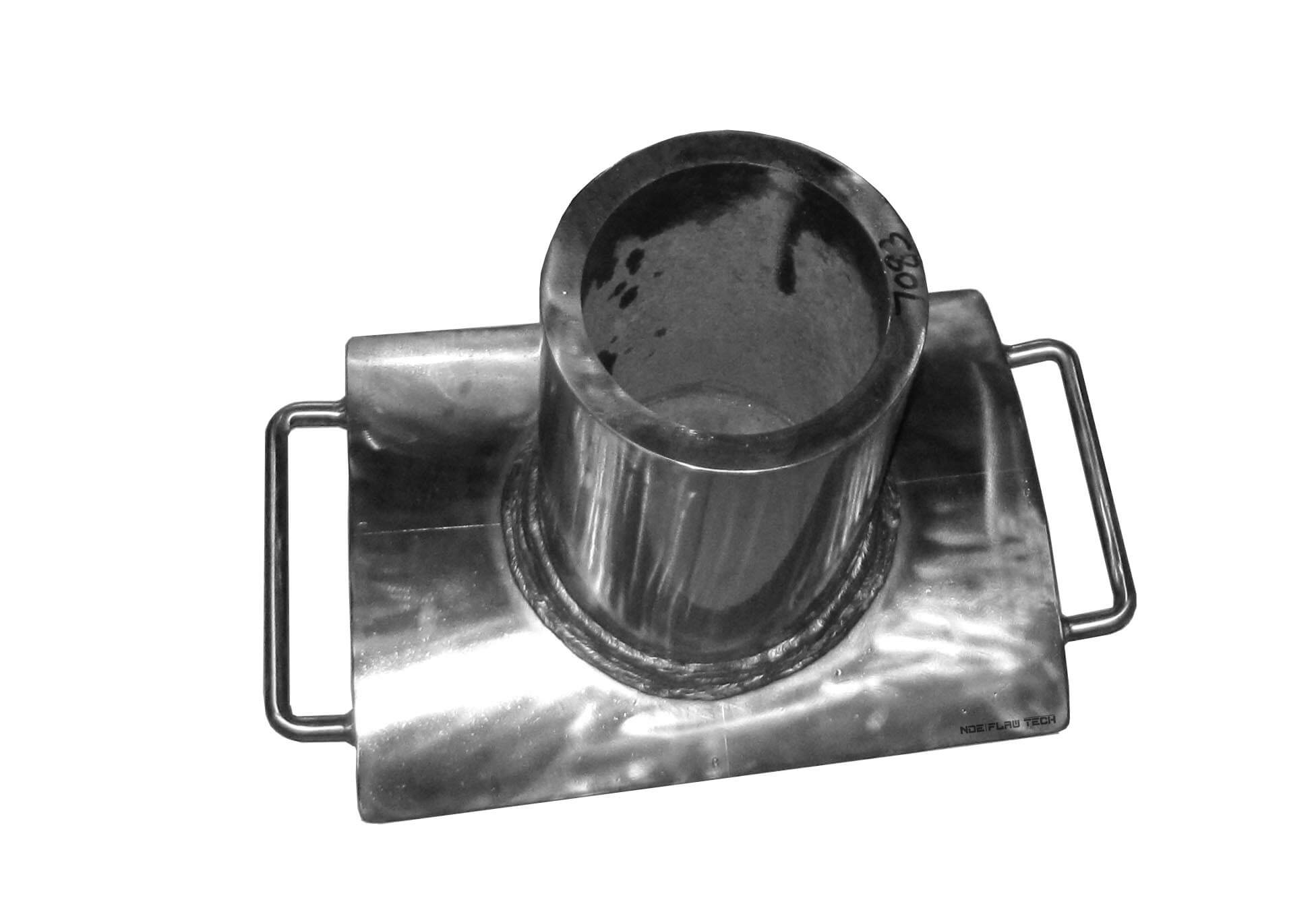

Ø8" Pipe to Nozzle Weld UT Flaw Specimens Set Through Partial Penetration Joint (Inch Version) Carbon Steel

Ø8"Pipe to Nozzle Weld UT Flaw Specimens 0.8” (Set Through Partial Penetration Joint)

Geometry: Pipe to Flange Nozzle Joint with weld length above 24” Main Pipe Segment Ø24” Dia. Branch Ø8” Dia. Thickness 0.8” with (Set Through) Partial Penetration Joint.

Material: Carbon Steel.

Customized Calibration Test Block and Flaw Specimen also available.

Flaws: 3 or 4 per specimen, randomly placed Specimen Tolerance: +/- 0.080"

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.
