6 Wedge Step Calibration Block (Inch Version) 4340 Steel

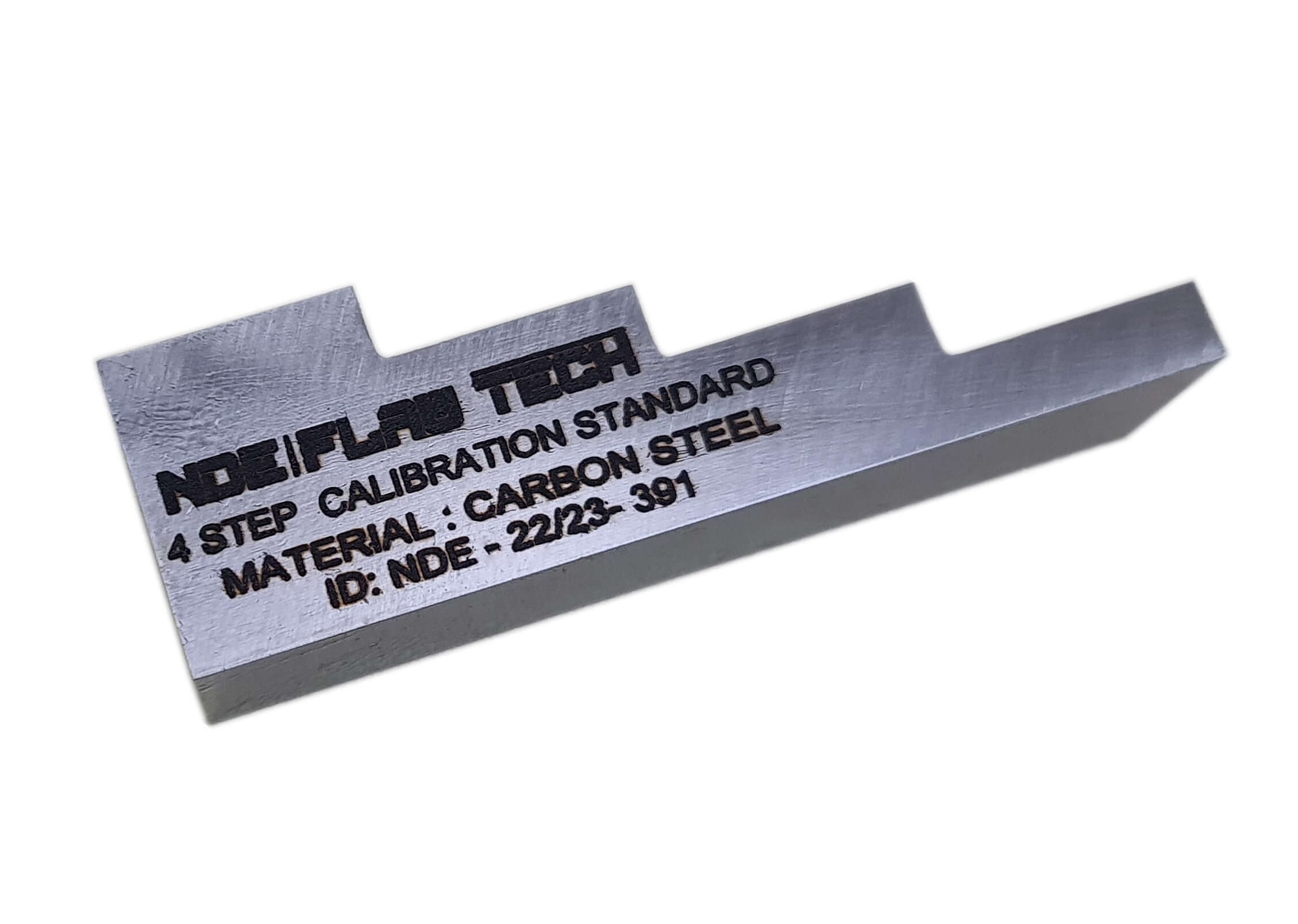

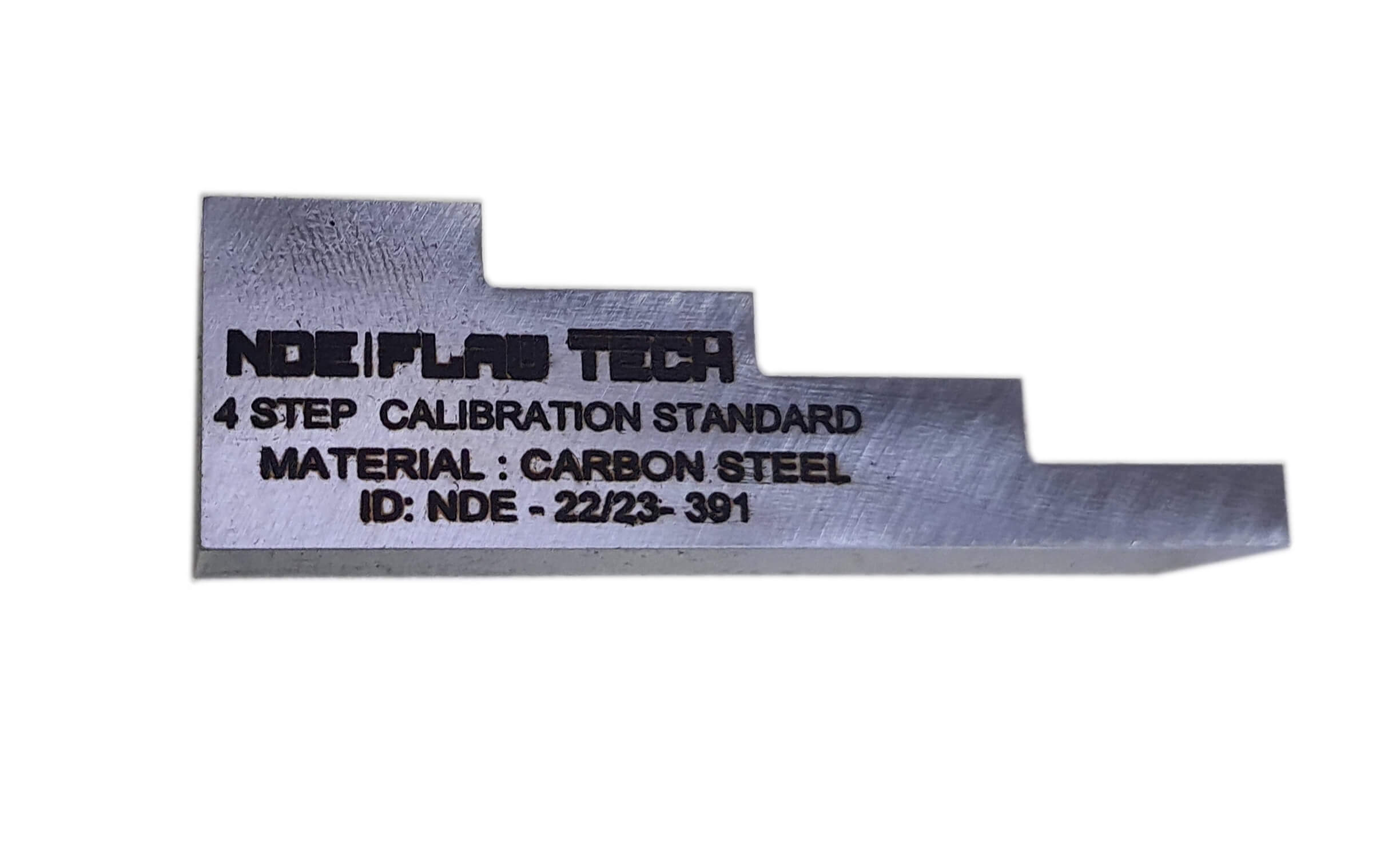

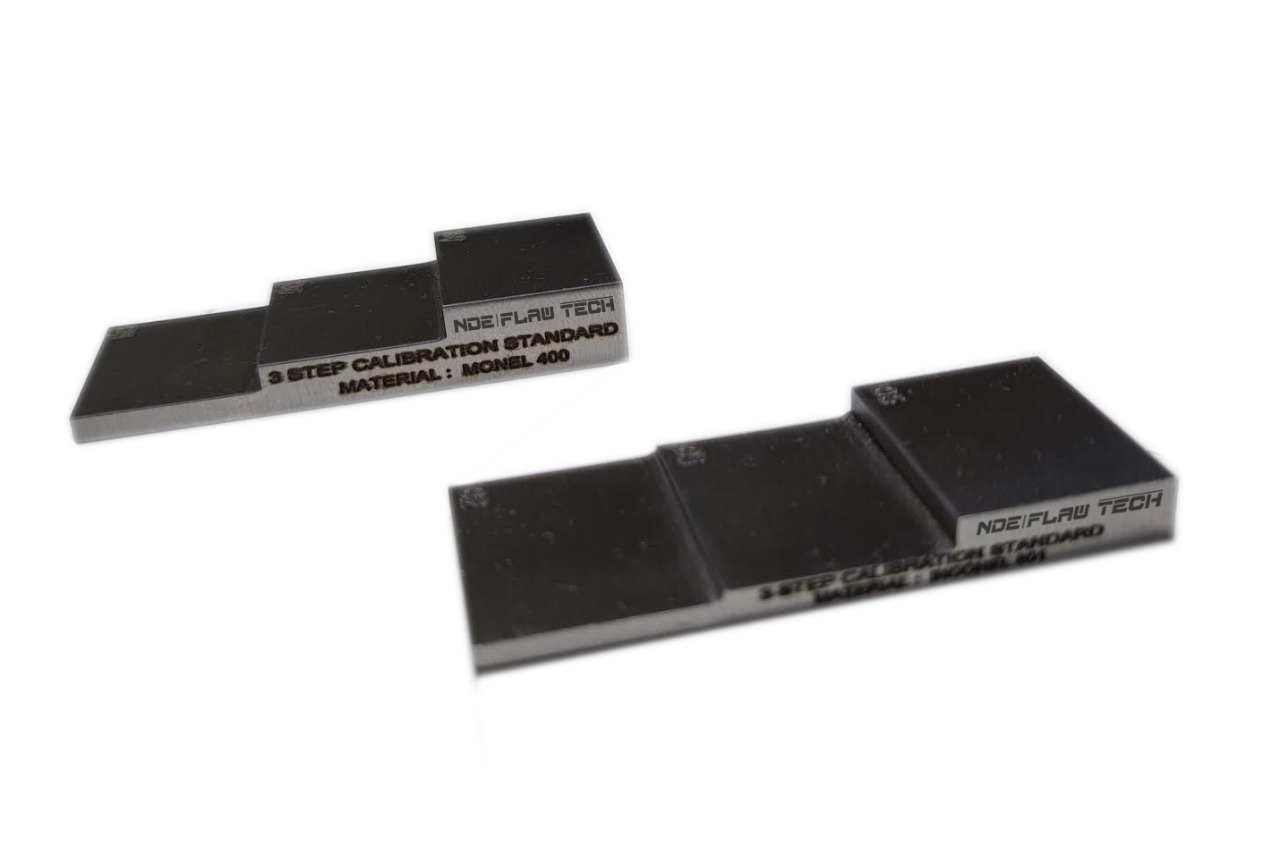

Step and tapered calibration wedges come in a large variety of sizes and configurations. Step wedges are typically manufactured with four or five steps but custom wedge can be obtained with any number of steps. Tapered wedges have a constant taper over the desired thickness range. 6 Step Calibration Block for thickness and linearity calibration 6 Step Calibration Block 0.098" – 0.98".

Dimensions: 6 Step Calibration Block has steps starting at 0.098" to 0.984" in 0.098", 0.197", 0.394", 0.591", 0.787", 0.984" increments.

Note: Customized Step Block also available.

Metric Step Face: 0.8" X 0.8".

Material: 4340 Steel
