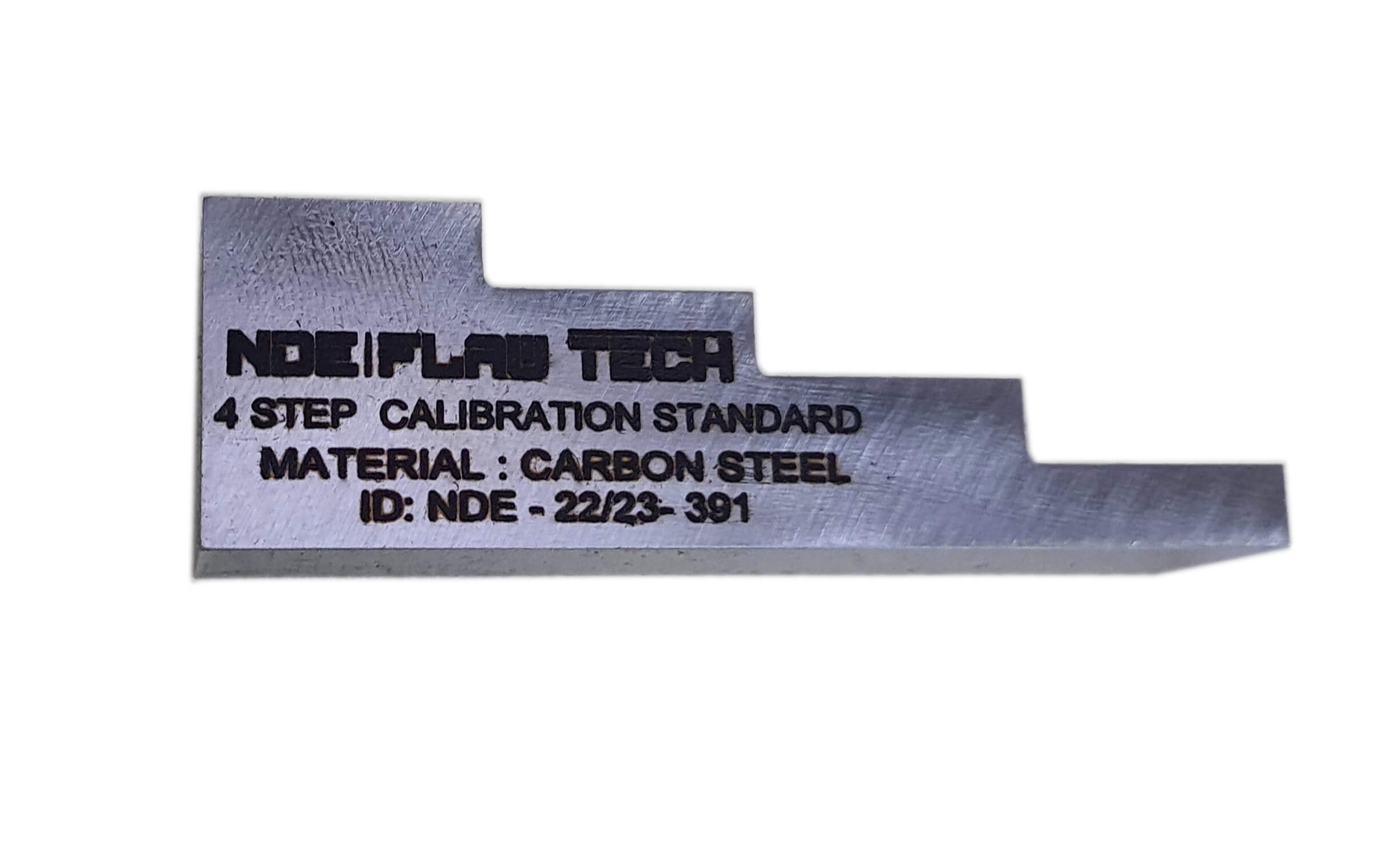

4 Wedge Step Calibration Block (Metric Version) MONAL 800

Step and tapered calibration wedges come in a large variety of sizes and configurations. Step wedges are typically manufactured with four or five steps but custom wedge can be obtained with any number of steps. Tapered wedges have a constant taper over the desired thickness range. 4 Step Calibration Block for thickness and linearity calibration 4 Step Calibration Block 5mm to 20mm.

Dimensions: 4 Step Calibration Block has steps starting at 5mm to 20mm in 5mm, 10mm, 15mm, 20mm increments.

Note: Customized Step Block also available.

Metric Step Face: 20mm x 20mm.

Material: MONAL 800.
