SURFACE EDDY CURRENT FLAWED SPECIMENS KIT (Metric Version) Carbon Steel

SURFACE EDDY CURRENT FLAWED SPECIMENS KIT

Standard NDT ET Flawed Specimens Kit (Eddy Current Testing) For NDT ET Demonstration.

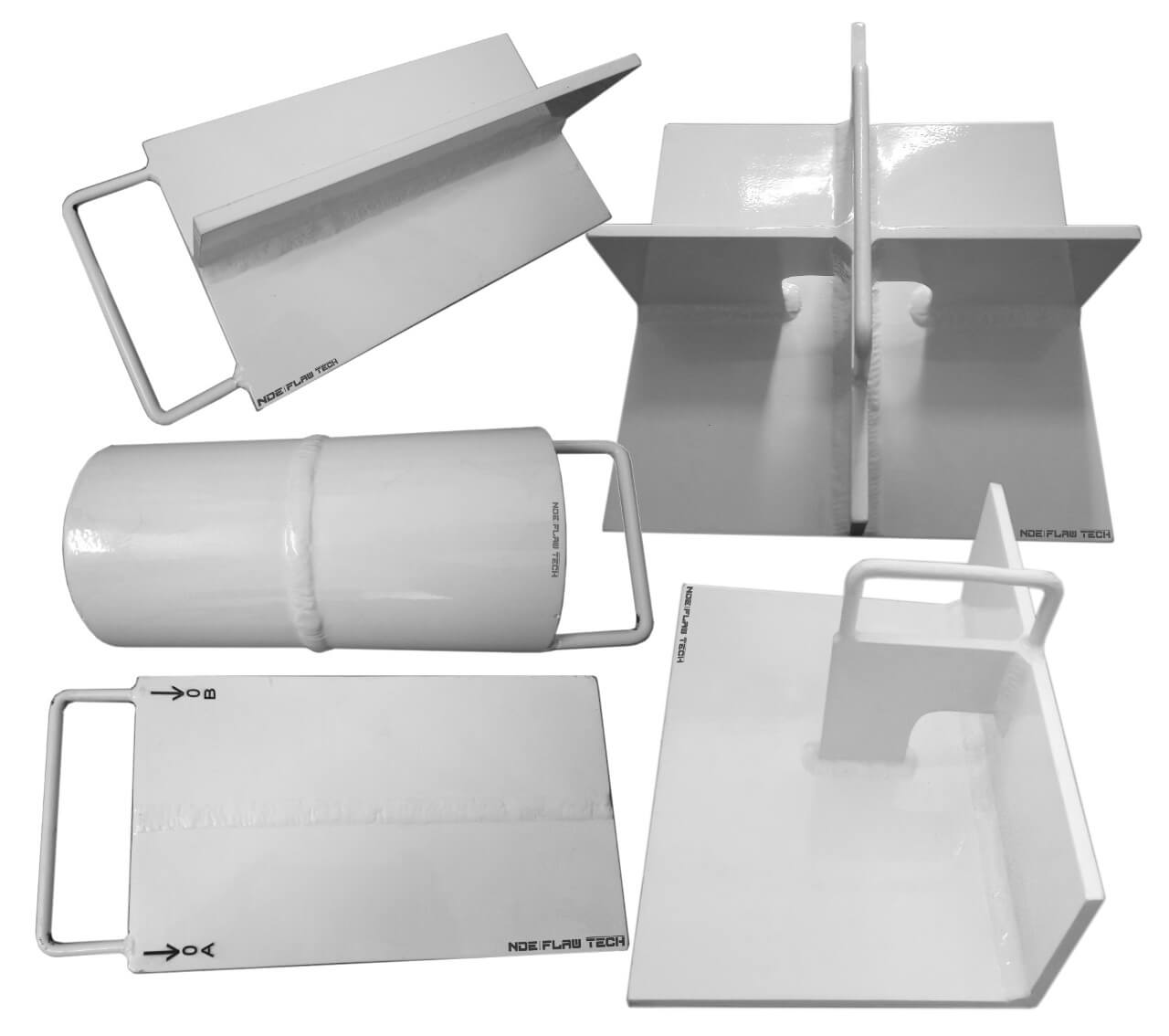

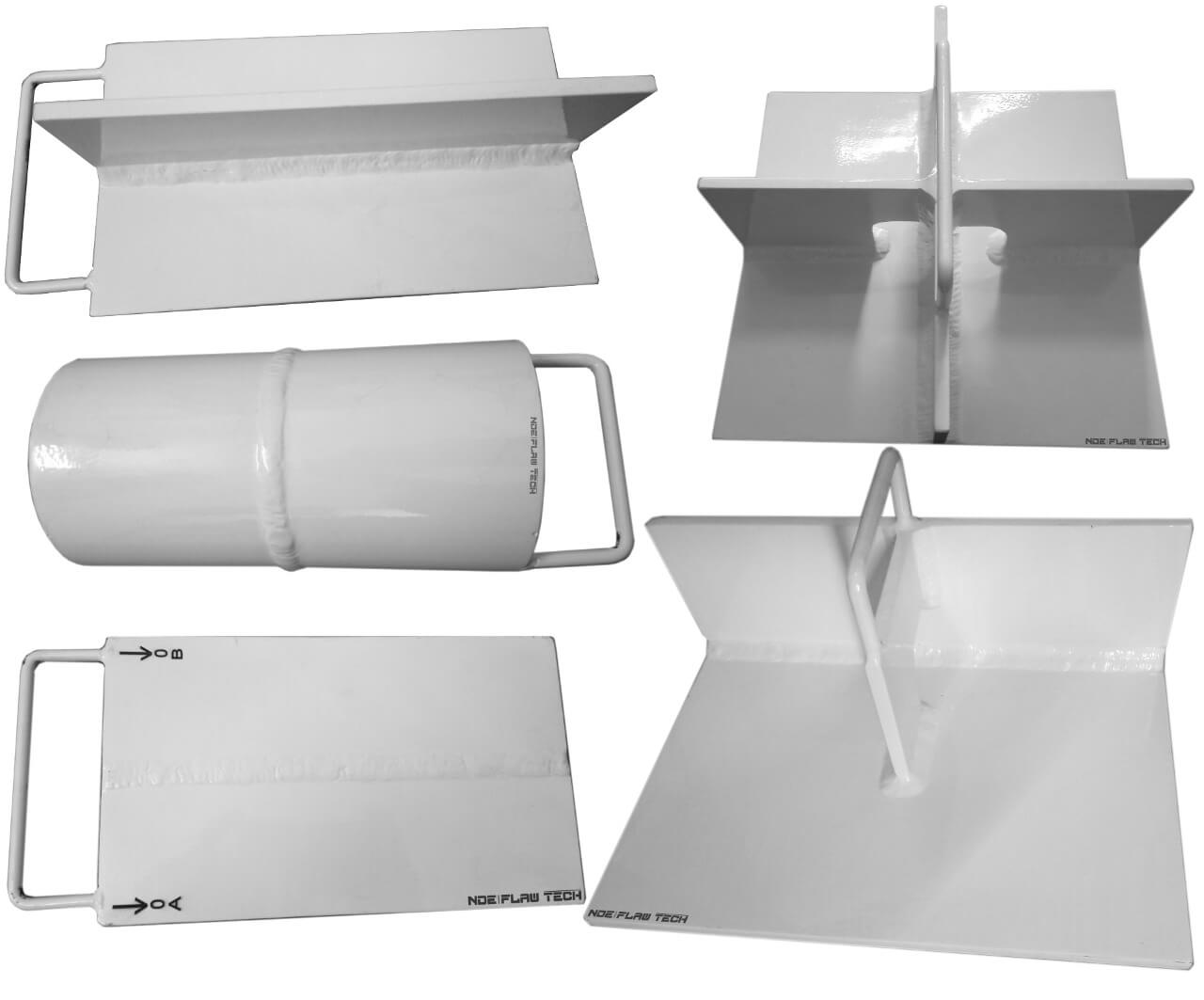

1 Plates, 1 Tee, 1 Pipe 1 Cruciform Type Joint, 1 Semi Cruciform Type Joint 25 Randomly Placed Discontinuities Flaws

(1) Plates: 6mm (T) x 200mm (W) x 250mm (L)

(1) Tee Plate: 6mm (T) x 200mm (W) x 250mm (L) x 150mm (H)

(1) Pipe: Ø100mm Sch 40 (Wall Thickness – 6mm) x 200mm (L)

(1) Cruciform Type Joint contains 3 plate:

1- Plate 300mm (L) x 200mm (W) x 10mm (T)

2- Plate 300mm (L) x 100mm (W) x 100mm (T)

3- Plate 100mm (L) x 100mm (W) x 10mm (T) with 50 radius

(1) Semi Cruciform contains 3 plates: 1- Plate 300mm (L) x 300mm (W) x 10mm (T),

2- Plate 300mm (L) x 100mm (W) x 6mm (T)

Total Kit: 5 specimens 20 total Flaws.

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.

Material: Carbon Steel.

Customized Calibration Test Block and Flaw Specimen also available.
