SURFACE EDDY CURRENT FLAWED SPECIMENS KIT (Inch Version) Carbon Steel

SURFACE EDDY CURRENT FLAWED SPECIMENS KIT

Standard NDT ET Flawed Specimens Kit (Eddy Current Testing) For NDT ET Demonstration.

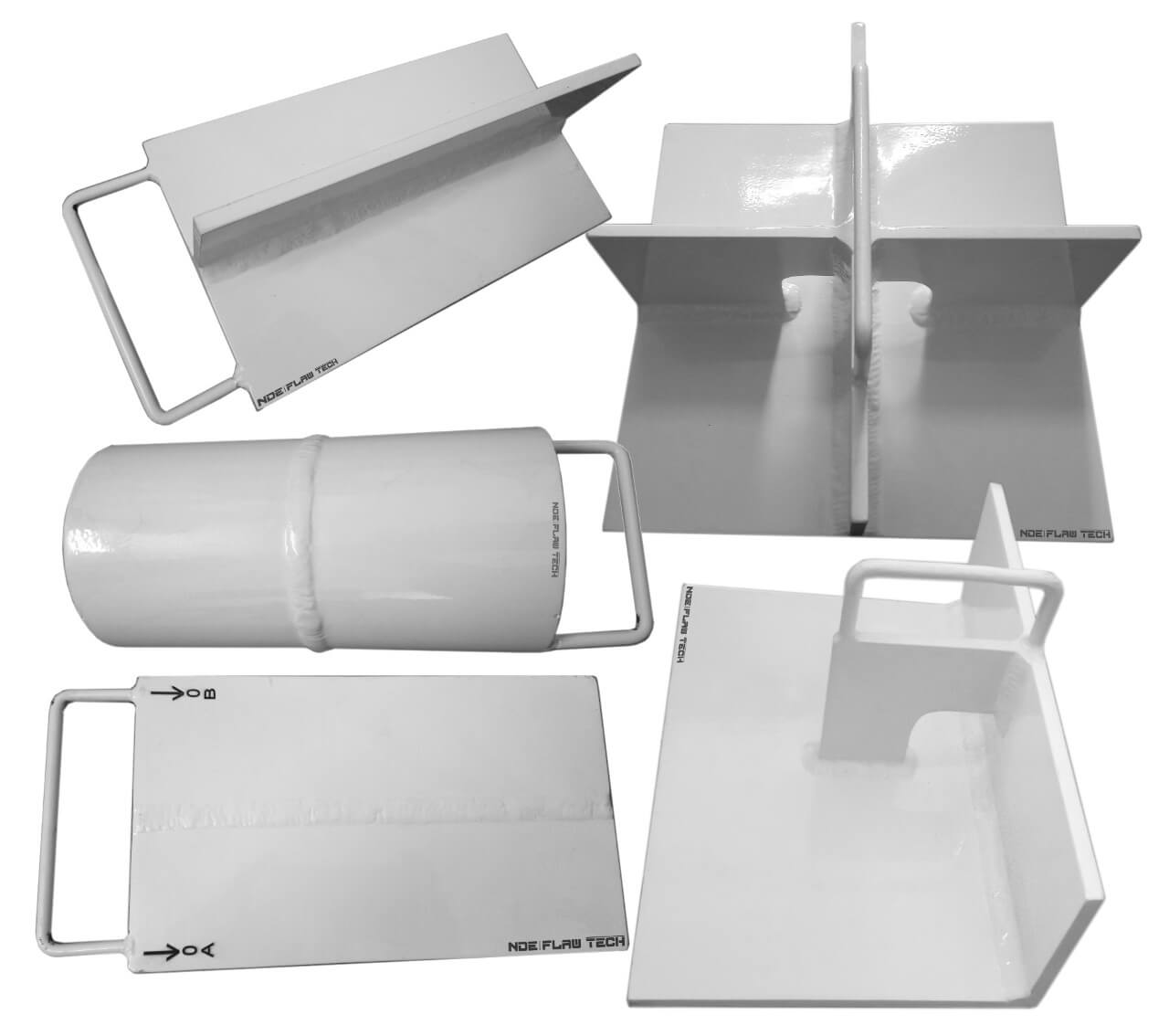

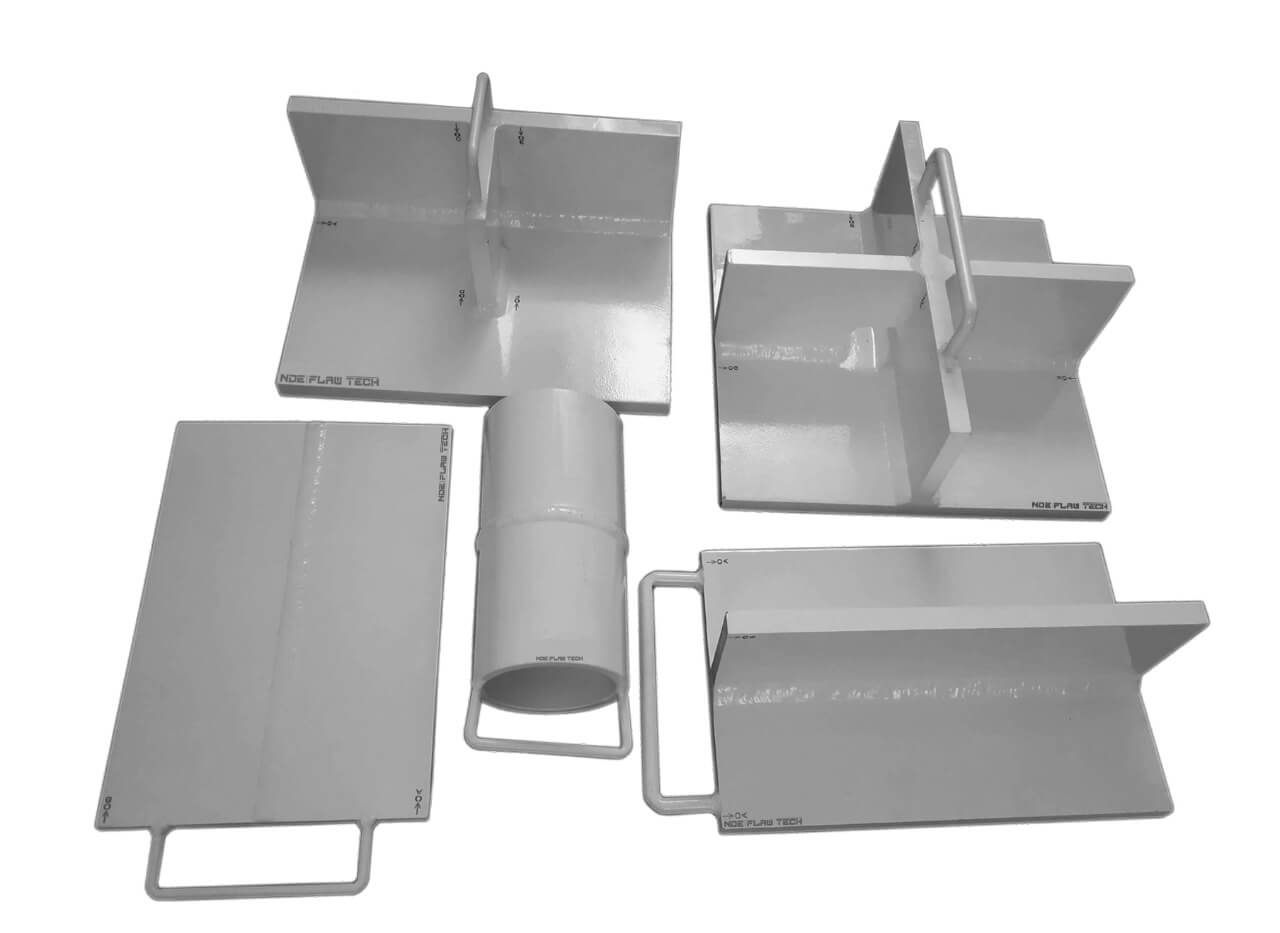

1 Plates, 1 Tee, 1 Pipe 1 Cruciform Type Joint, 1 Semi Cruciform Type Joint 25 Randomly Placed Discontinuities Flaws

         (1) Plates: 0.25” (T) x 8” (W) x 10” (L)

(1) Tee Plate: 0.25” (T) x 8” (W) x 10” (L) x 6” (H)

(1) Pipe: Ø4” Sch 40 (Wall Thickness – 0.25”) x 8” (L)

(1) Cruciform Type Joint contains 3 plate:

         1-Plate 12” L x 8” W x 0.4” T

         2- Plate 12” (L) x 4” (W) x 0.4” (T)

         3- Plate 4” (L) x 4”(W) x 0.4” (T) with 2” radius

(1) Semi Cruciform contains 3 plates: 1- Plate 12” L x 12” W x 0.4” T, 2- Plate 12” (L) x 4” (W) x 0.25”(T)

Total Kit: 5 specimens 20 total Flaws.

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.

Material: Carbon Steel.

Customized Calibration Test Block and Flaw Specimen also available.
