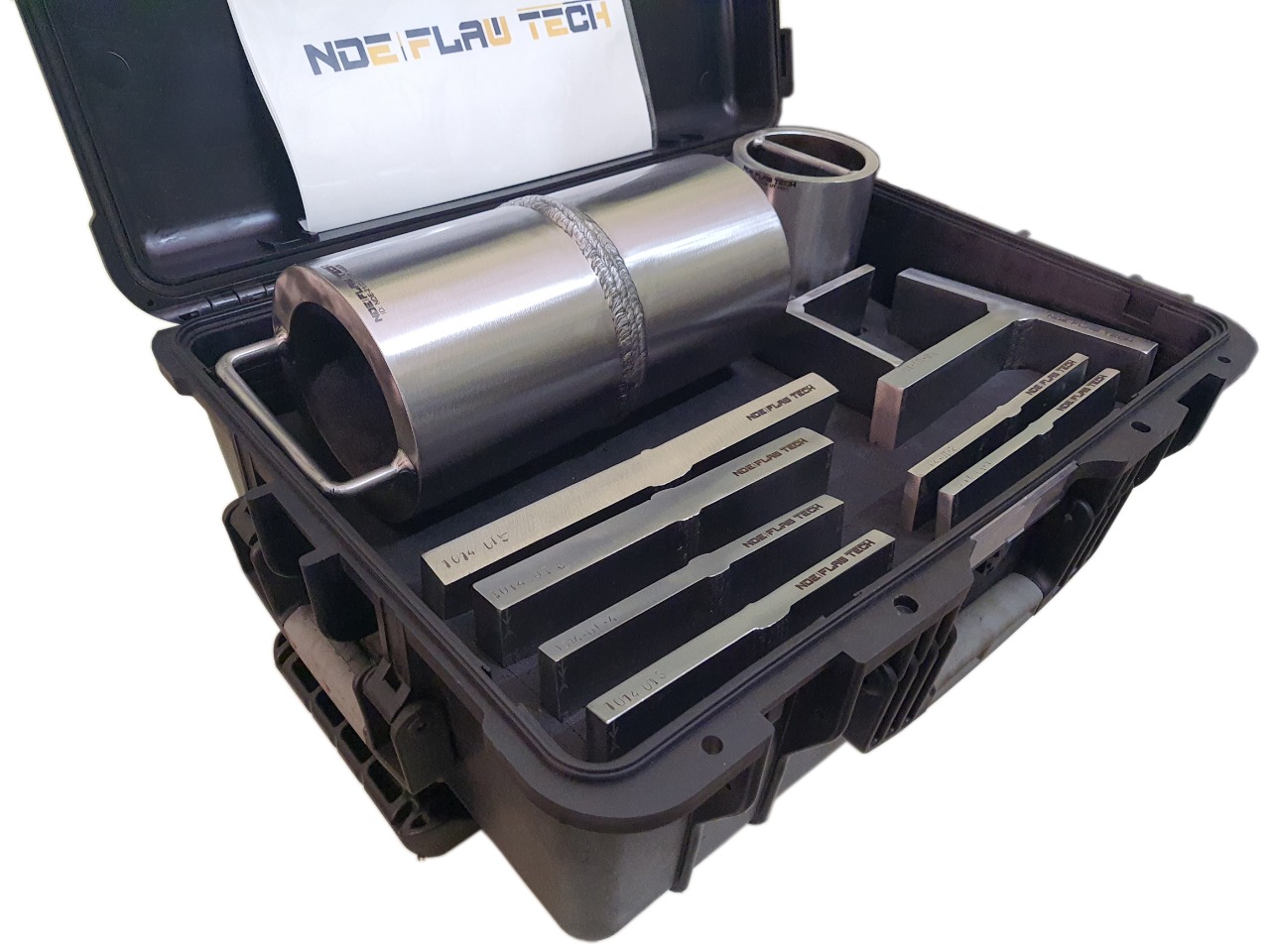

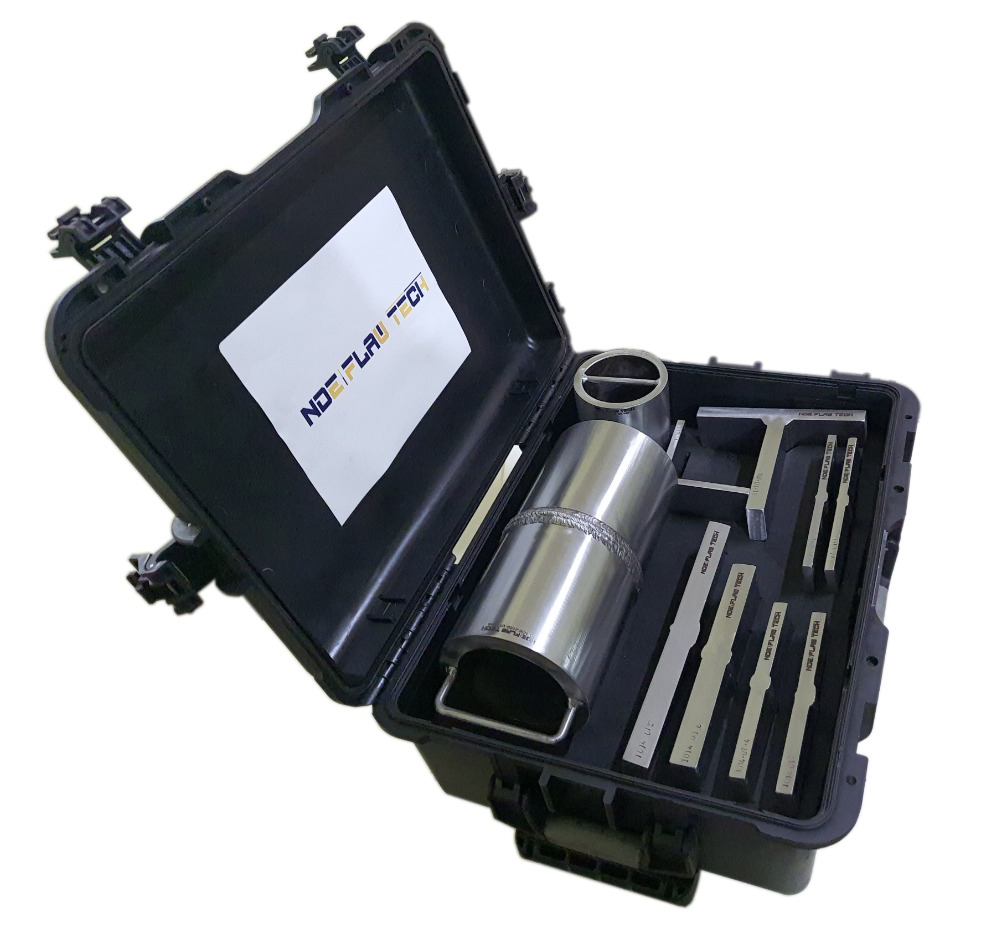

STANDARD ULTRASONIC MINI KIT (Metric Version)

The Ultrasonic Kit Contains 10 Specimens, includes 6 Plates, 2 Pipe & 2 Tee, Each specimen contains 2 “ARTIFICAL FLAWS” Randomly placed

Material – Carbon Steel, For special alloy request by mail.

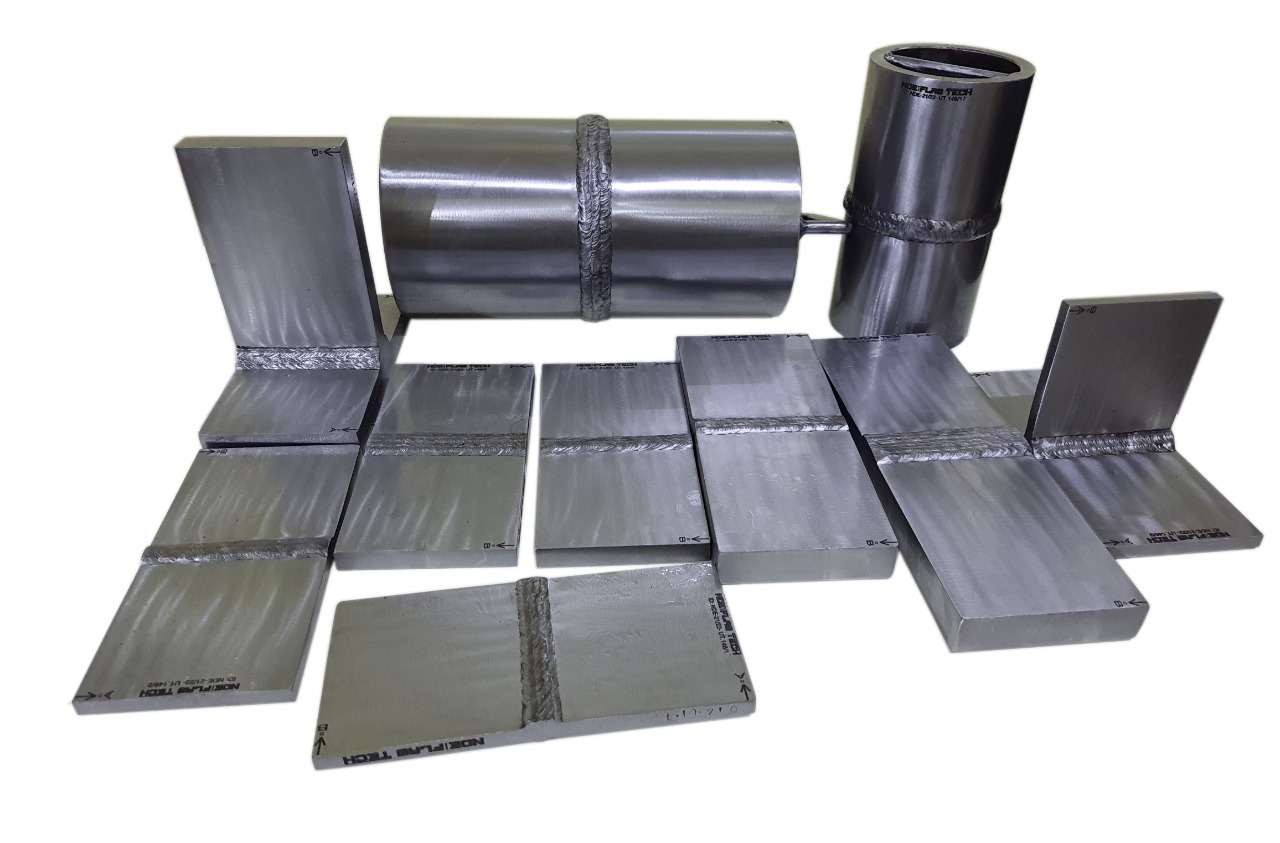

Kit contains 10 Specimens

(2) Single V Plates: 10mm (T) x 200mm (W) x 100mm (L)

(2) Single V Plates: 12mm (T) x 200mm (W) x 100mm (L)

(1) Double V Plates: 20mm (T) x 300mm (W) x 100mm (L)

(1) Double V Plates: 25mm (T) x 300mm (W) x 100mm (L)

(1) Single V Tee Plate: 9.5mm (T) x 200mm (W) x 100mm (L) x 200mm (H)

(1) Double V Tee Plate: 25mm (T) x 200mm (W) x 100mm (L) x 200mm (H)

(1) Single V Pipe: Ø100mm Sch 80 (Wall Thickness – 8.5mm) x 200mm (L)

(1) Single V Pipe: Ø150mm Sch 120 (Wall Thickness – 14mm) x 200mm (L)

2 Flaws in each specimen total 20 flaws

Document package includes Certificate of Conformance, Drawing and Inspection Report.
