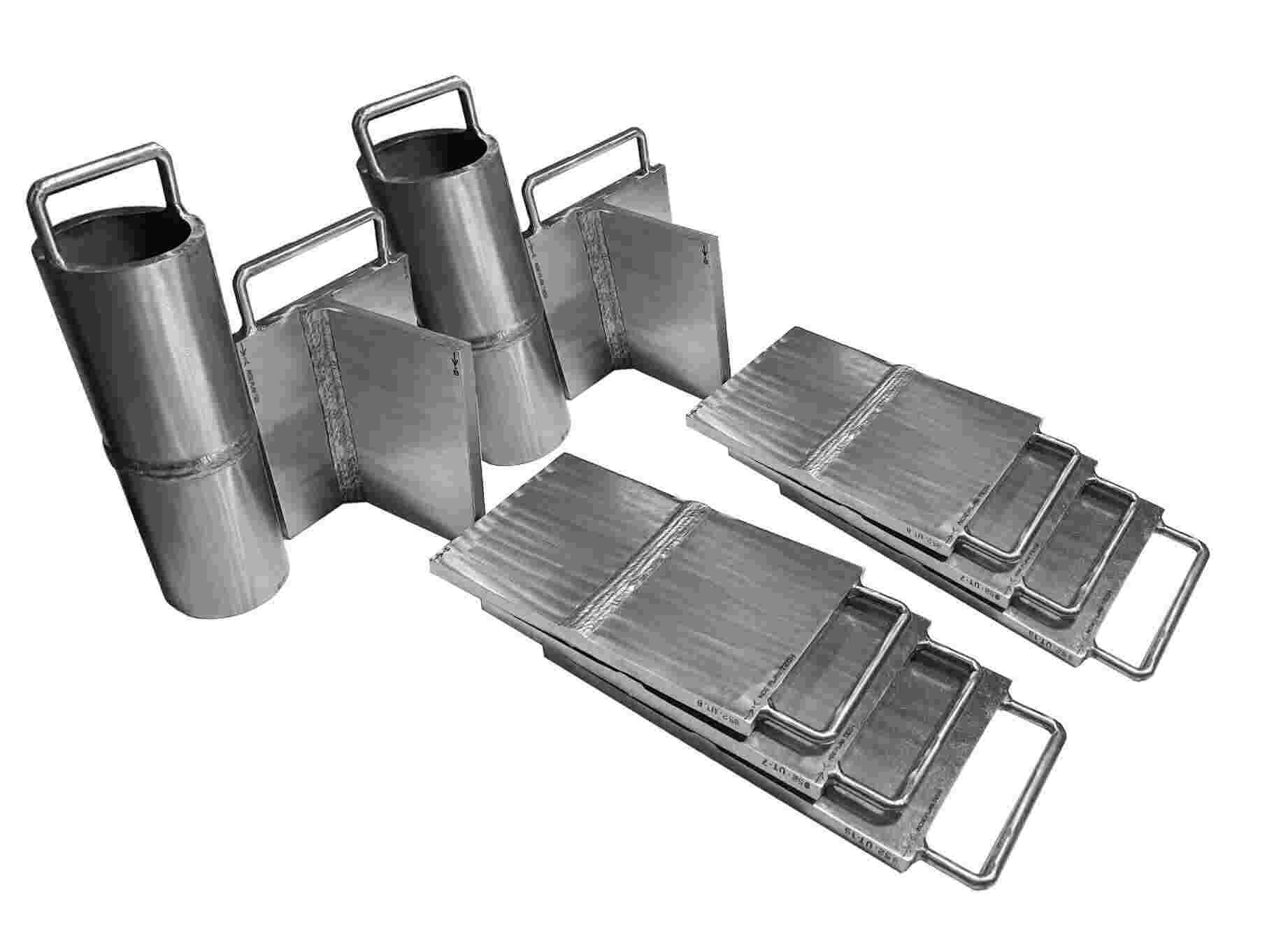

STANDARD RADIOGRAPHIC KIT (Metric Version)

The Radiographic Kit Contains 10 Specimens, includes 6 Plates, 2 Pipe & 2 Tee, Each specimen contains 3 “ARTIFICAL FLAWS” Randomly placed

Material – Carbon Steel, For special alloy request by mail.

Kit contains 10 Specimens

(3) Single V Plates: 9.5mm (T) x 300mm (W) x 250mm (L)

(3) Double V Plates: 20mm (T) x 300mm (W) x 250mm (L)

(1) Single V Tee Plate: 9.5mm (T) x 250mm (W) x 250mm (L) x 150mm (H)

(1) Double V Tee Plate: 20mm (T) x 250mm (W) x 250mm (L) x 200mm (H)

        (1) Single V Pipe: Ø114mm Sch 80 (Wall Thickness – 8.5mm) x 250mm (L)

(1) Single V Pipe: Ø219mm Sch 120 (Wall Thickness – 18mm) x 25S0mm (L)

3 Flaws in each specimen total 30 flaws

Document package includes Certificate of Conformance, Drawing and Inspection Report.
