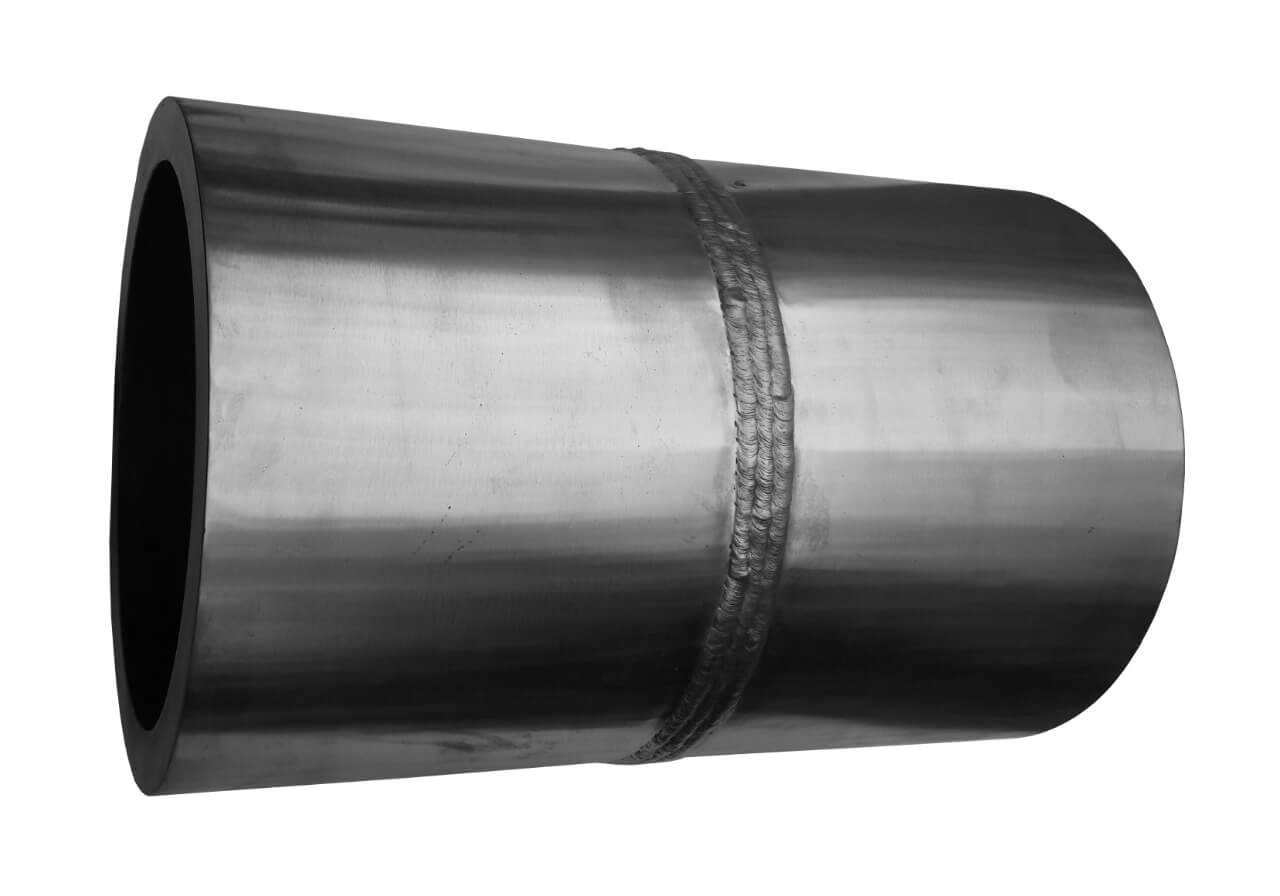

PAUT and TOFD Pipe to Pipe Weld Joint Flawed Specimen 16" Dia Inch Version Carbon Steel

PAUT and TOFD Pipe to Pipe Weld Joint Flawed Specimen 16" Dia

Time-of-flight diffraction ultrasonic (TOFD)-Weld Joint Flawed Specimen 16" Dia- Phased Array Ultrasonic Testing (PAUT)

Geometry: PAUT And TOFD Pipe Butt Weld Joint 16" Dia Flawed Specimens Pipe to Pipe Butt Weld Joint with Pipe 16" Dia And 10” Wide on Either Side of The Weld thickness range >1” to 2” (Carbon Steel)

Material: Carbon Steel

Flaws: 3 or 4 per specimen, randomly placed Specimen Tolerance: +/- 0.080"

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.

Customized Calibration Test Block and Flaw Specimen also available.
