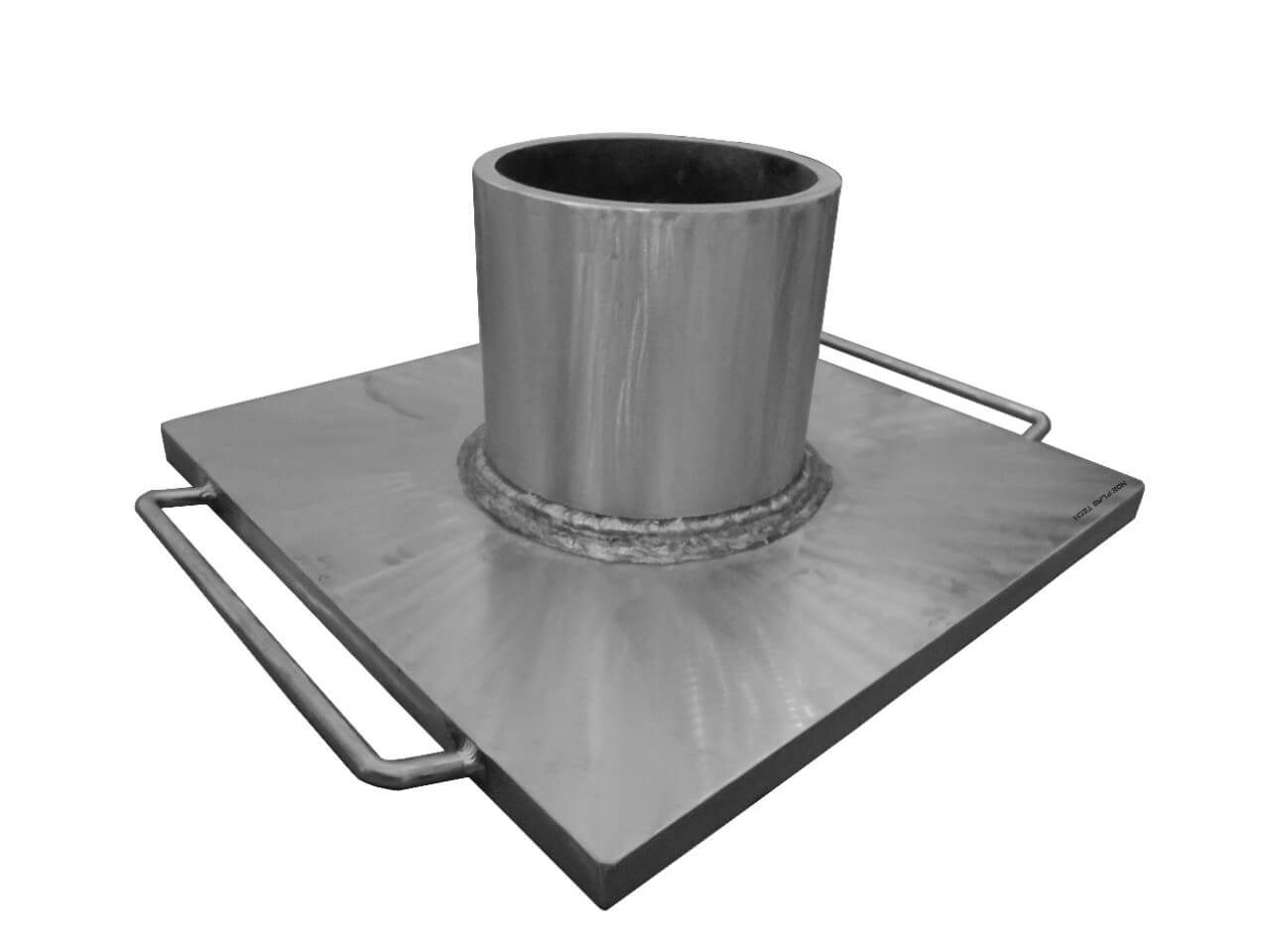

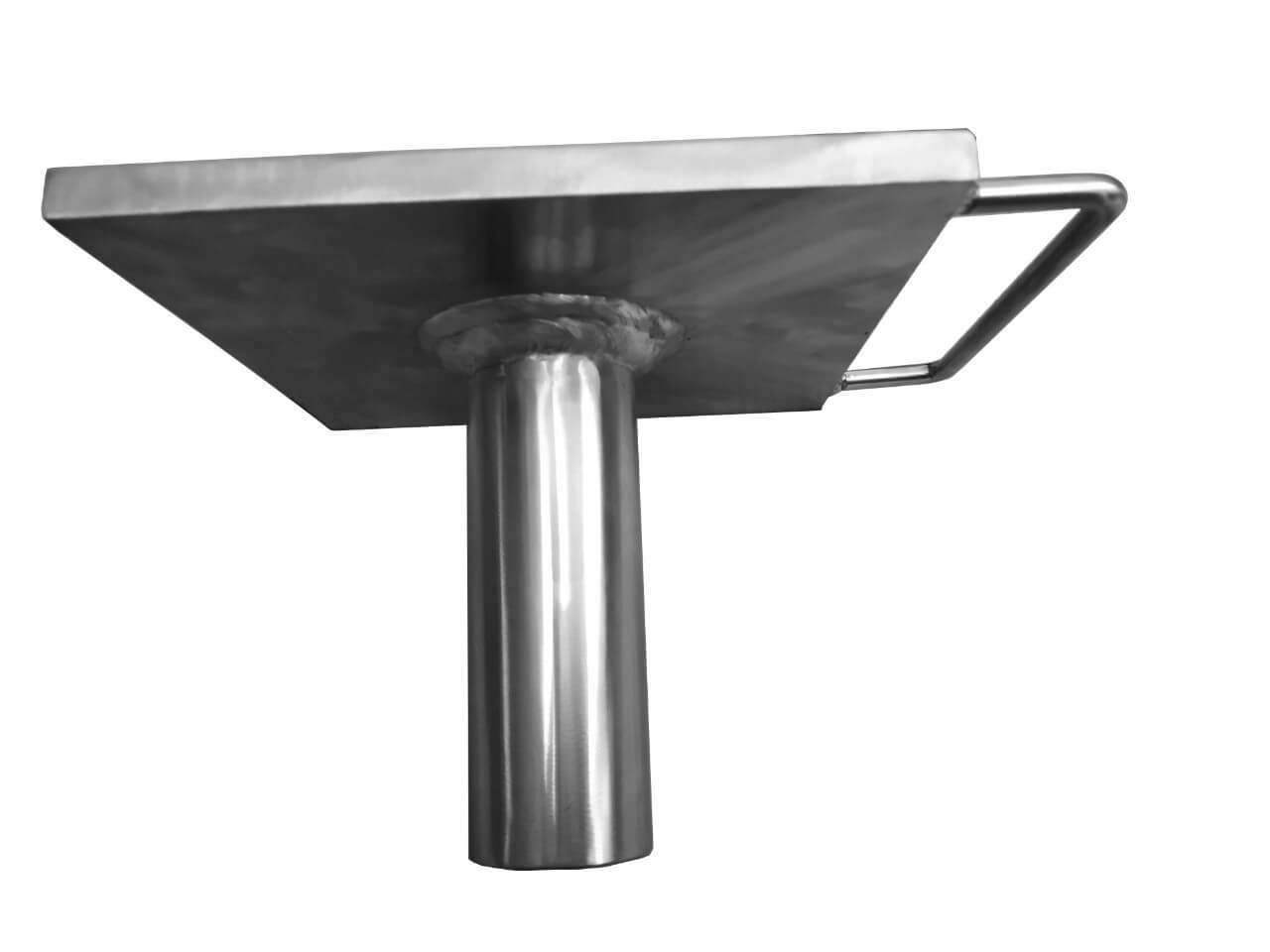

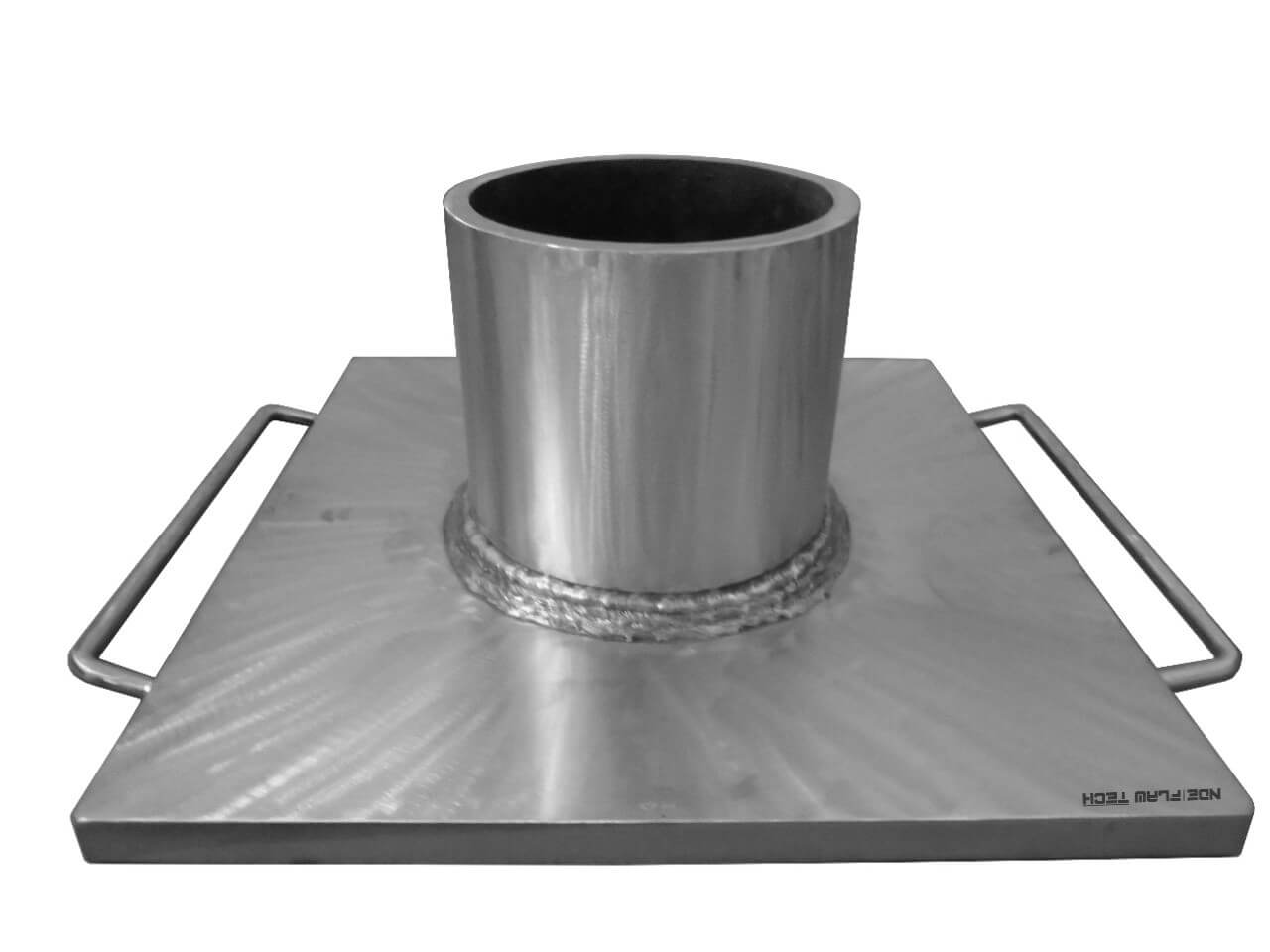

Nozzle to Plate Weld Ultrasonic Test Practical Exam Flaw Specimen (Metric Version) Carbon Steel

Nozzle to Plate Weld Ultrasonic Test Practical Exam Flaw Specimen

Nozzle to Plate Weld Ultrasonic Practical Exam flawed specimens.

Geometry: 60mm Sch160 (8.5 wall) x 200mm (L) pipe to 9.5mm (T) x 200mm (W) x 200mm (L) Plate.

Flaws: 3, randomly placed Standard Tolerance: +/-4mm.

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.

Material: Carbon Steel.

Customized Calibration Test Block and Flaw Specimen also available.
