Multi-Method Flaw specimens

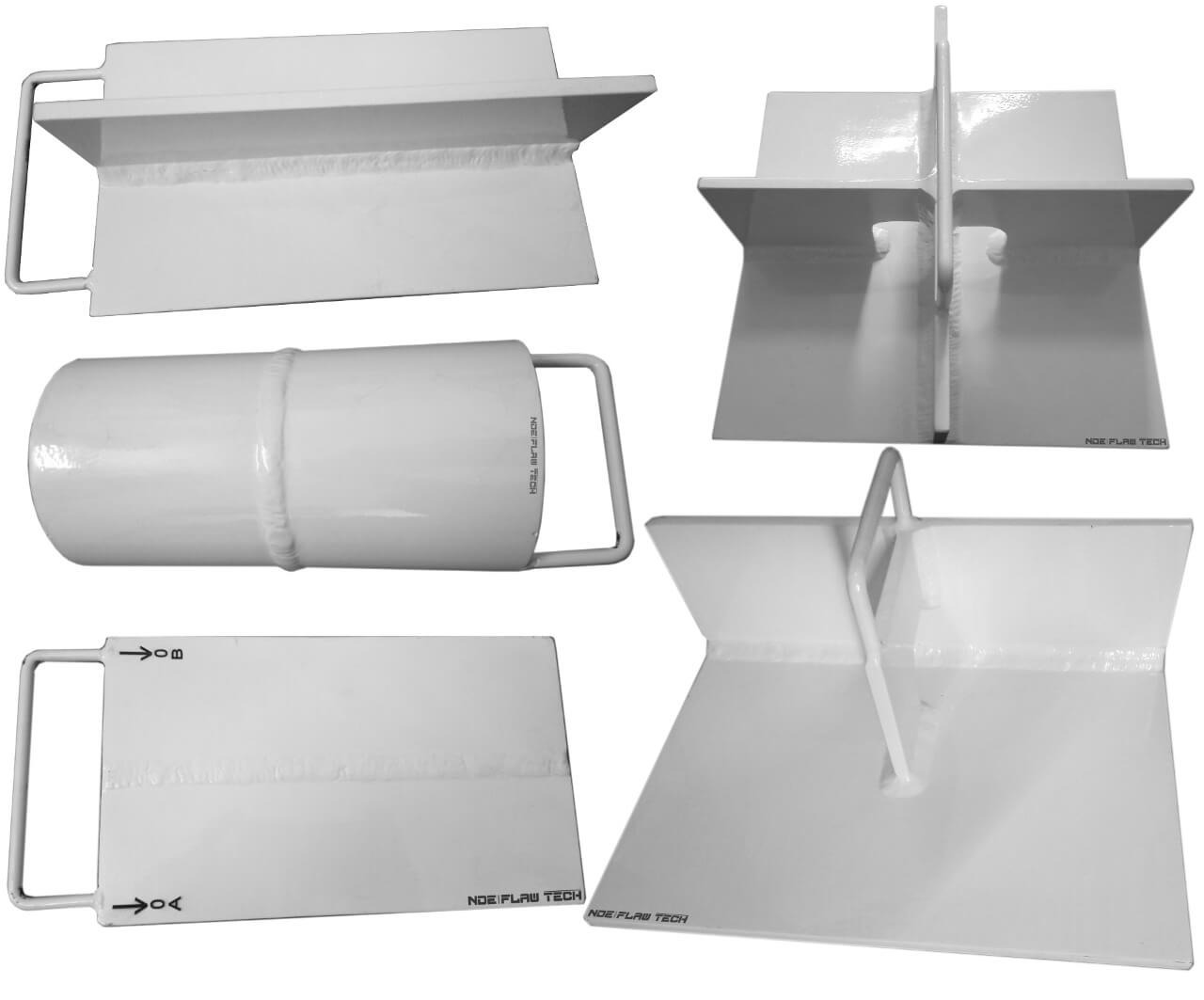

SURFACE EDDY CURRENT FLAWED SPECIMENS KIT

SURFACE EDDY CURRENT FLAWED SPECIMENS KIT Standard NDT ET Flawed Specimens Kit (Eddy Current Testing) For NDT ET Demonstration. 1 Plates, 1 Tee, 1 Pipe 1 Cruciform Type Joint, 1 Semi Cruciform Type Joint 25 Randomly Placed Discontinuities Flaws Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.

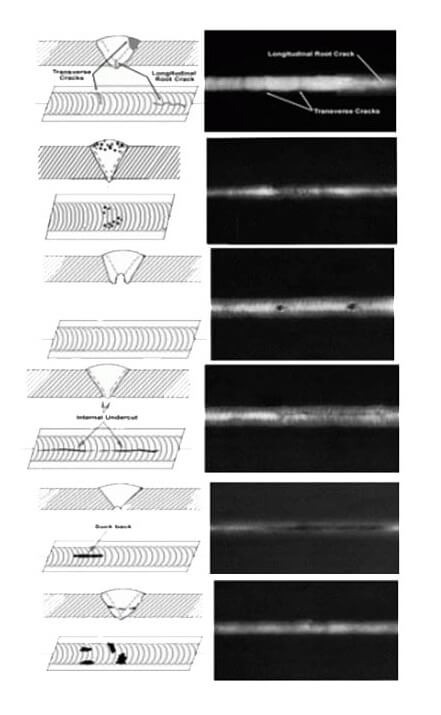

NDT Standard Radiographic Film Interpretation Reference Set

NDT Standard Radiographic Film Interpretation Reference Set NDT Standard Radiographic Film Interpretation Reference Set RTFI NDT Standard Radiographic Film Interpretation Reference Set (RTFI) For NDT RTFI Demonstration. Film Set Contains: 16 Radiographs of 25 Flaws plus 6 Processing Defects. Radiographs are of 10 carbon steel specimens as follows: (4) Plates @ 0.375"T (3) Plates @ 0.625"T (1) Tee @ 0.375"T (2) Pipe @ 4" Sch80 (0.337" wall).

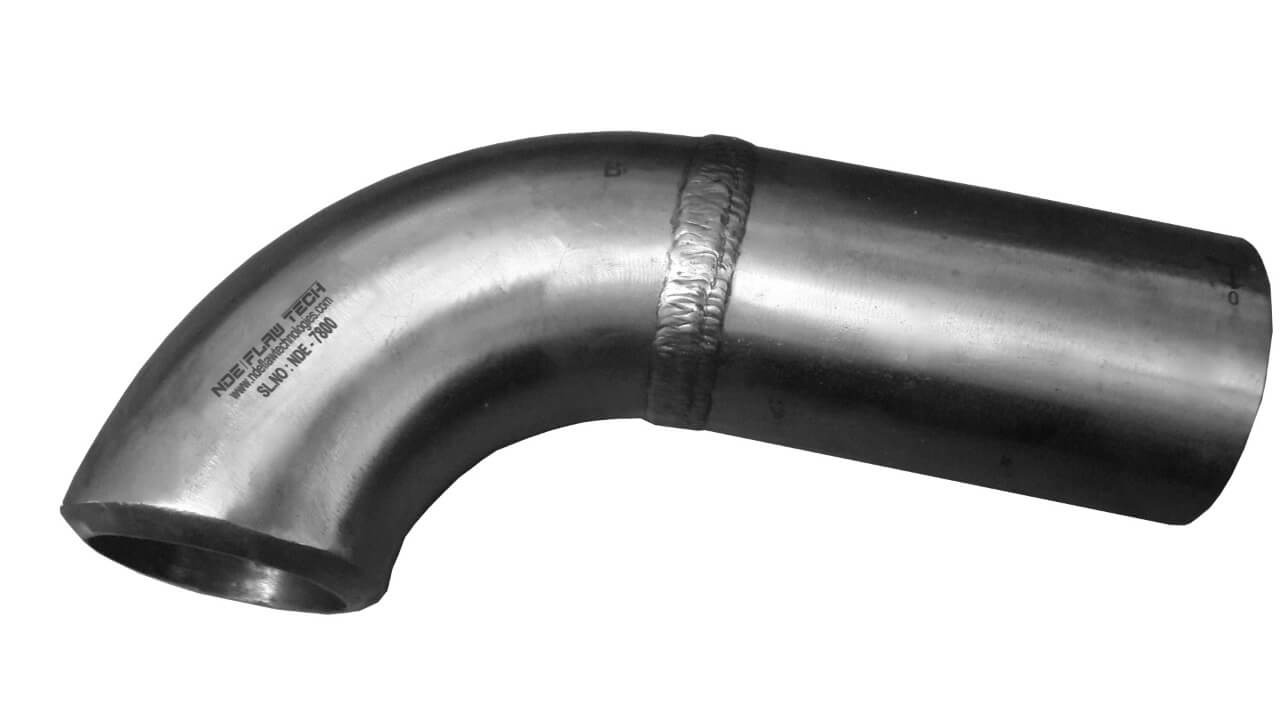

90° Elbow to Pipe Ultrasonic Test Practical Exam Flaw Specimen

90° Elbow to Pipe Ultrasonic Test Practical Exam Flaw Specimen Flaws: 3, randomly placed Standard Tolerance: +/-0.150" (4mm). Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets. Customized Calibration Test Block and Flaw Specimen also available.

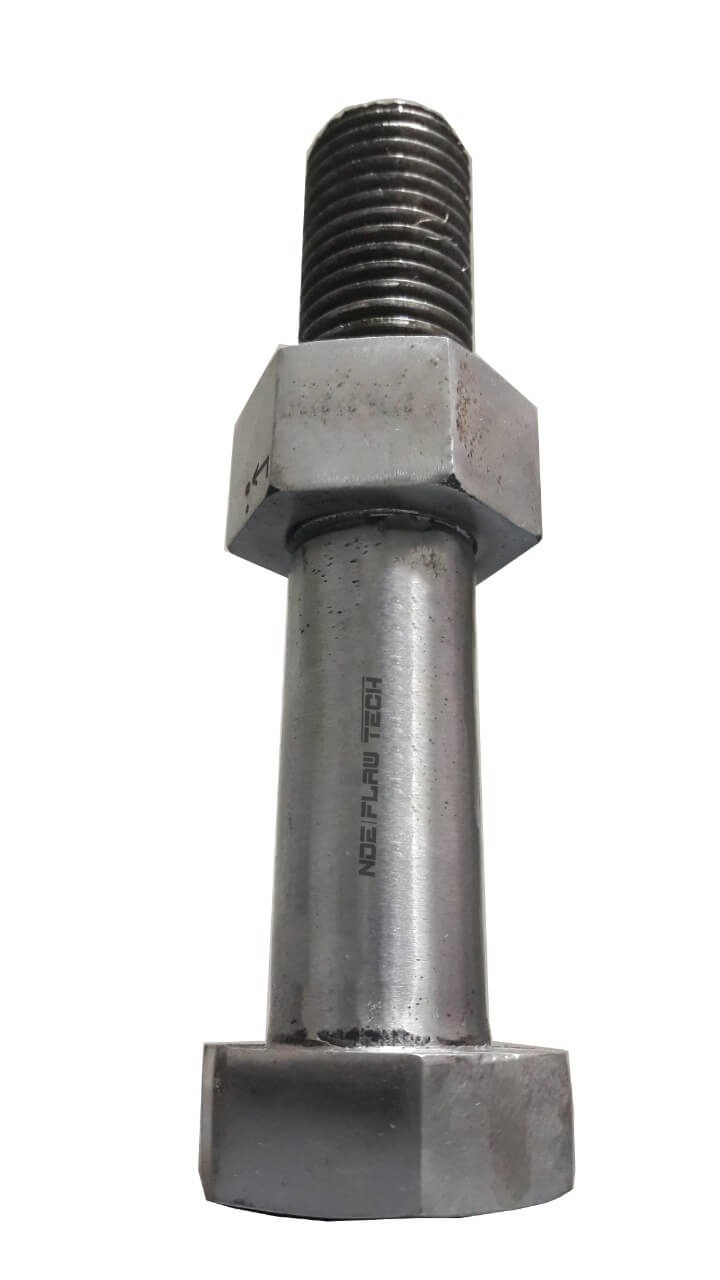

Bolt Nut MT and PT Exam Flaw Specimen

Bolt Nut MT and PT Exam Flaw Specimen Bolt Nut Magnetic Particle and Liquid Penetrant Exam Flawed Specimens. Geometry: 1.25"OD x 6" long. Flaws: 3, randomly placed Standard Tolerance: +/-0.150" (4mm). Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.

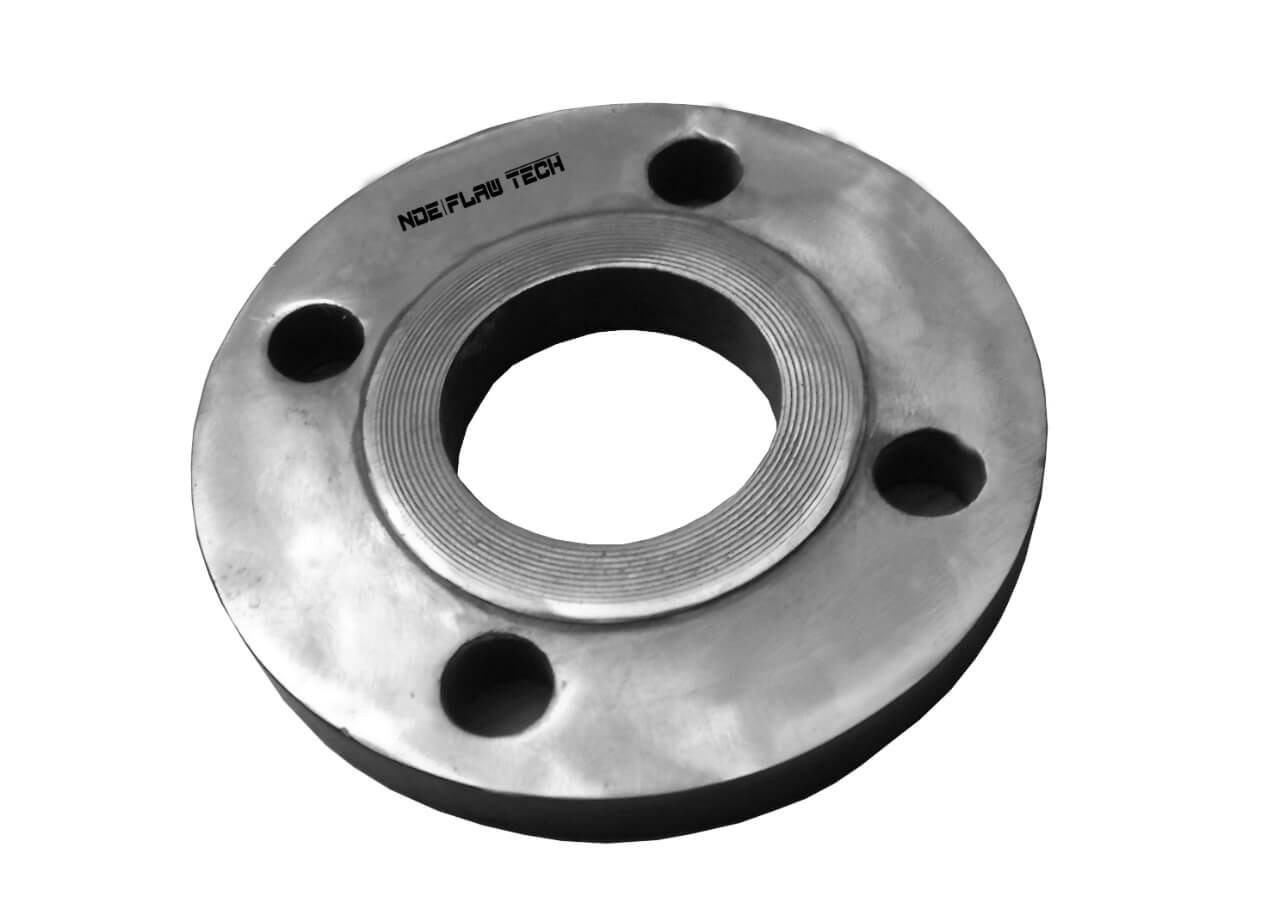

Forged Pipe Flange MT and PT Exam Flawed Specimen

Forged Pipe Flange MT and PT Exam Flawed Specimen Forged Pipe Flange Magnetic Particle and Liquid Penetrant Exam Flawed Specimens. Geometry: 6"OD x 0.75"T. Flaws: 3, randomly placed Standard Tolerance: +/-0.150" (4mm). Documentation: NDT Verification Reports,C of C, CAD Drawings and Test Sheets.

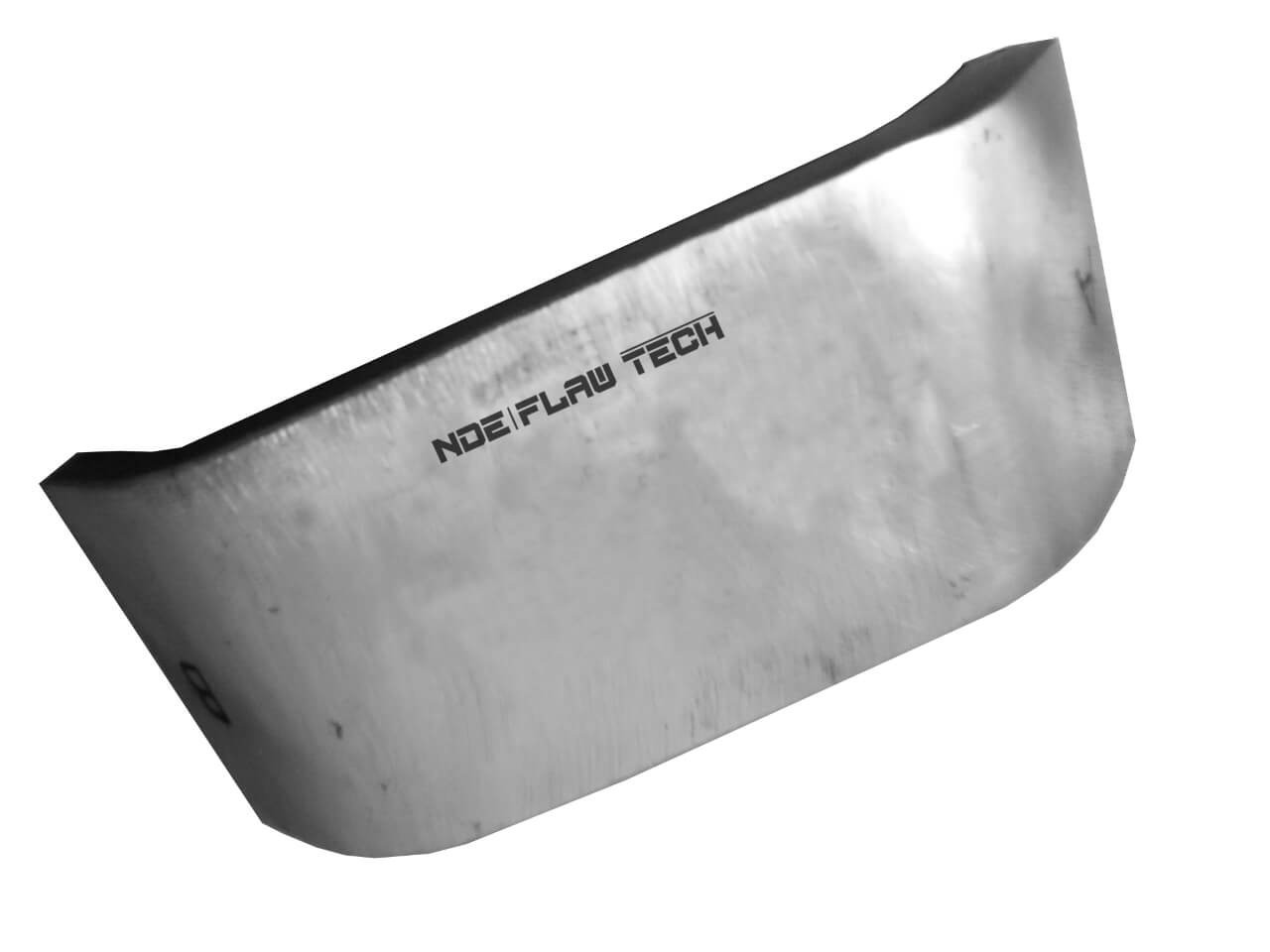

Formed Metal Plate MT and PT Exam Flawed Specimens

Formed Metal Plate MT and PT Exam Flawed Specimens Formed Metal Plate Magnetic Particle and Liquid Penetrant Exam flawed specimens. Geometry: 0.25" x 4" Plate. Flaws: 3, randomly placed Standard Tolerance: +/-0.150" (4mm). Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.

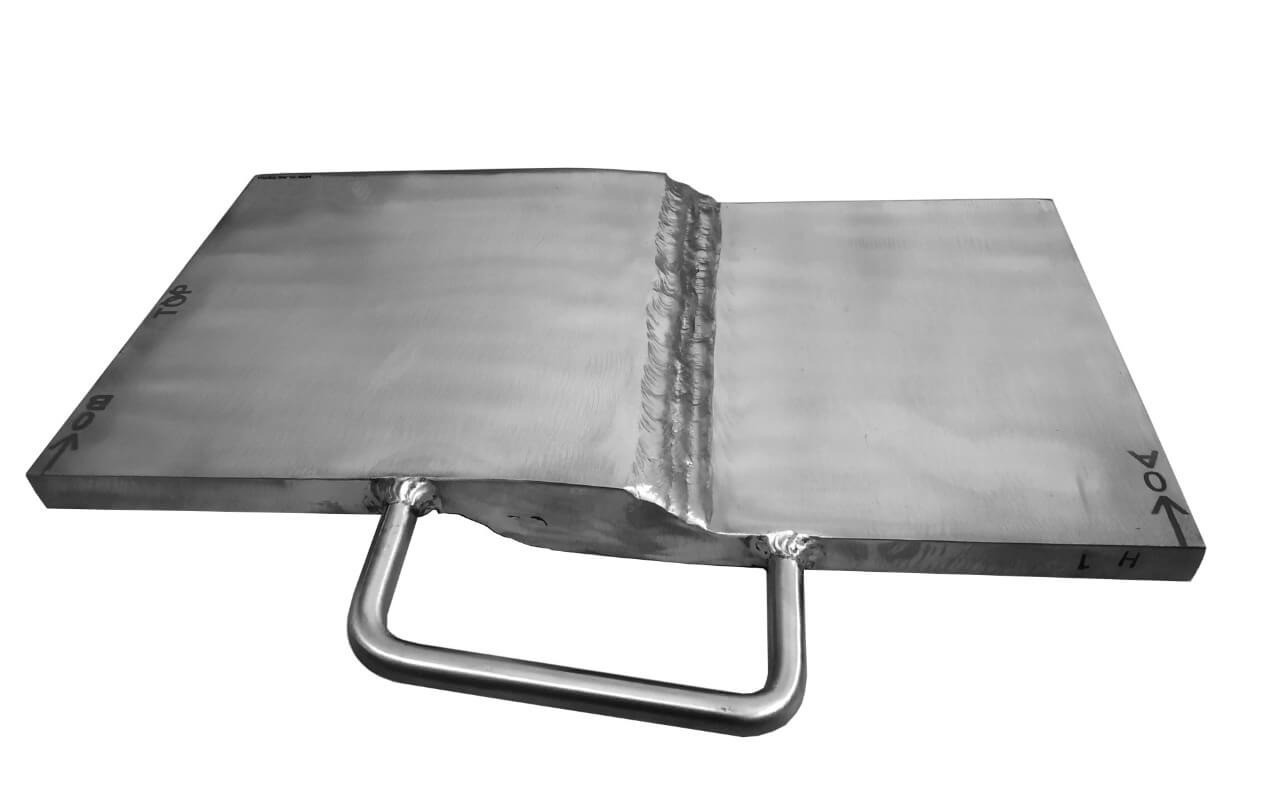

Lap Joint Ultrasonic Test Practical Exam Flaw Specimen

Lap Joint Ultrasonic Test Practical Exam Flaw Specimen Lap Joint Ultrasonic Test Practical Exam flawed specimens.(ut) Geometry: 0.5" x 12" x 6". Flaws: 3, randomly placed Standard Tolerance: +/-0.150" (4mm). Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.

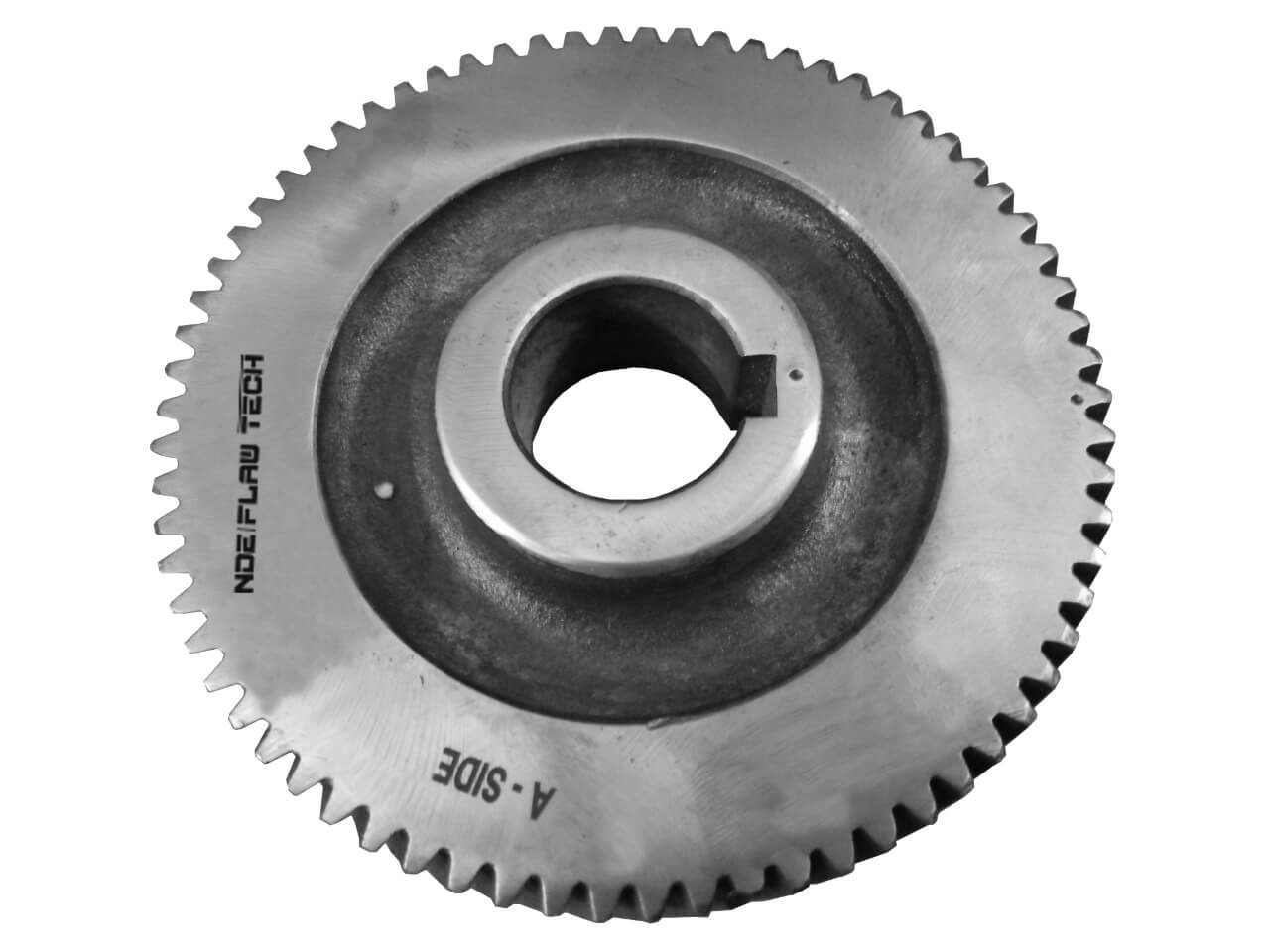

Machined Gear Flange MT and PT Exam Flaw Specimen

Machined Gear Flange MT and PT Exam Flaw Specimen Machined Gear Flange Magnetic Particle/Liquid Penetrant Exam Flawed Specimens. Geometry: 4.6" OD x 1.5" bore. Flaws: 3, randomly placed Standard Tolerance: +/-0.150" (4mm). Documentation: NDT Verification Reports,C of C, CAD Drawings and Test Sheets.

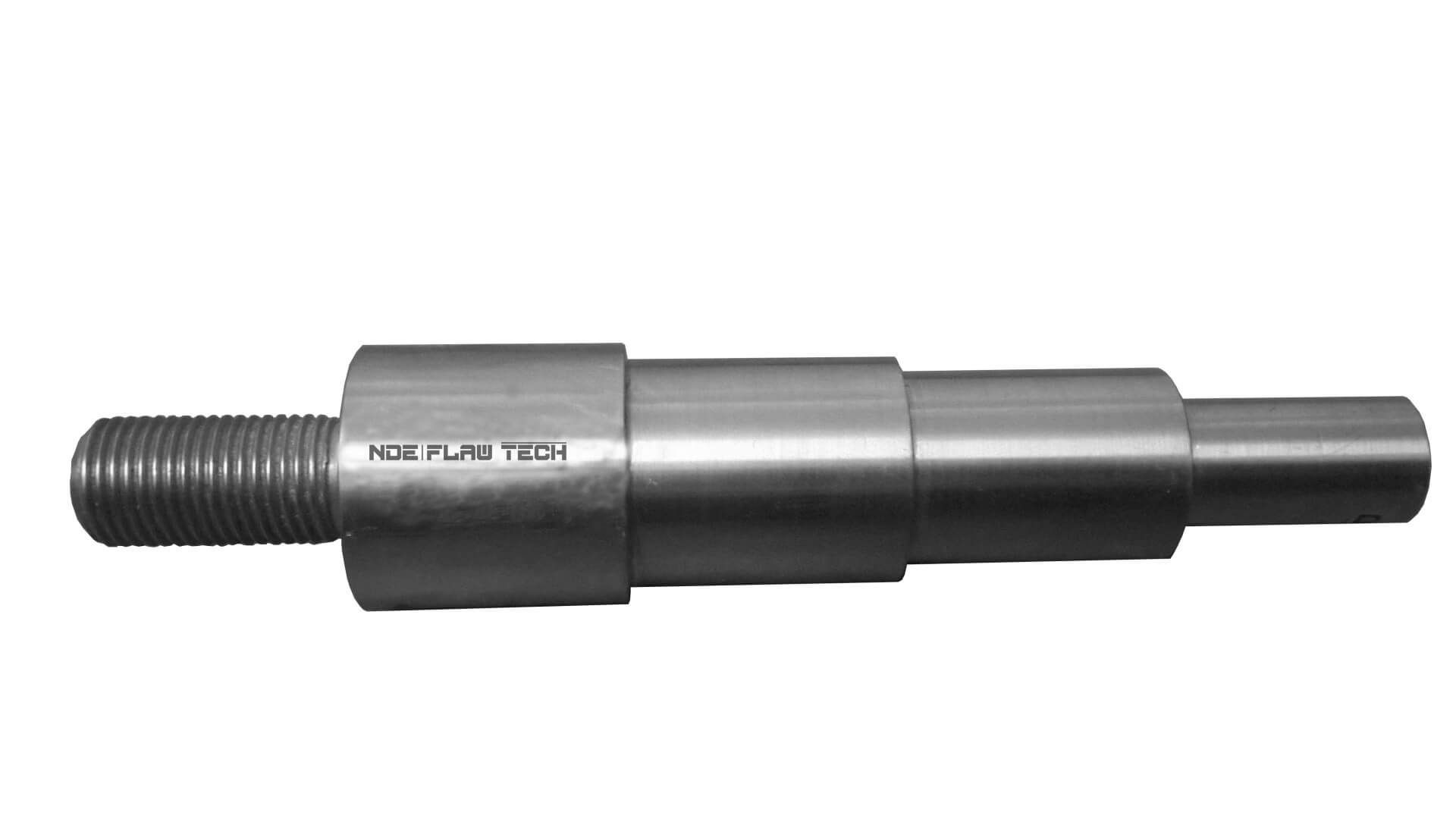

Machined Spindle MT and PT Exam Flawed Specimen

Machined Spindle MT and PT Exam Flawed Specimen Machined Spindle magnetic particle/Liquid Penetrant Exam flawed specimens.(MT,PT) Geometry: 1.75"OD x 8" long. Flaws: 3, randomly placed Standard Tolerance: +/-0.150" (4mm). Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.

Forged Eye Hook MT AND PT Exam Flawed Specimen

Forged Eye Hook MT AND PT Exam Flawed Specimen Forged Eye Hook Magnetic Particle and Liquid Penetrant Exam Test Flawed Specimens. Geometry: 6" long w/~2" eye. Flaws: 3, randomly placed Standard Tolerance: +/-0.150" (4mm). Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets. Material: Carbon Steel. Customized Calibration Test Block and Flaw Specimen also available.

Forged Shackle and Pin MT PT Exam Flawed Specimen

Forged Shackle and Pin MT PT Exam Flawed Specimen Forged Shackle and Pin magnetic particle/Liquid Penetrant Exam flawed specimens. Geometry: 4.25" w/0.75" Pin. Flaws: 3, randomly placed Standard Tolerance: +/-0.150" (4mm). Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets. Material: Carbon Steel. Customized Calibration Test Block and Flaw Specimen also available.
