IIW-Type 2 Calibration Block (Inch Version) STAINLESS STEEL 304

IIW-Type 2 Calibration Block (Inch Version) STAINLESS STEEL 304

Price: $539.00

Part Number : NDE FLAW TECH-IIW TYPE II-857

Availability : In Stock

Description

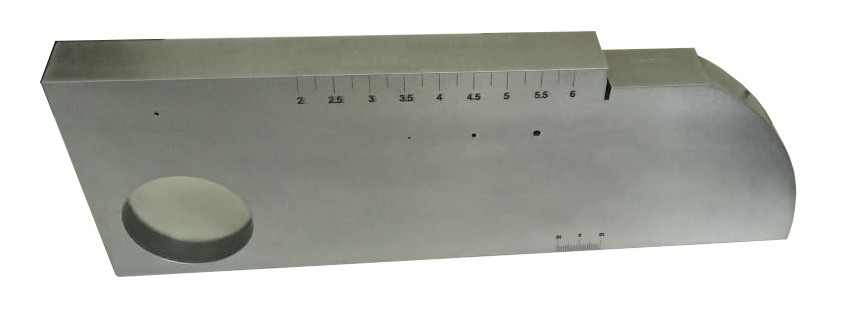

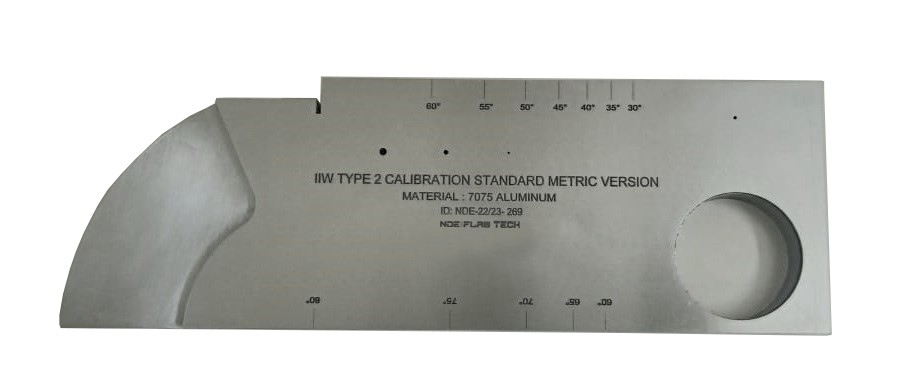

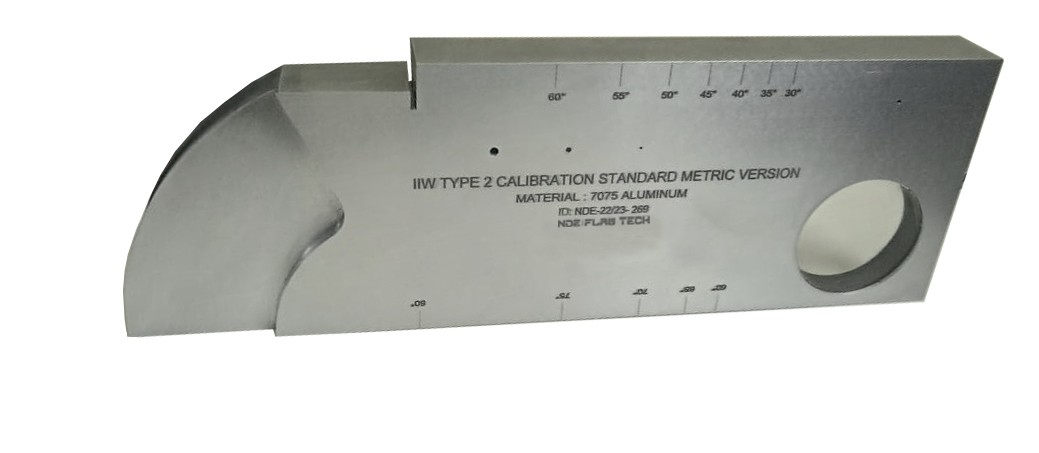

IIW-Type 2 Calibration Block (Inch Version) STAINLESS STEEL 304

IIW type blocks are used to calibrate instruments for both angle beam and normal incident inspections. Some of their uses include setting metal-distance and sensitivity settings, determining the sound exit point and refracted angle of angle beam transducers, and evaluating depth resolution of normal beam inspection setups. Instructions on using the IIW type blocks can be found in the annex of American Society for Testing and Materials Standard E164, Standard Practice for Ultrasonic Contact Examination of Weldments.

A modified version of the original IIW-Type 1 design. Includes a 2.0" radius x .250" deep cut-out superposed on the 4.0" radius for distance calibration. Also includes numbers 3, 5 and 8 through holes (3/64", 5/64" AND 8/64" diameter) for sensitivity testing or surface wave inspection, and distance calibration marks to the 2.0" hole. In accordance with International Institute of Welding, ASTM E164 and U.S. Air Force NDI Manual T.O. 33B-1-1 specifications.

Dimensions: 12.0" x 4.0" x 1.0"

Material: STAINLESS STEEL 304.
