IIW-Type 1 Calibration Test Block (Inch Version) TITANIUM
Price: $663.00
Part Number : NDE FLAW TECH-IIW TYPE I-883
Availability : In Stock
Description

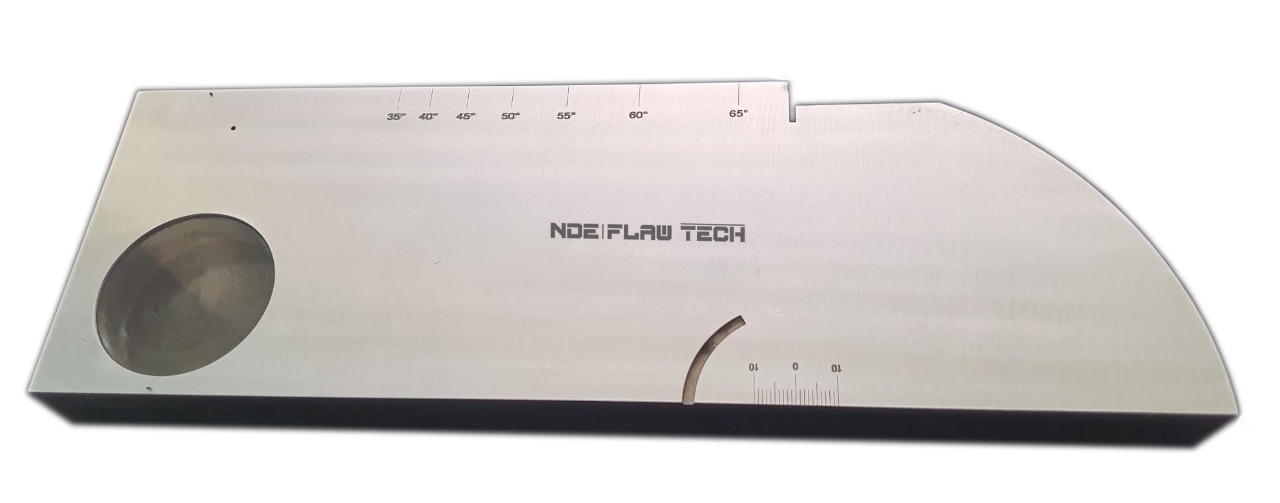

IIW-Type 1 Calibration Test Block (Inch Version) TITANIUM
IIW type blocks are used to
calibrate instruments for both angle beam and normal incident inspections. Some
of their uses include setting metal-distance and sensitivity settings, determining
the sound exit point and refracted angle of angle beam transducers, and
evaluating depth resolution of normal beam inspection setups. Instructions on
using the IIW type blocks can be found in the annex of American Society for
Testing and Materials Standard E164, Standard Practice for Ultrasonic Contact
Examination of Weldments.
Geometry: 4.0" radius, 2.0" and .060" diameter hole, .240" deep x .080" wide slot, and 1.0"radius slot x .060" deep x .120" wide.
Dimensions: 1.0"
x 4.0" x 12.0"
Material: TITANIUM.
Note: For special alloy request by mail.
