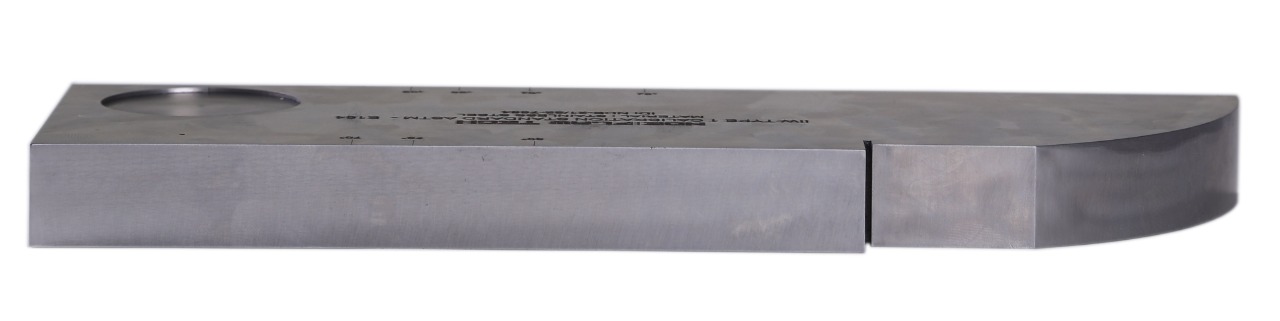

IIW-Type 1 Calibration Test Block (Inch Version) STAINLESS STEEL 304
IIW type blocks are used to
calibrate instruments for both angle beam and normal incident inspections. Some
of their uses include setting metal-distance and sensitivity settings,
the sound exit point and refracted angle of angle beam transducers, and evaluating depth resolution of normal beam inspection setups. Instructions on using the IIW type blocks can be found in the annex of American Society for Testing and Materials Standard E164, Standard Practice for Ultrasonic Contact Examination of Weldments.
Geometry: 4.0" radius, 2.0" and .060" diameter hole, .240" deep x .080" wide slot, and 1.0"radius slot x .060" deep x .120" wide.
Dimensions: 1.0" x 4.0" x 12.0"
Material: STAINLESS STEEL 304.
Note: For special alloy request by mail.
