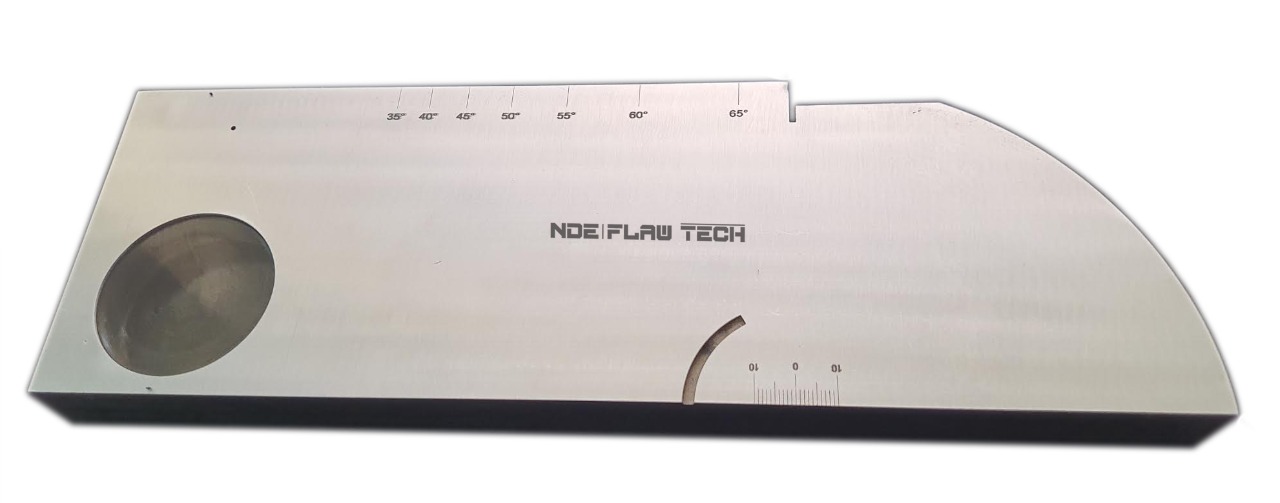

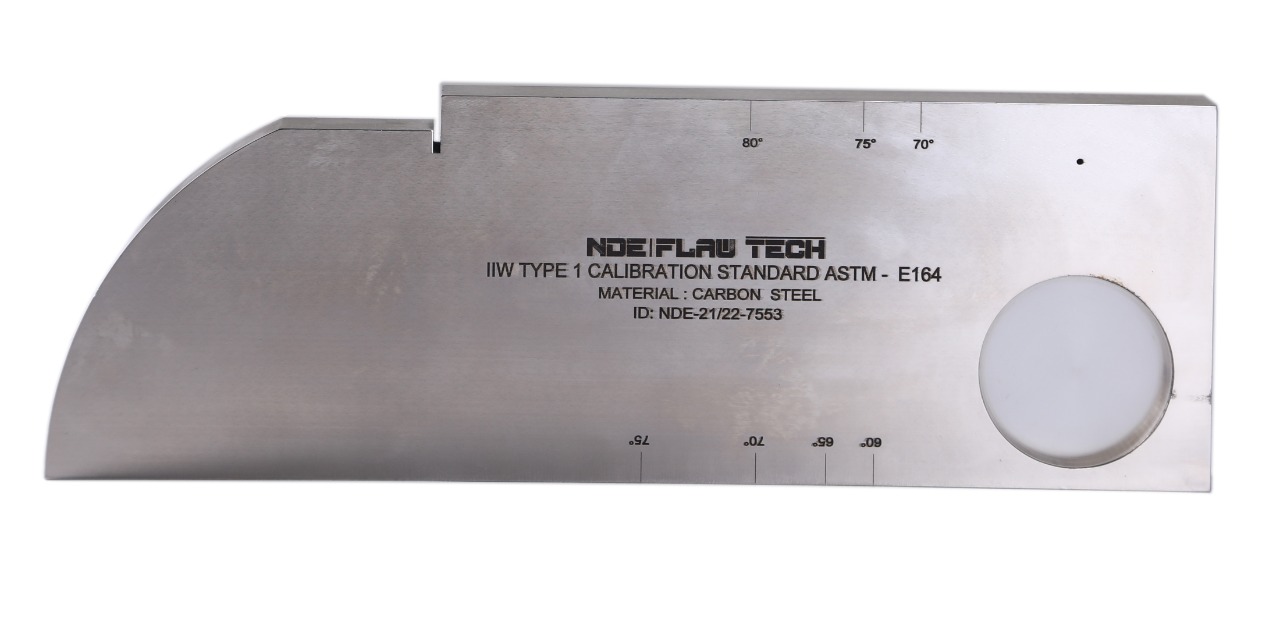

IIW-Type 1 Calibration Test Block (Inch Version) 4340 Steel

IIW-Type 1 Calibration Test Block (Inch Version) 4340 Steel

Price: $264.00

Part Number : NDE FLAW TECH-IIW TYPE I-879

Availability : In Stock

Description

IIW-Type 1 Calibration Test Block (Inch Version) 4340 Steel

IIW type blocks are used to calibrate instruments for both angle beam and normal incident inspections. Some of their uses include setting metal-distance and sensitivity settings, determining
the sound exit point and refracted angle of angle beam transducers, and evaluating depth resolution of normal beam inspection setups. Instructions on using the IIW type blocks can be found in the annex of American Society for Testing and Materials Standard E164, Standard Practice for Ultrasonic Contact Examination of Weldments.

Geometry: 4.0" radius, 2.0" and .060" diameter hole, .240" deep x .080" wide slot, and 1.0"radius slot x .060" deep x .120" wide.

Dimensions:  1.0" x 4.0" x 12.0"

Material: 4340 Steel.

Note: For special alloy request by mail.
