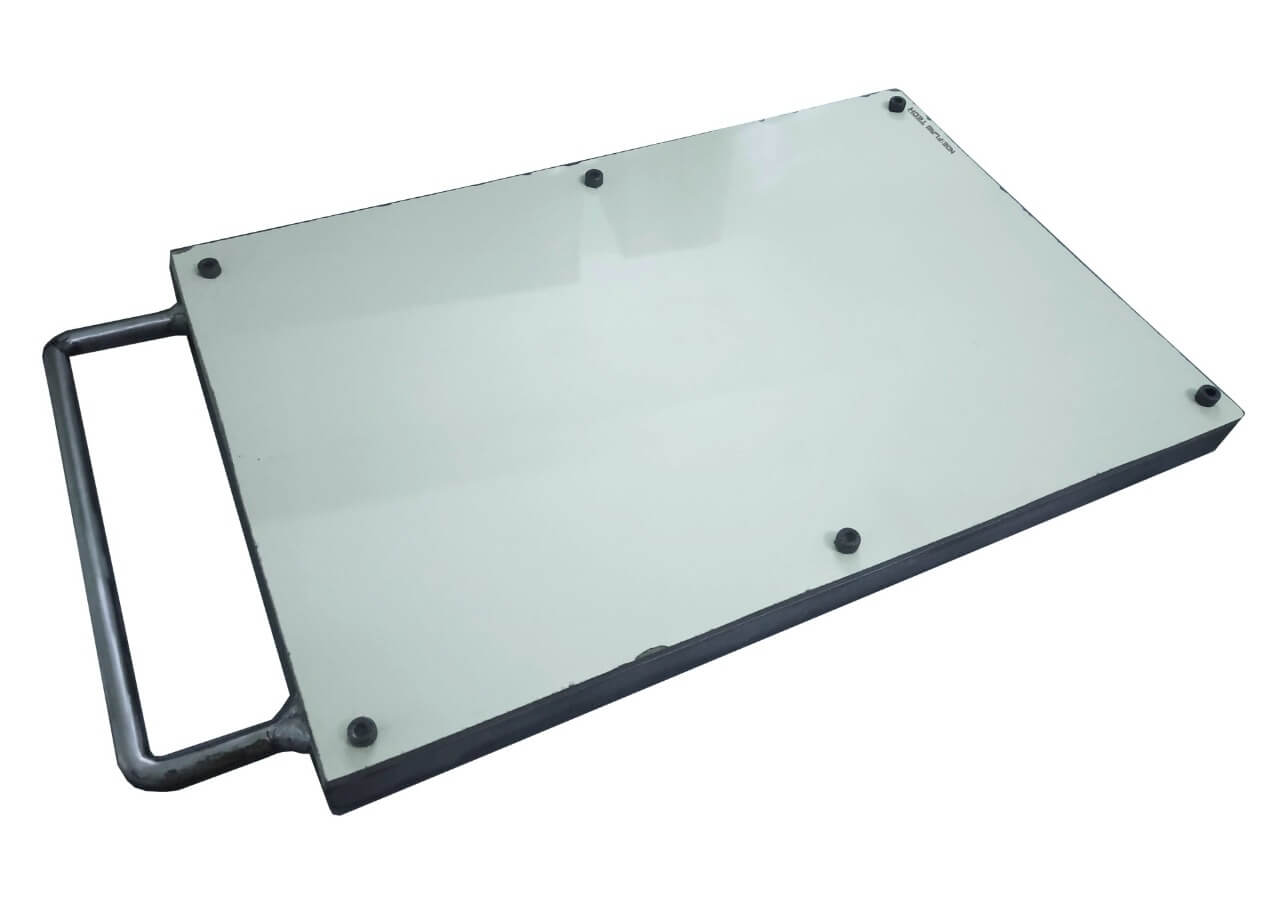

CORROSION/EROSION FOUR SECTION PLATE 0.6" 1018 Carbon Steel

Corrosion, Erosion, and Lamination UT Thickness Training & Certification Plates

Material:

• 1018 carbon steel

Specification:

• Plates will be divided into 4 quadrants with machined scribe lines with each quadrant identified Alpha/Numerically on plate.

• The opposing side (host side) of the plate will host 2 randomly placed simulated corrosion, erosion and/or laminations.

• The quadrant selection and indication depth will be selected randomly or selected by the client.

• Dimension 6” (W) x 6” (L) x 0.6” (T).

• The through wall depths of the indications will vary but the target depths will range from ¼, ½ & ¾ T.

• The recorded depth of the corrosion indications will be based on the deepest spot within the field of corrosion.

• The host side of the plate will be covered with a “removable” cover plate

Documentation:

• Certificate of Conformance, “As Built” CAD and Measuring & Test Equipment Certificates
