ASTM E2491 Phased Array Assessment Block (Metric Version) 1018 Steel

ASTM E2491 Phased Array Assessment Block (Metric Version) 1018 Steel

Price: $1008.00

Part Number : NDE FLAW TECH-ASTM E2491-138

Availability : Out of Stock

Description

ASTM E2491 Phased Array Assessment Block (Metric Version) 1018 Steel

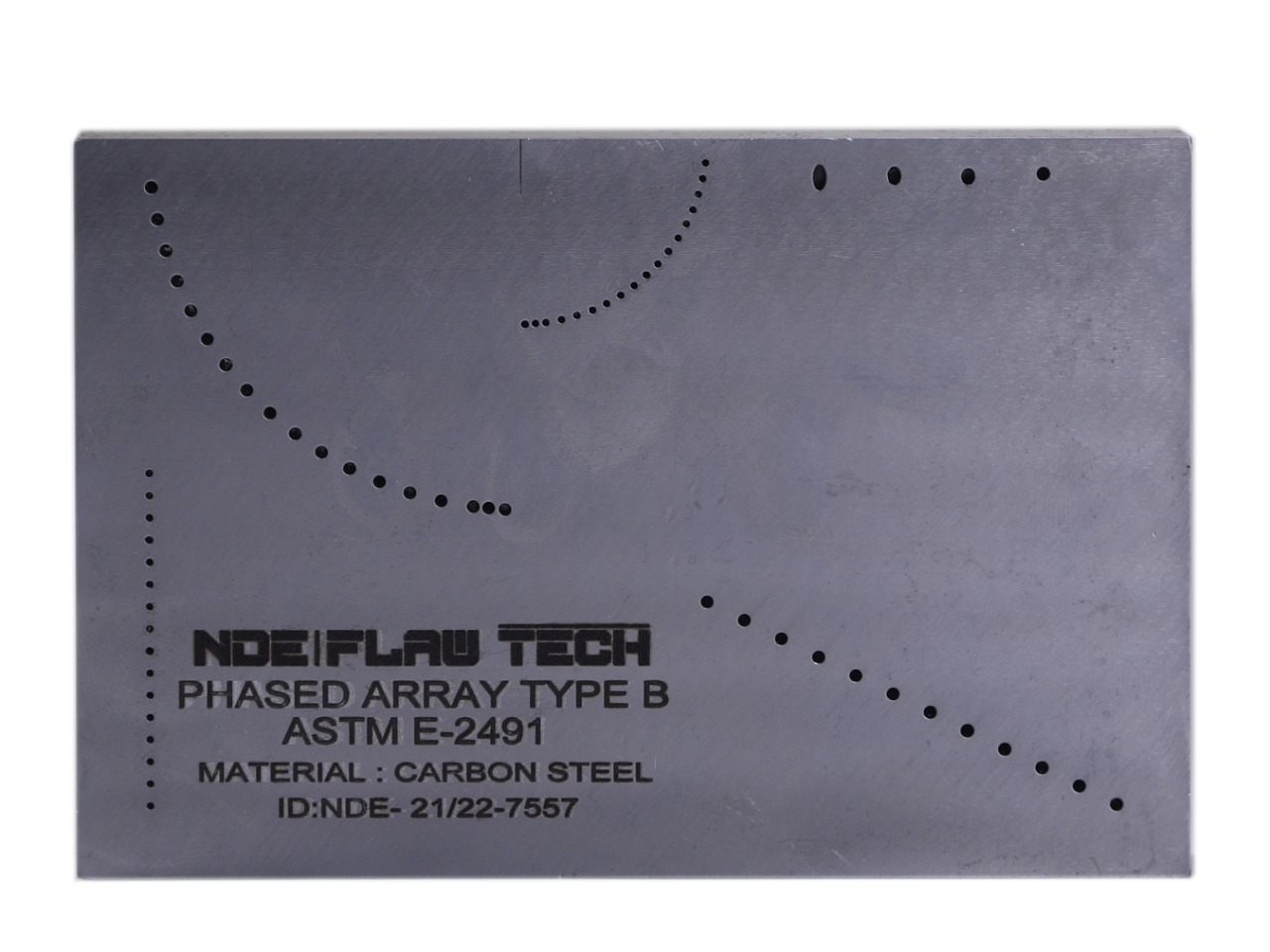

ASTM E2491 Phased Array Assessment Block (Metric Version) is a general purpose Phased Array calibration block used for beam characterization and evaluation of system performance characteristics. Use it as a baseline block to determine long-term instrument performance changes, generate DAC curves and evaluate linear/angular resolution, focusing ability and beam steering capabilities. With a variety of targets, this small, lightweight block is also perfect for customer demonstrations of phased array ultrasonic capabilities. This block is also referred to as a “Type B” block.

Geometry Dimensions: 150mm x 100mm x 25mm

Four (4) angled holes (30°, 45°, 60° and 75°) at 1.5mm diameter.

Array of 18 holes on 25mm radius at 1.0mm diameter. Angular separation between holes is 5.0°, with 2.5° of separation between the last two holes in the array.

Array of 18 holes on 50 mm radius at 2.0mm diameter. Angular separation between holes is 5.0°, with 2.5° of separation between the last two holes in the array.

Vertical column of 16 holes at 1.0mm diameter with 3.0mm of separation between the holes.

Angled row of 12 holes at 1.5mm diameter with 5.0mm of separation between holes.

Machine engraved tick mark at radii centerline.

Material: 1018 Steel
