API UT 1 Qualification Test Specimen Kit (Inch Version)

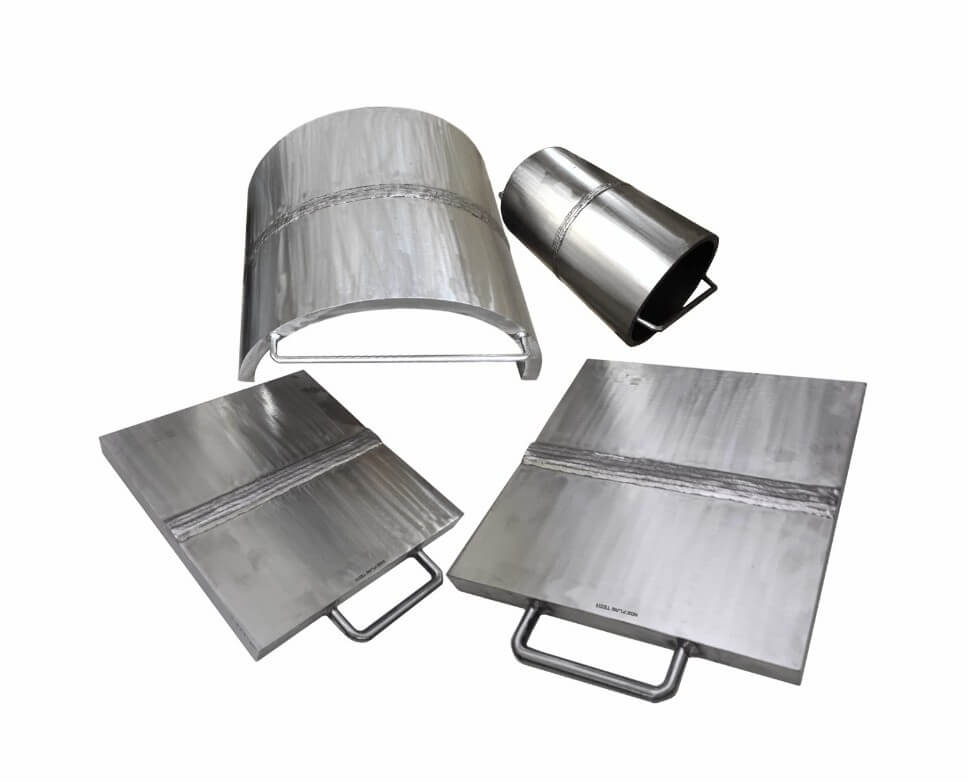

API UT 1 Qualification Test Specimen Kit

Geometry: Kit contains 4

Specimens:

(1) Double V Plate @ 15.0"(L) x 12.0" (W) x 1.0" (T).

(1) Single V Plate @ 12.0" (L) x 10.0" (W) x 0.5" (T).

(1) Pipe @ 8" Sch80 (360°) wall thick 0.5" x 12.0" (L).

(1) Pipe @12" Sch80 (180°) wall thick 0.72" x 12.0" (L).

Flaws: 3 per specimen, 12 total

Material: Carbon Steel for any alloy request mail..

Documentation: NDT Verification Reports, and Test Sheets.

Designed in accordance with Fig.1of API-UT-1 Generic Procedure for the Ultrasonic Examination of Ferritic Welds, this kit contains a total of 4 specimens.

NOTE: Customized Evaluation Test Block and Flaw Specimen also available. For any special artificial flaws as per client requirement, please request with detail by mail.
