API UT 1 Qualification Specimen Kit (Metric Version)

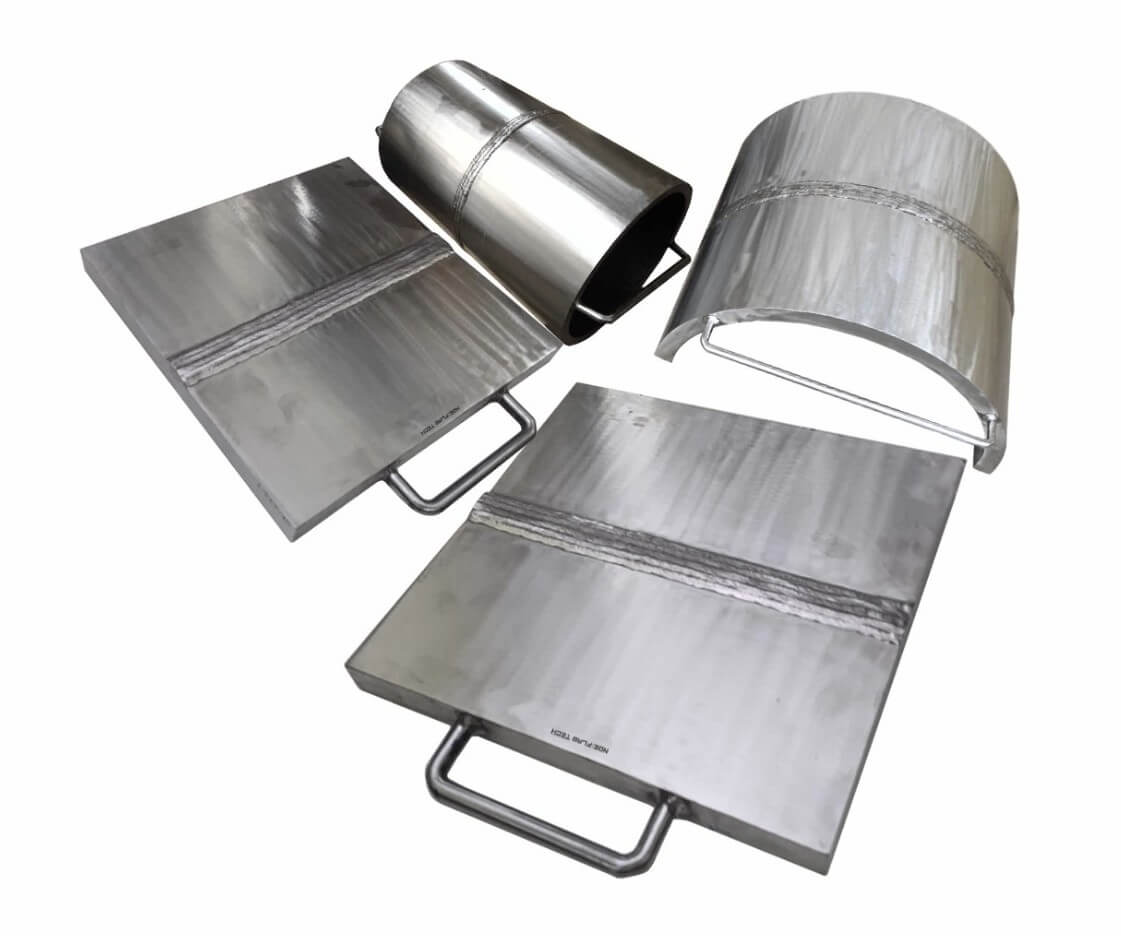

API UT 1 Qualification Test Specimen Kit

Geometry: Kit contains 4

Specimens:

(1) Double V Plate @ 350mm (L) x 300mm (W) x 25mm (T).

(1) Single V Plate @ 300mm (L) x 250mm (W) x 12.5mm (T).

(1) Pipe @ Ø200mm Sch80 (360°) wall thick 12.5mm x 300mm (L).

(1) Pipe @ Ø300mm Sch80 (180°) wall thick 18mm x 300mm (L).

Flaws: 3 per specimen, 12 total

Material: Carbon Steel for any alloy request mail..

Documentation: NDT Verification Reports, and Test Sheets.

Designed in accordance with Fig.1of API-UT-1 Generic Procedure for the Ultrasonic Examination of Ferritic Welds, this kit contains a total of 4 specimens.

NOTE: Customized Evaluation Test Block and Flaw Specimen also available. For any special artificial flaws as per client requirement, please request with detail by mail.
