API UT 1 Qualification Specimen Mini Kit (INCH VERSION)

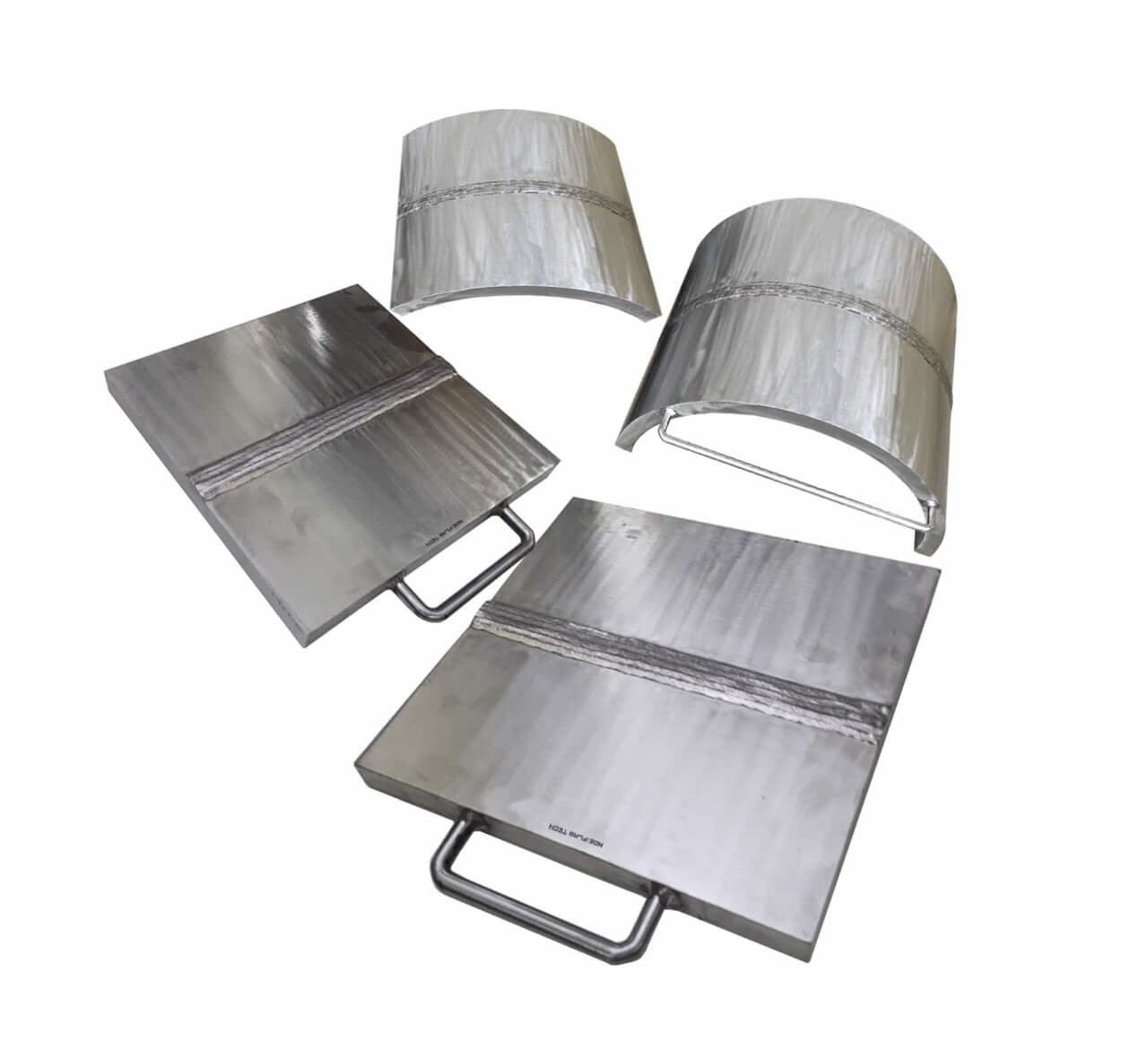

API UT 1 Qualification Specimen Mini Kit

Geometry: Kit contains 4

Specimens:

(1) Double V Plate @ 1” (T) x 7.5” (W) x 6” (L)

(1) Single V Plate @ 0.5” (T) x 6” (W) x 5” (L)

(1) Pipe @ 8” Sch80 (180°) wall thick 0.5" x 6” (L) x Arc length 12.5"

(1) Pipe @12” Sch80 (90°) wall thick 0.72" x 6” (L) x Arc length 10.0"

Flaws: 2 per specimen, 8 total

Material: Carbon Steel, for any alloy request mail.

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.

Designed in accordance with Fig.1of API-UT-1 Generic Procedure for the Ultrasonic Examination of Ferritic Welds, this kit contains a total of 4 specimens.

NOTE: Customized Evaluation Test Block and Flaw Specimen also available. For any special artificial flaws as per client requirement, please request with detail by mail.
