API UT 1 Qualification Specimen Mini Kit Inch Version

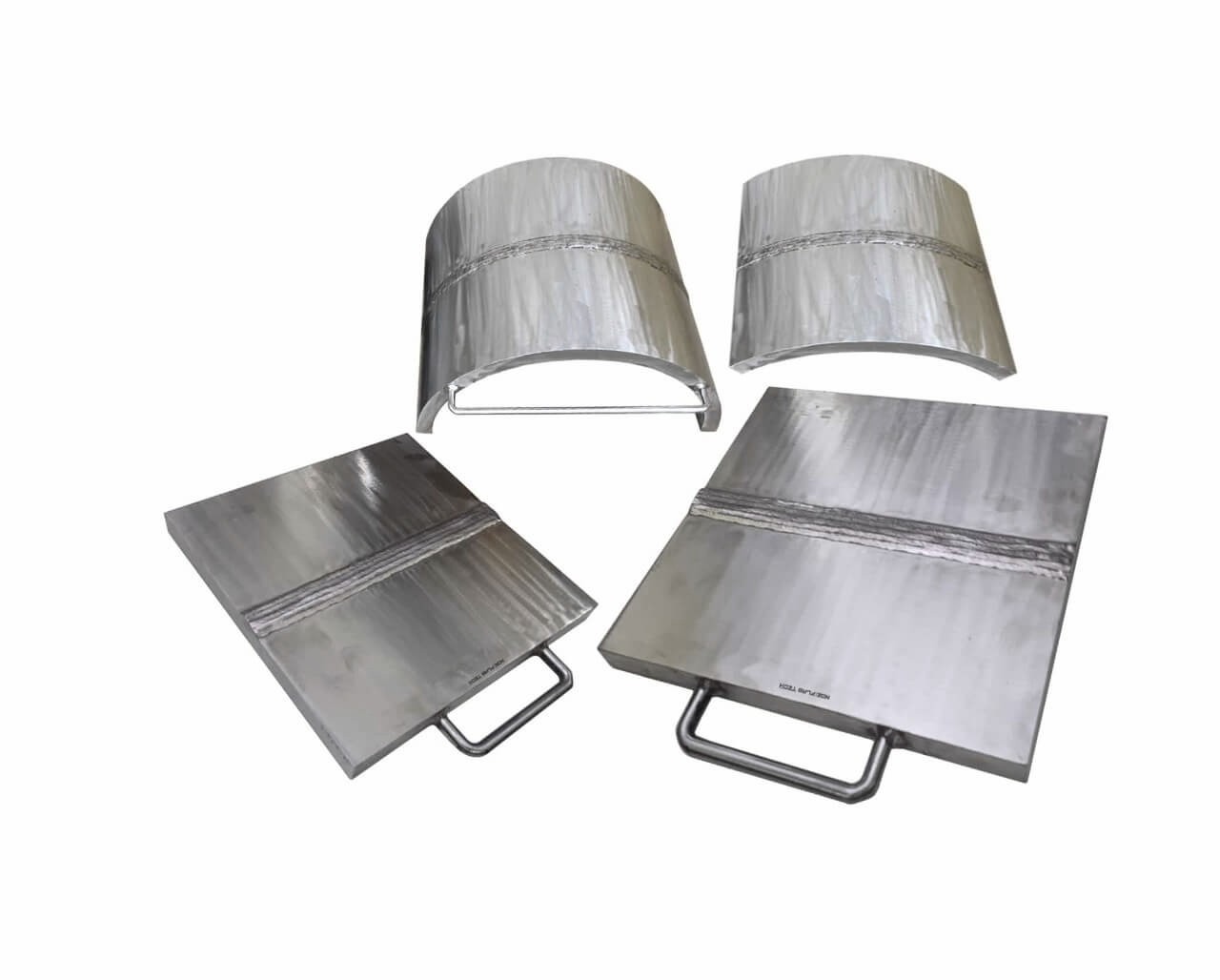

API UT 1 Qualification Specimen Mini Kit Inch Version Geometry: Kit contains 4 Specimens: (1) Double V Plate @ 1” (T) x 7.5” (W) x 6” (L) (1) Single V Plate @ 0.5” (T) x 6” (W) x 5” (L) (1) Pipe @ 8” Sch80 (180°) wall thick 0.5" x 6” (L) x Arc length 12.5" (1) Pipe @12” Sch80 (90°) wall thick 0.72" x 6” (L) x Arc length 10.0" Flaws: 2 per specimen, 8 total Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets. Designed in accordance with Fig.1of API-UT-1 Generic Procedure for the Ultrasonic Examination of Ferritic Welds, this kit contains a total of 4 specimens. NOTE: Customized Evaluation Test Block and Flaw Specimen also available. For any special artificial flaws as per client requirement, please request with detail by mail.
Metric Version
API UT 1 Qualification Specimen Mini Kit (METRIC VERSION)
API UT 1 Qualification Specimen Mini Kit (METRIC VERSION) API UT 1 Qualification Specimen Mini Kit Geometry: Kit contains 4 Specimens: (1) Double V Plate @ 25mm (T) x 190mm (W) x 150mm (L) (1) Single V Plate @ 12.5mm (T) x 125mm (W) x 150 (L) (1) Pipe @ Ø200mm Sch80 (180°) wall thick 12.5mm x 150mm (L) x Arc length 320 (1) Pipe @ Ø300 Sch80 (90°) wall thick 18mm x 150mm (L) x Arc length 250mm Flaws: 2 per specimen, 8 total Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.
