API UT 1 Qualification Mini Kit (METRIC VERSION)

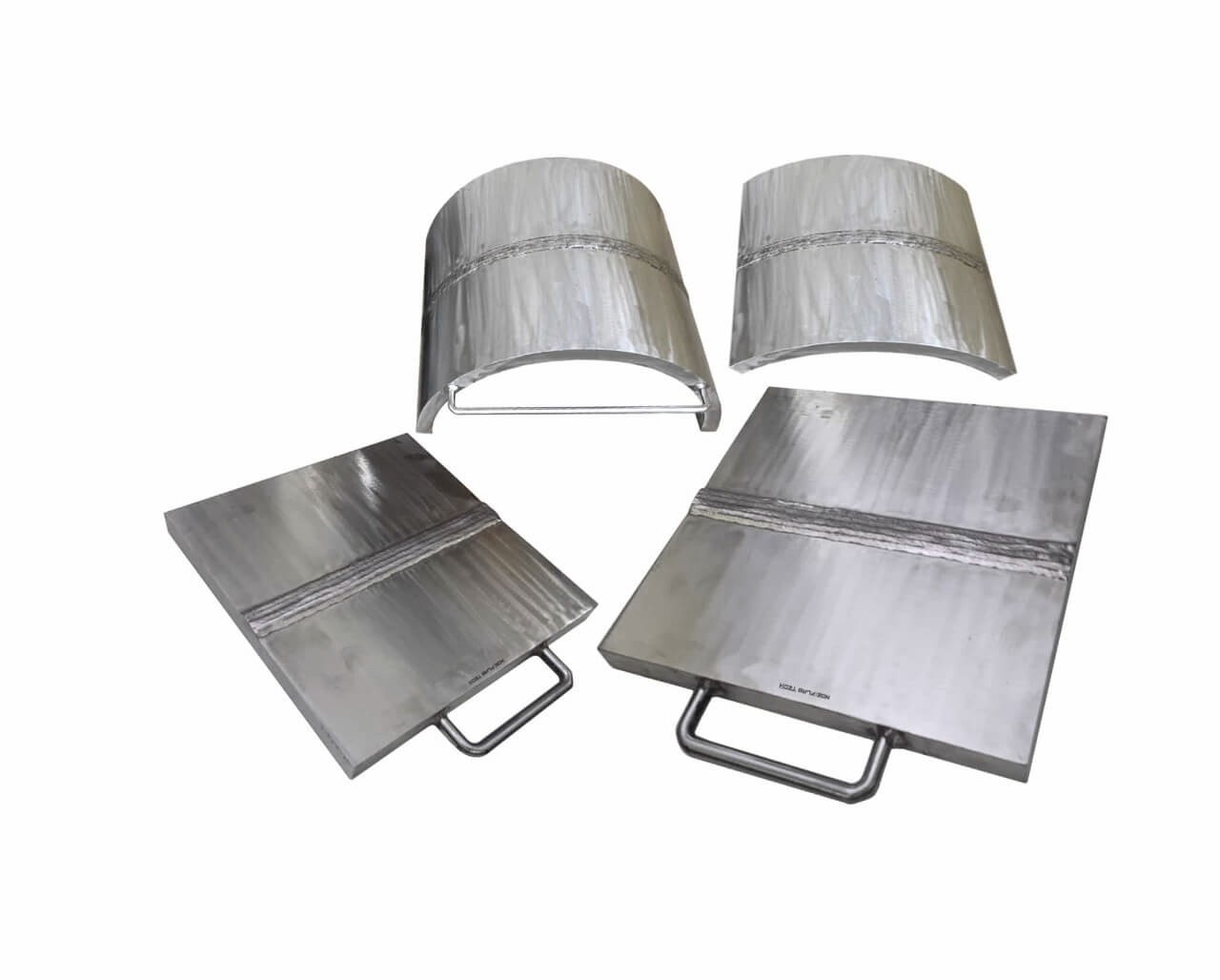

API UT 1 Qualification Specimen Mini Kit

Geometry: Kit contains 4

Specimens:

(1) Double V Plate @ 25mm (T) x 190mm (W) x 150mm (L)

(1) Single V Plate @ 12.5mm (T) x 125mm (W) x 150 (L)

(1) Pipe @ Ø200mm Sch80 (180°) wall thick 12.5mm x 150mm (L) x Arc length 320

(1) Pipe @ Ø300 Sch80 (90°) wall thick 18mm x 150mm (L) x Arc length 250mm

Flaws: 2 per specimen, 8 total

Material: Carbon Steel, for any alloy request mail.

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.

Designed in accordance with Fig.1of API-UT-1 Generic Procedure for the Ultrasonic Examination of Ferritic Welds, this kit contains a total of 4 specimens.

NOTE: Customized Evaluation Test Block and Flaw Specimen also available. For any special artificial flaws as per client requirement, please request with detail by mail.
