API RP-2X Practice Test Kit (METRIC VERSION) Carbon Steel

Designed in the spirit of API RP-2X, these specimens offer a technician advanced training in UT flaw detection & sizing in unique configurations.  This kit is a great tool for conducting practical examinations, as well as preparing technicians for typical industry exams.

Material: Carbon steel plate

Total of 4 specimens

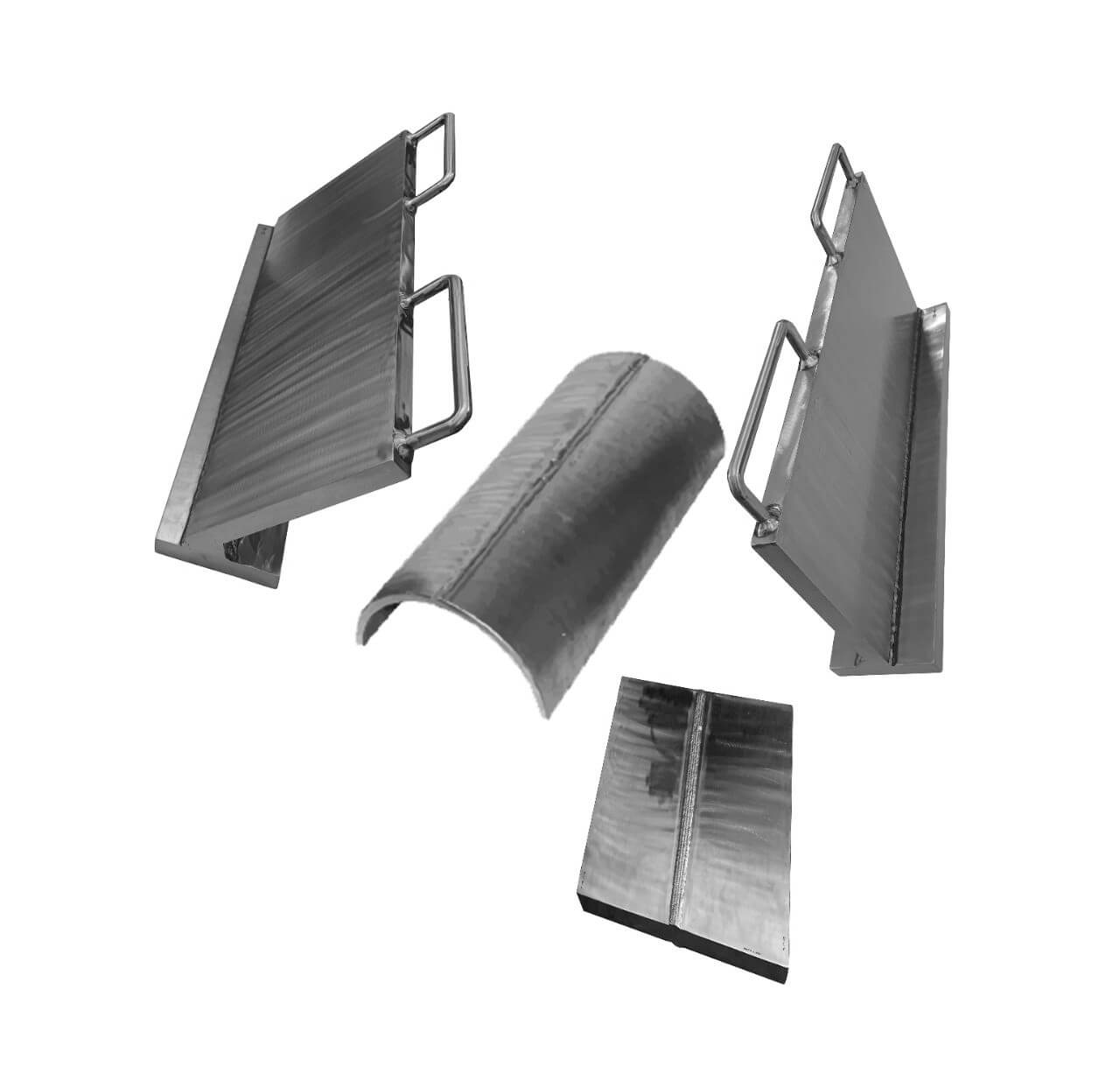

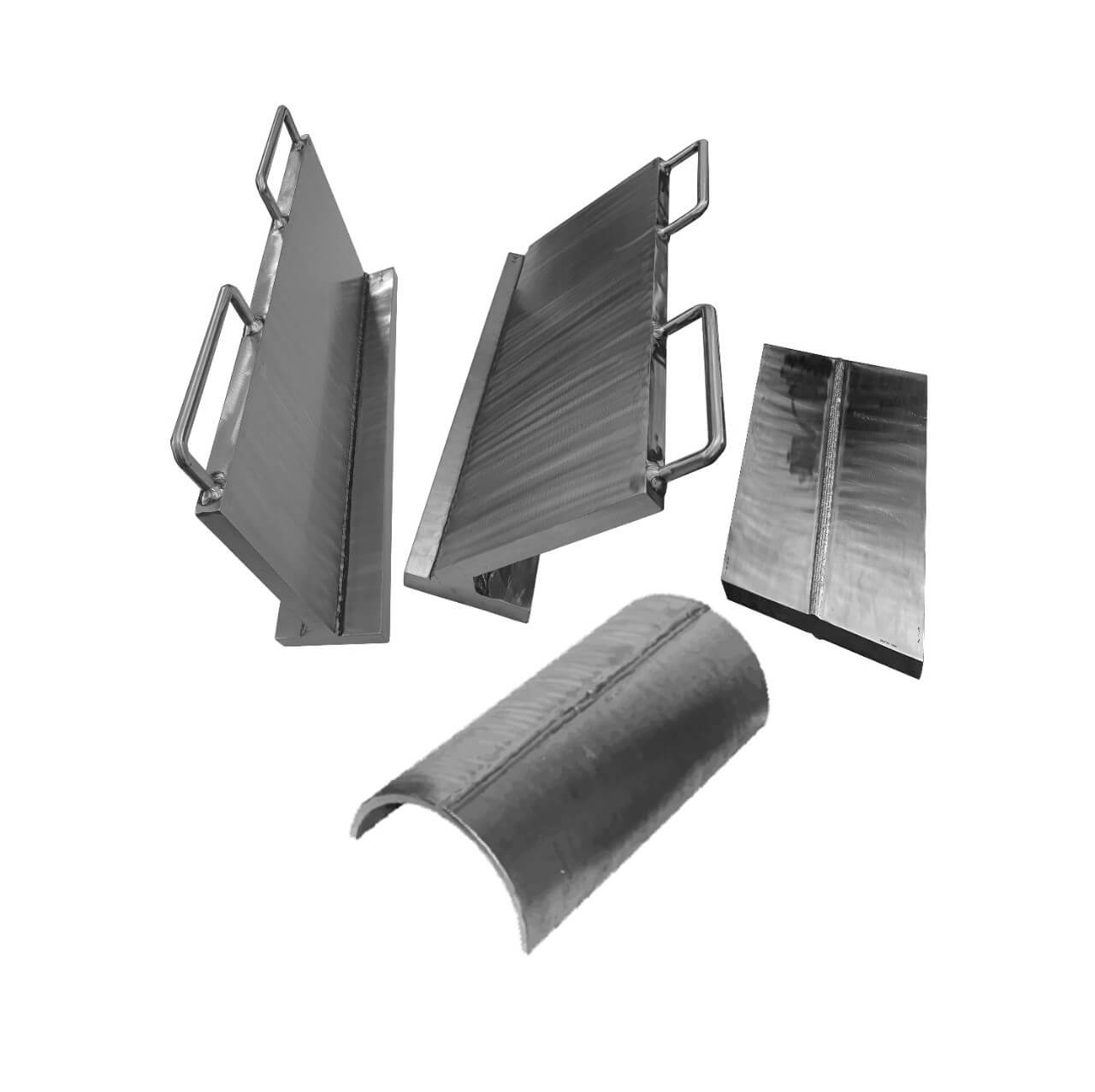

• 90° “T” Connection, 19mm (T) x 300mm (weld length) x 100mm (Base) x 200mm (Branch)

• 60°  Diagonal “Y” Connection, 19mm (T) x 300mm (weld length) x 100mm (Base) x 200mm (Branch)

• Simulated Plate 25mm (T) x 300mm  (weld length) x 300mm  (150mm  either side of weld center line) with 6mm x 25mm  Backing Bar

• Pipe Longitudinal Weld 219mm Sch60 (10mm)  x 300mm x ~180°  segment (150mm either side of longitudinal weld center line)

Flaws:

• Total of 11 flaws

• Flaws are randomly placed ~2-4 flaw per specimen

• Flaw design and manufacturing intent is to make all flaws rejectable as per API RP-2X Level C acceptance criteria (Fig. 45 & 48).

• Flaw acceptability must be determined by the end user and will not be determined by ultrasonic during or post manufacturing.

Documentation:

• Includes Certificate of Conformance, “As Built” CAD drawings, “Blank” CAD Test Sheets, UT Inspection Report and Measuring & Test Equipment Certificates
