API RP-2X Practice Test Kit (INCH VERSION) Carbon Steel

Designed in the spirit of API RP-2X, these specimens offer a technician advanced training in UT flaw detection & sizing in unique configurations.  This kit is a great tool for conducting practical examinations, as well as preparing technicians for typical industry exams.

Material: Carbon steel plate

Total of 4 specimens

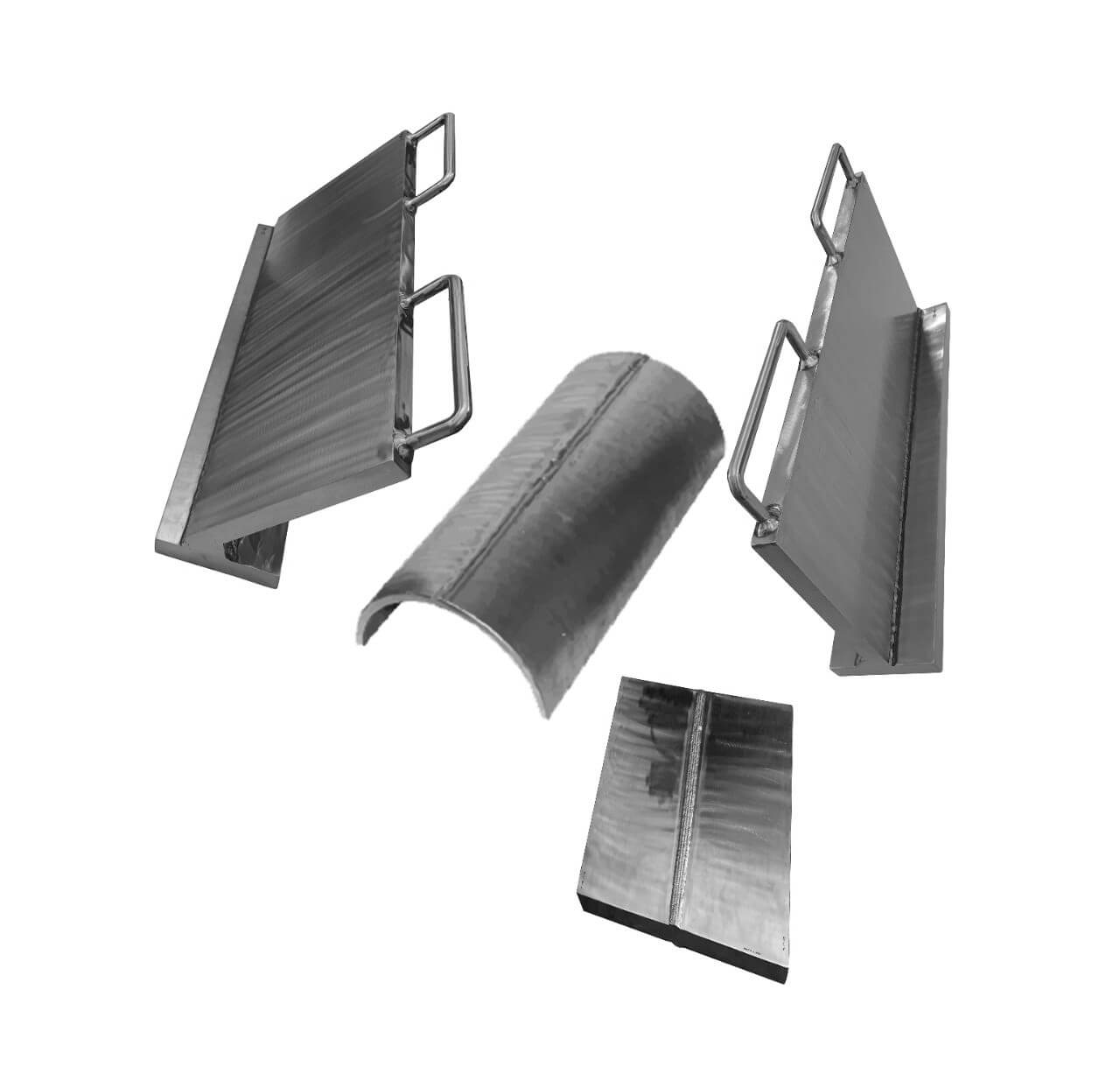

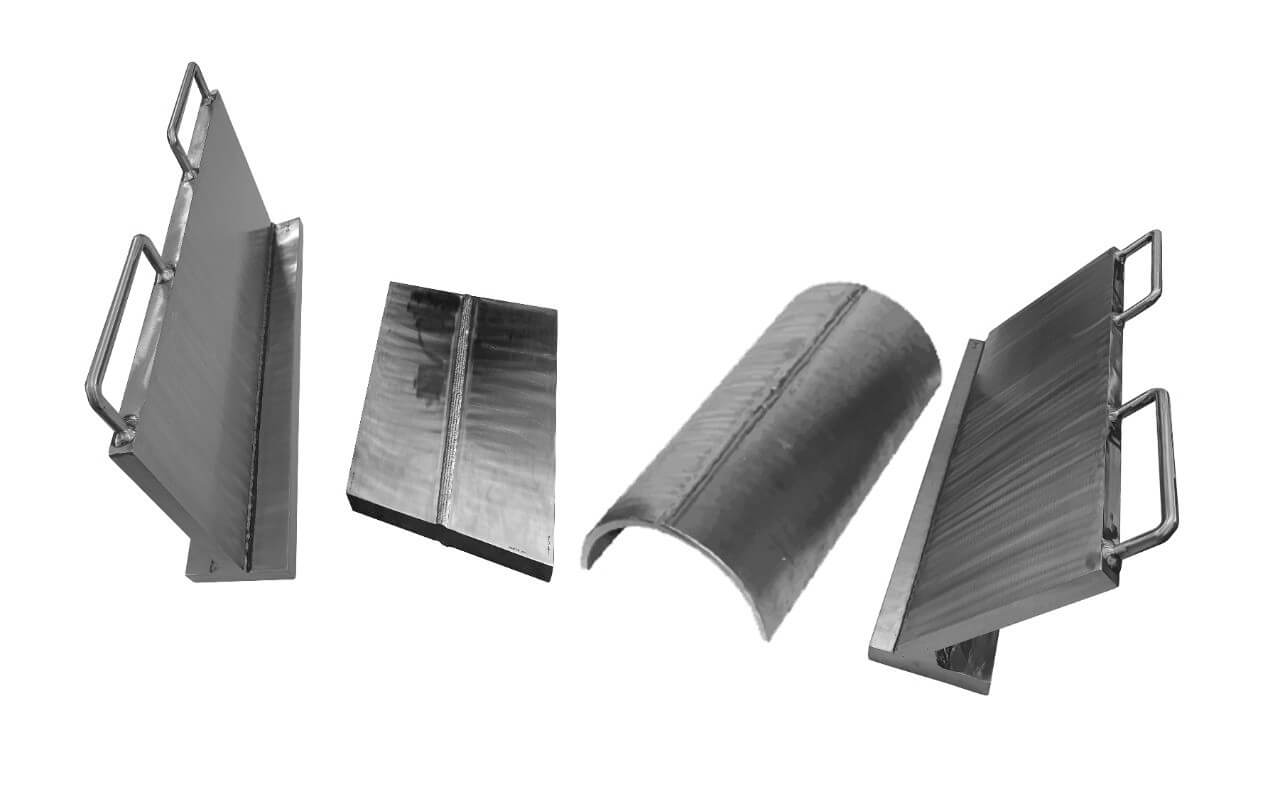

• 90° “T” Connection, 0.75” (T) x 12” (weld length) x 4” (Base) x ~8” (leg)

• 60°  Diagonal “Y” Connection, 0.75” (T) x 12” (weld length) x 4” (Base) x ~8” (leg)

• Simulated Plate 1” T x 12”  (weld length) x ~12”  (~6”  either side of weld center line) with 0.25” x 1”  Backing Bar

• Pipe Longitudinal Weld 8” Sch60 (0.406”)  x 12” x ~180°  segment (~6” either side of longitudinal weld center line)

Flaws:

• Total of 11 flaws

• Flaws are randomly placed ~2-4 flaw per specimen

• Flaw design and manufacturing intent is to make all flaws rejectable as per API RP-2X Level C acceptance criteria (Fig. 45 & 48).

• Flaw acceptability must be determined by the end user and will not be determined by ultrasonic during or post manufacturing.

Documentation:

• Includes Certificate of Conformance, “As Built” CAD drawings, “Blank” CAD Test Sheets, UT Inspection Report and Measuring & Test Equipment Certificates
