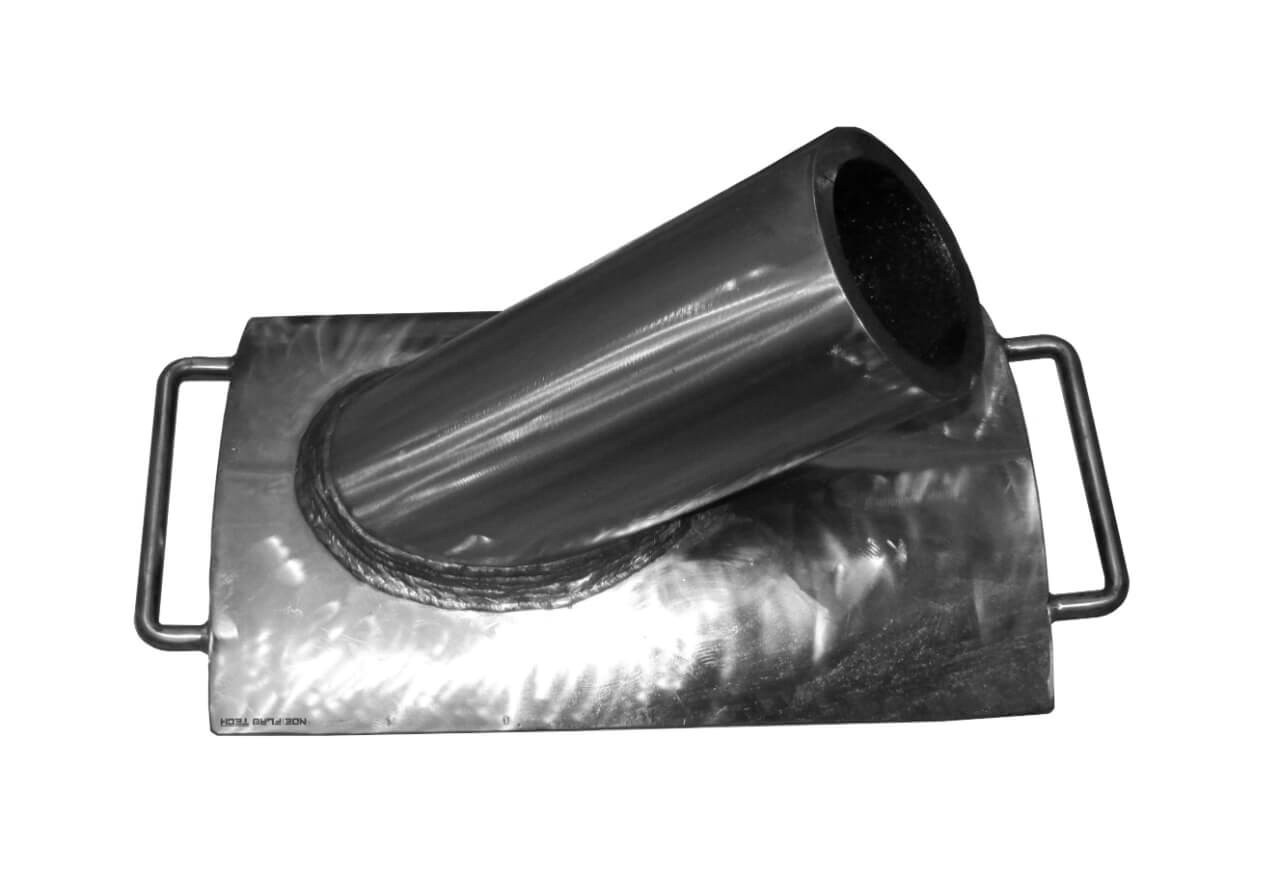

60ᵒ Tubular Nodes Weld UT Flaw Test Specimen (Inch Version) Carbon Steel

60ᵒ Tubular Nodes Weld UT Flaw Test Specimen 0.5” to 0.8” (Ultrasonic Test)

Tubular Nodes 0.5” to 0.8” 60ᵒ UT Flawed Specimens

Geometry: Tubular Nodes Dihedral Angle 60ᵒ Main Pipe Segment Ø20” Dia. 0.8” to 1.0” WT & Branch Ø8” Dia. And 0.5” to 0.8” WT.

Material: Carbon Steel.

Customized Calibration Test Block and Flaw Specimen also available.

Flaws: 3 or 4 per specimen, randomly placed Specimen Tolerance: +/- 0.080".

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.
