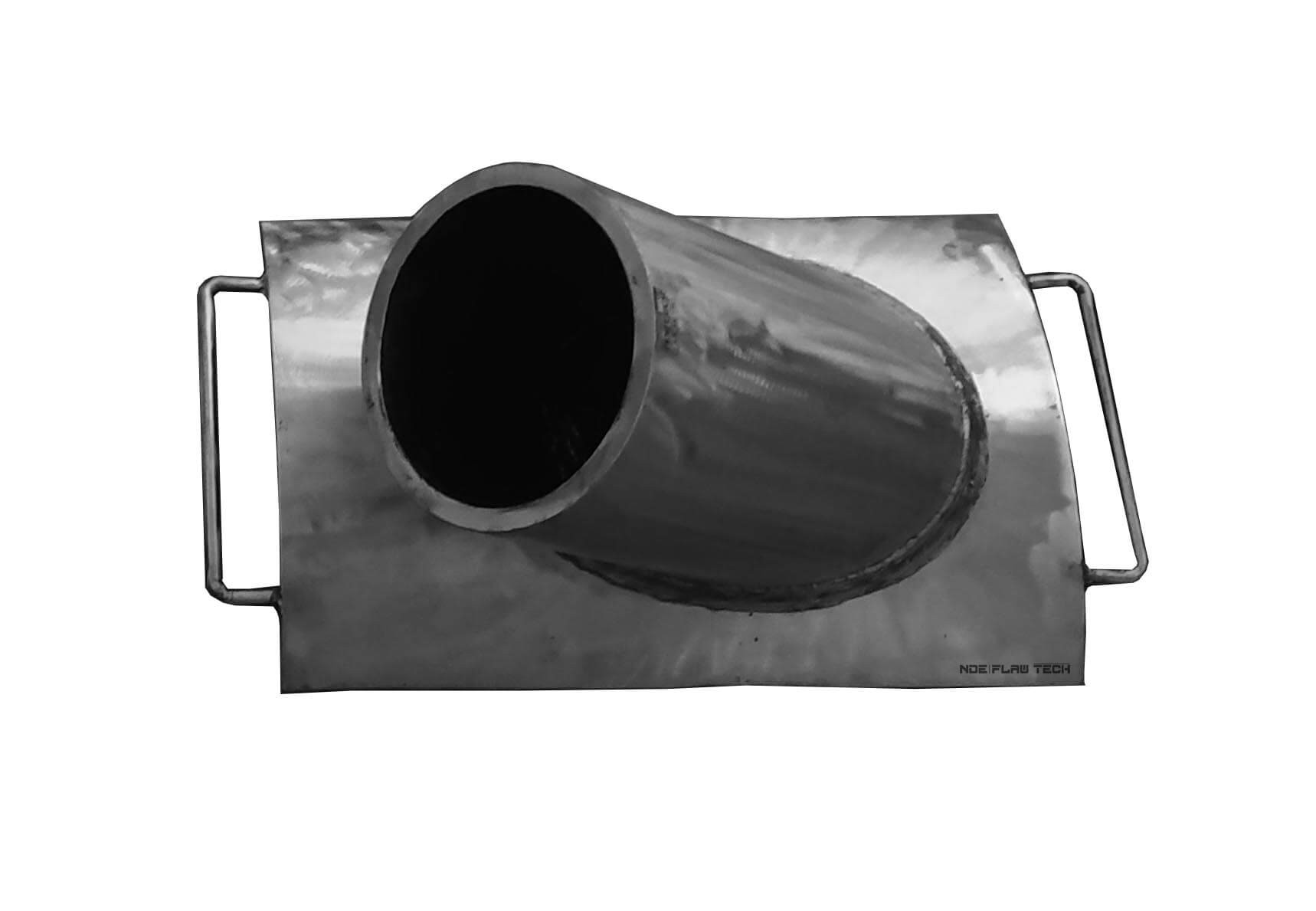

30ᵒ Tubular Nodes Weld UT Flaw Test Specimen (Metric Version) Carbon Steel

30ᵒ Tubular Nodes Weld UT Flaw Test Specimen 12mm to 20mm (Ultrasonic Test)

Tubular Nodes 12mm to 20mm 30ᵒ UT Flawed Specimens

Geometry: Tubular Nodes Dihedral Angle 30ᵒ Main Pipe Segment Ø500mm Dia. 20mm to 25mm WT & Branch Ø200mm Dia. And 12mm to 20mm WT.

Material: Carbon Steel.

Customized Calibration Test Block and Flaw Specimen also available.

Flaws: 3 or 4 per specimen, randomly placed Specimen Tolerance: +/- 0.080".

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.
