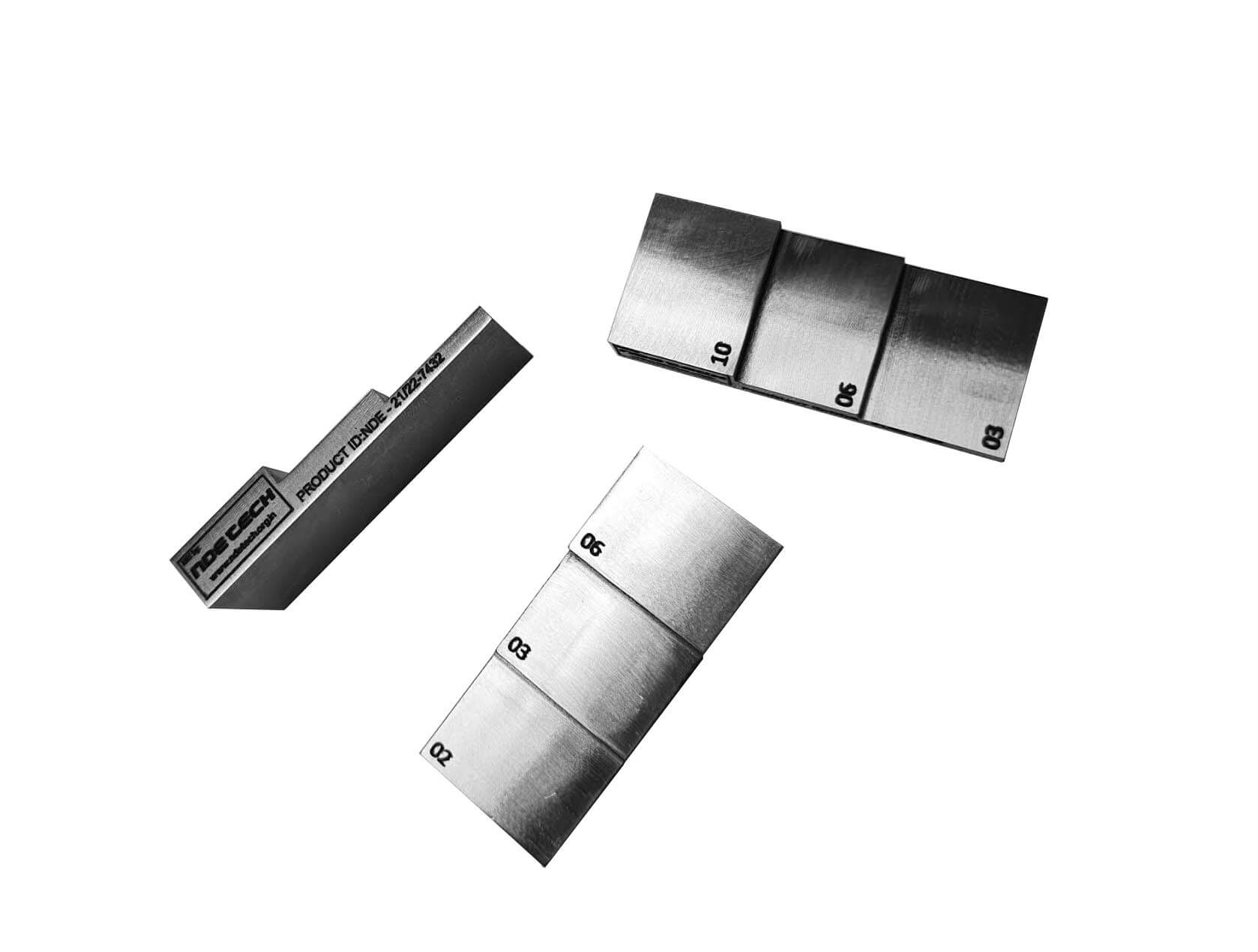

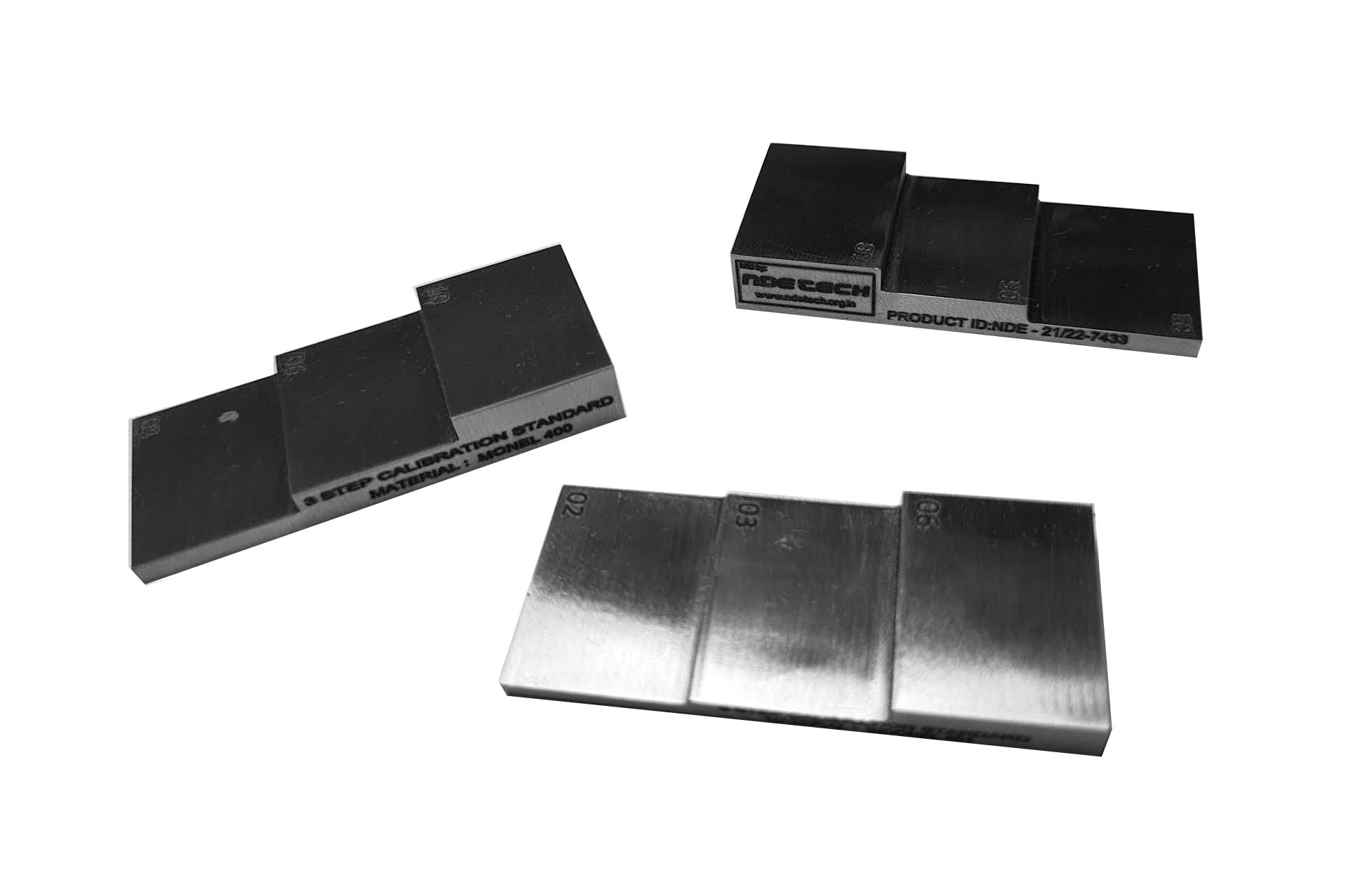

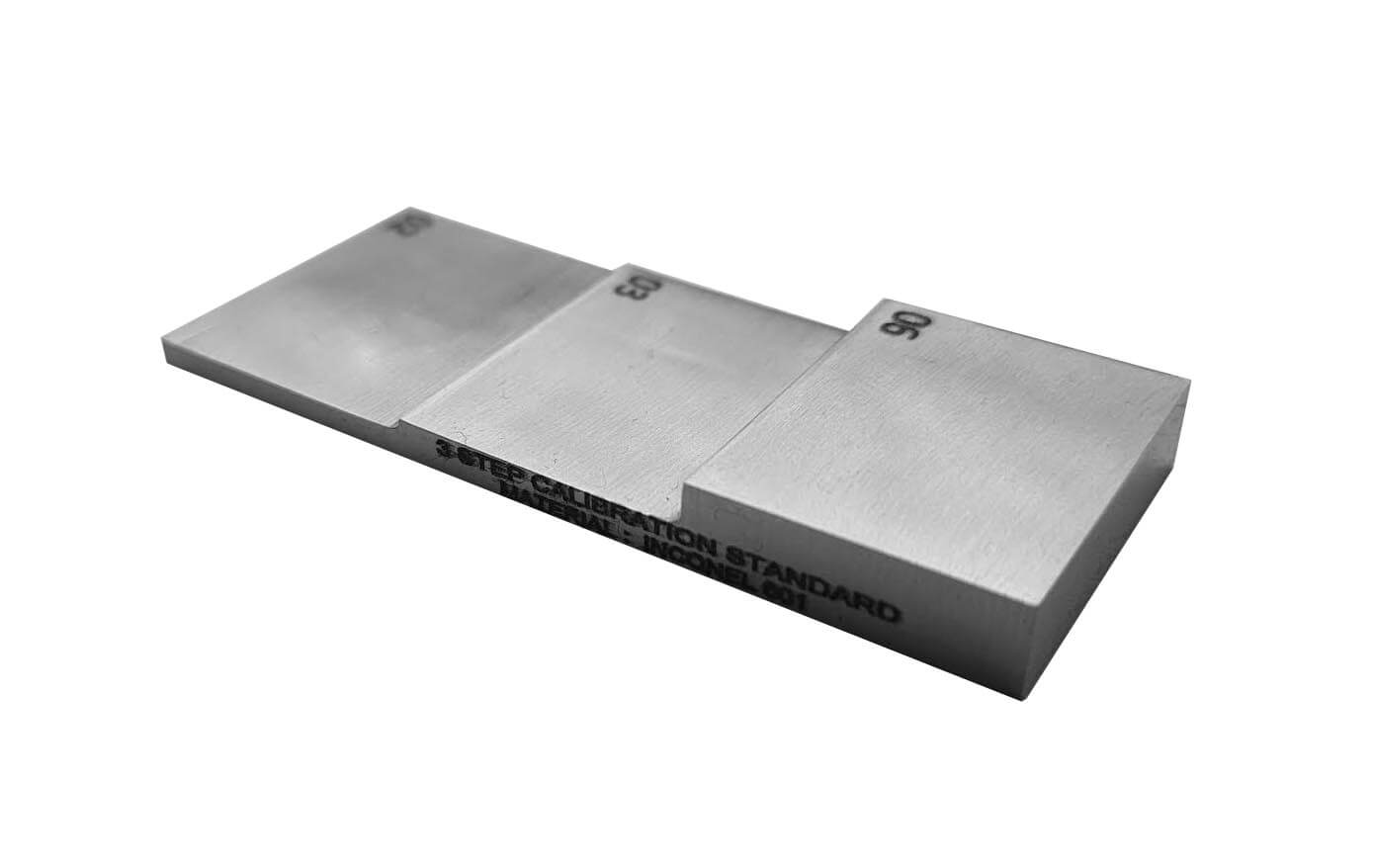

3 STEP (0.015” – 0.07”) THIN WEDGE BLOCK (INCH VERSION) STAINLESS STEEL 304

Step calibration wedges come in a large variety of sizes and configurations. Step wedges are typically manufactured with four or five or steps but custom wedge can be obtained with any number of steps. 3 Step Calibration Block for thickness and linearity calibration 3 Step Calibration Block 0.015” – 0.07” with two EDM flaws. Includes Test Report Traceable to NIST and Certificate of Conformance.

DIMENSIONS: 3 Step Calibration Block has steps starting at 0.015” to 0.07” in 0.015”, 0.03” and 0.07” increments.

4.5” (L) x 1.0” (W) x 0.07” (T).

NOTCH SIZE :  1. 0.3”(L) x 0.005” (W) x 0.01” (Deep)

2. 0.3” (L) x 0.005” (W) x 0.02” (Deep)

NOTE: Customized Step Block also available.

METRIC STEP FACE: 1.5” x 1.0”.

MATERIAL: STAINLESS STEEL 304.

NOTE: For special alloy request by mail.
