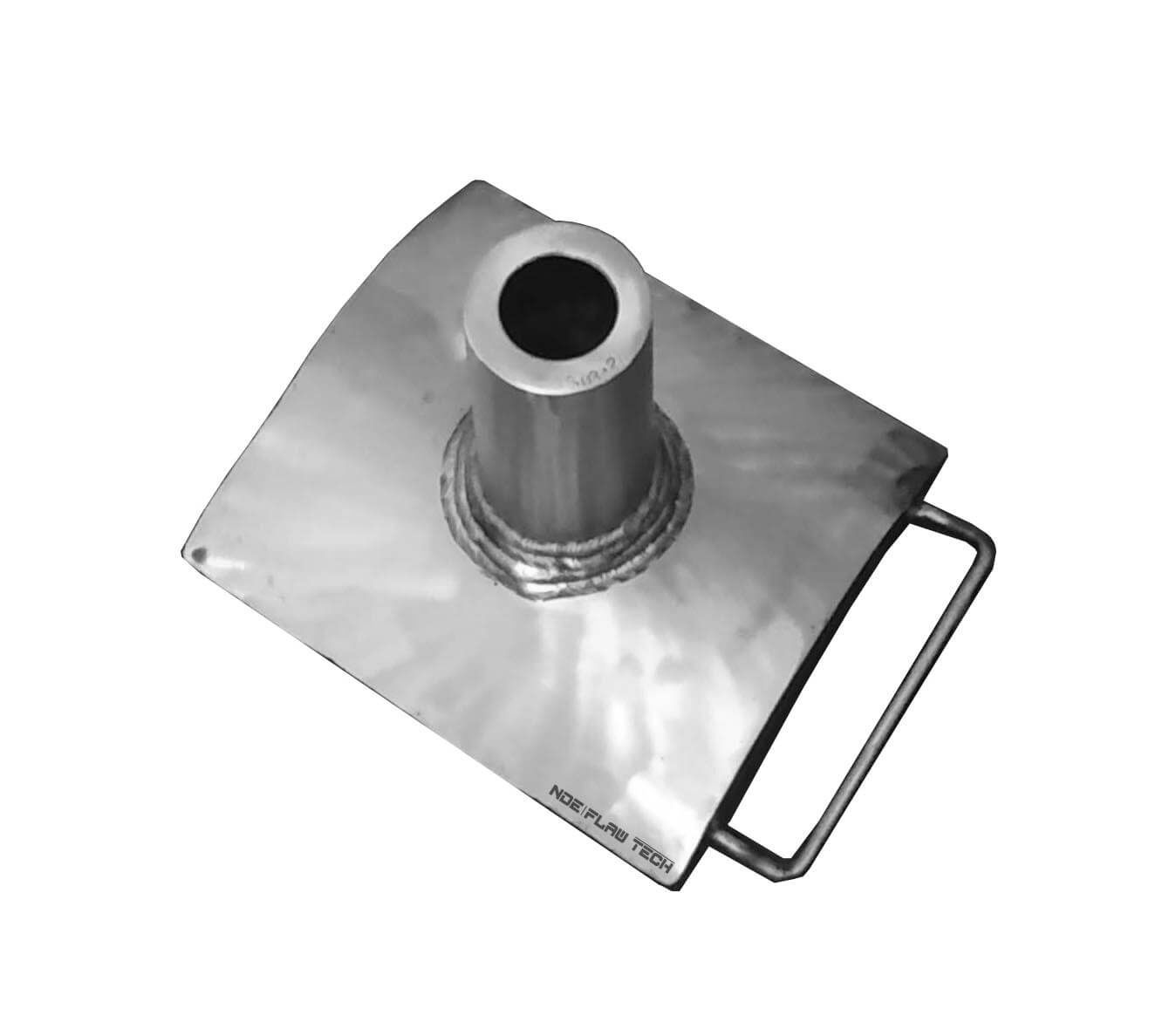

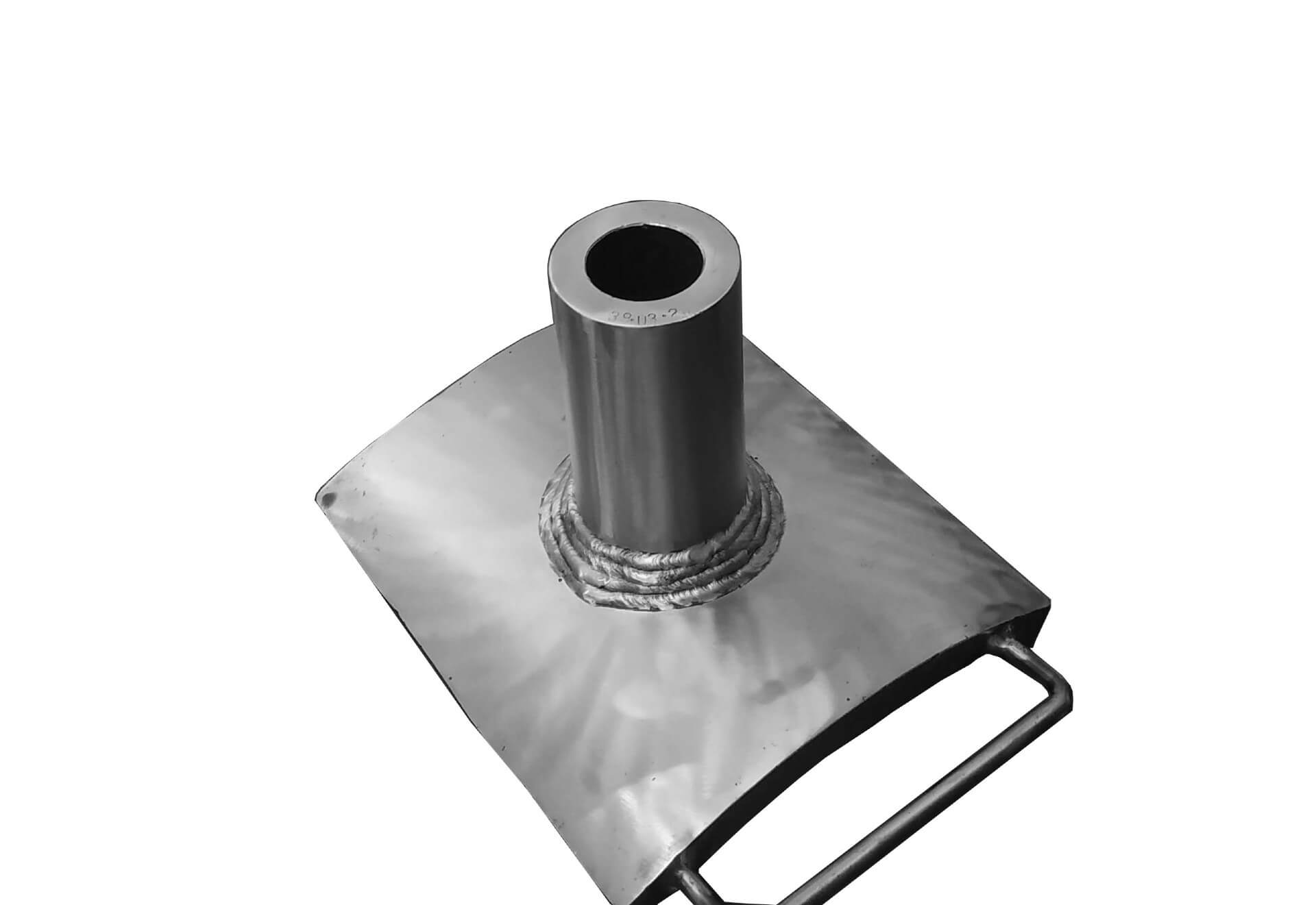

3” Pipe to Nozzle Ultrasonic Test Flawed Specimens Set on Partial Penetration Joint (Inch Version) Carbon Steel

3” Pipe to Nozzle Ultrasonic Test Flawed Specimens 0.6” (Set on Partial Penetration Joint)

Geometry: Pipe to Flange Nozzle Joint with Weld length 8” to 10” and Thickness Range 0.6 to 0.8” with (Set On Partial Penetration Joint).

Material: Carbon Steel.

Customized Calibration Test Block and Flaw Specimen also available.

Flaws: 3 or 4 per specimen, randomly placed Specimen Tolerance: +/- 0.080"

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.
