200mm Pipe to Nozzle UT Flaw Test Specimens Set on Partial Penetration Joint (Metric Version) Carbon Steel

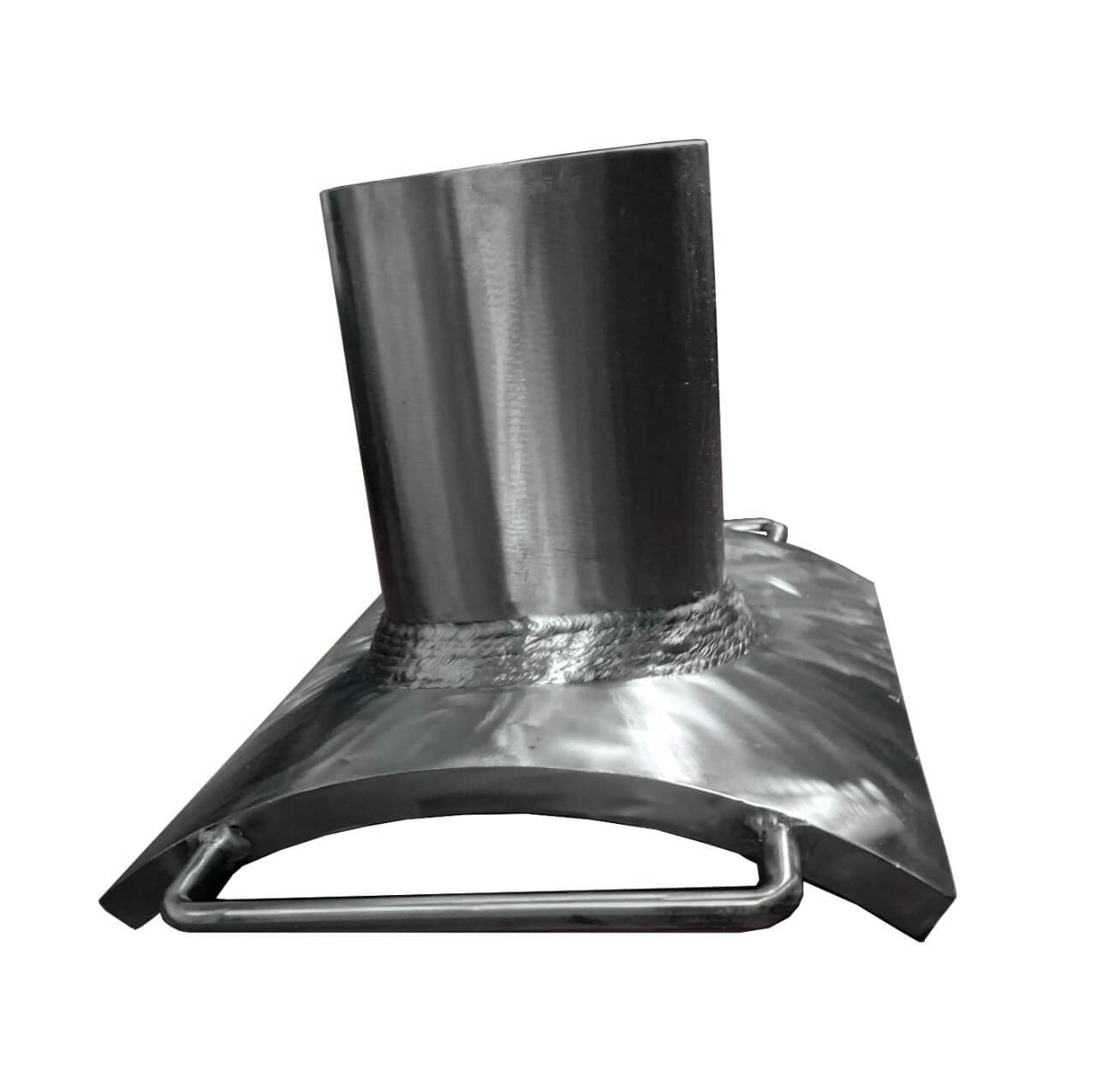

Ø200mm Pipe to Nozzle UT Ultrasonic Flaw Test Specimens 20mm (Set on Partial Penetration Joint)

Geometry: Pipe to Flange Nozzle Joint with weld length above 600mm Main Pipe Segment Ø600mm Dia. Branch Ø200mm Dia. Thickness 20mm with Set On Partial Penetration Joint.

Material: Carbon Steel.

Customized Calibration Test Block and Flaw Specimen also available.

Flaws: 3 or 4 per specimen, randomly placed Specimen Tolerance: +/- 0.080".

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.
