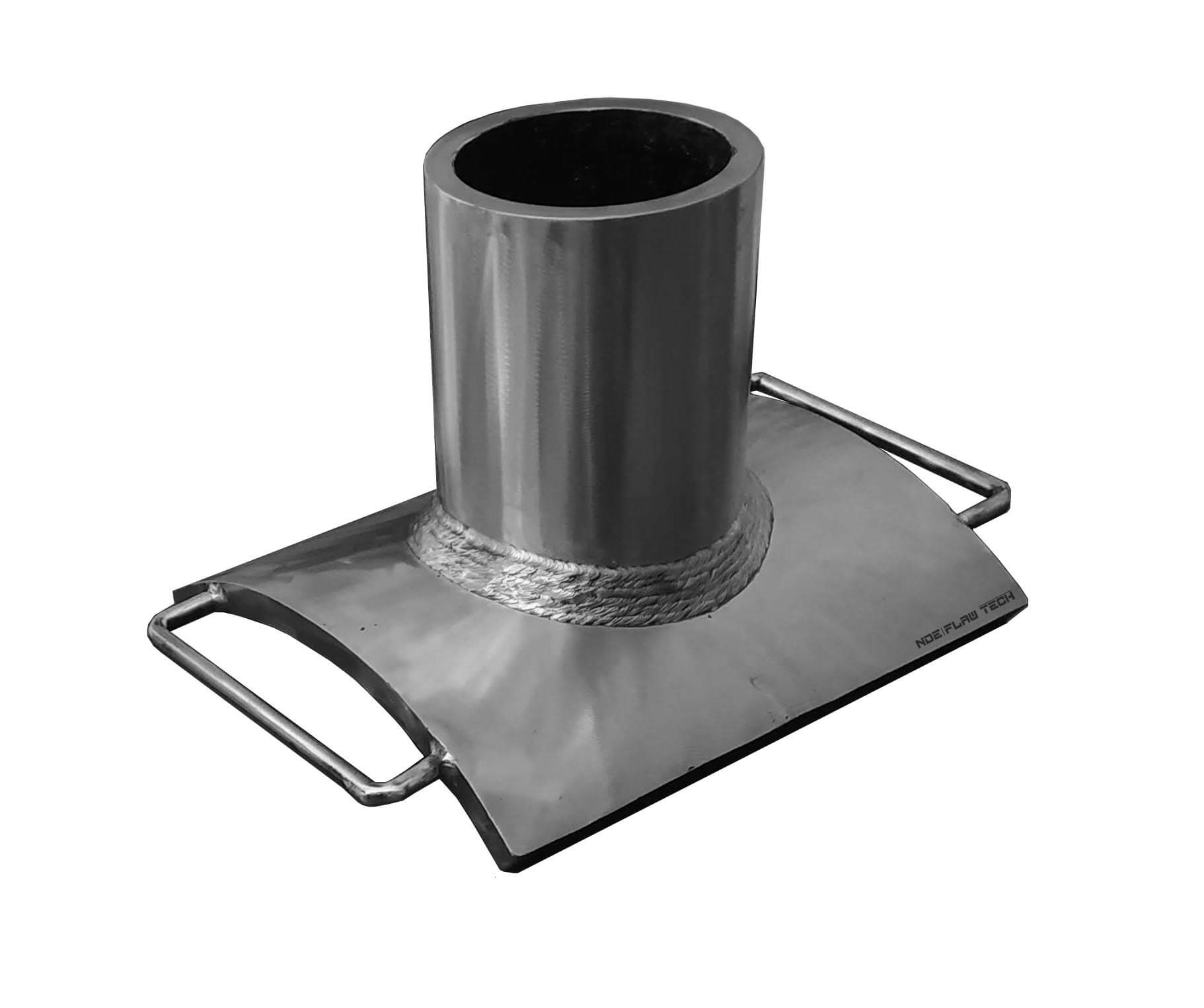

Ø200mm Pipe to Nozzle UT Flaw Test Specimens Set On Full Penetration Joint (Metric Version) Carbon Steel

Ø200mm Pipe to Nozzle UT (Ultrasonic) Flaw Test Specimens 20mm (Set On Full Penetration Joint)

Geometry: Pipe to Flange Nozzle Joint with weld length above 600mm Main Pipe Segment Ø200mm Dia. Branch Ø200mm Dia. Thickness 20mm with (Set On Full Penetration Joint).

Material: Carbon Steel.

Customized Calibration Test Block and Flaw Specimen also available.

Flaws: 3 or 4 per specimen, randomly placed Specimen Tolerance: +/- 0.080".

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.
