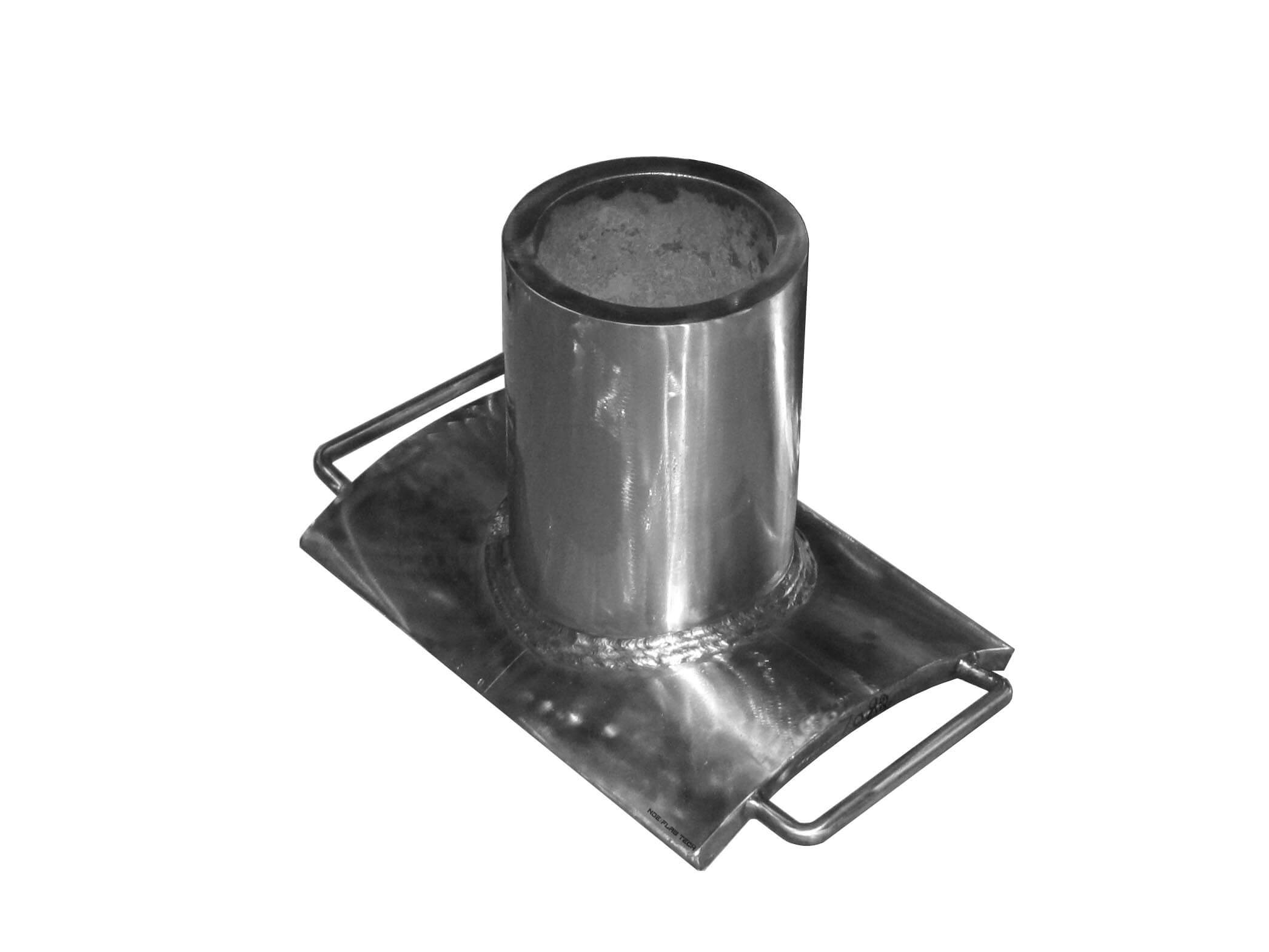

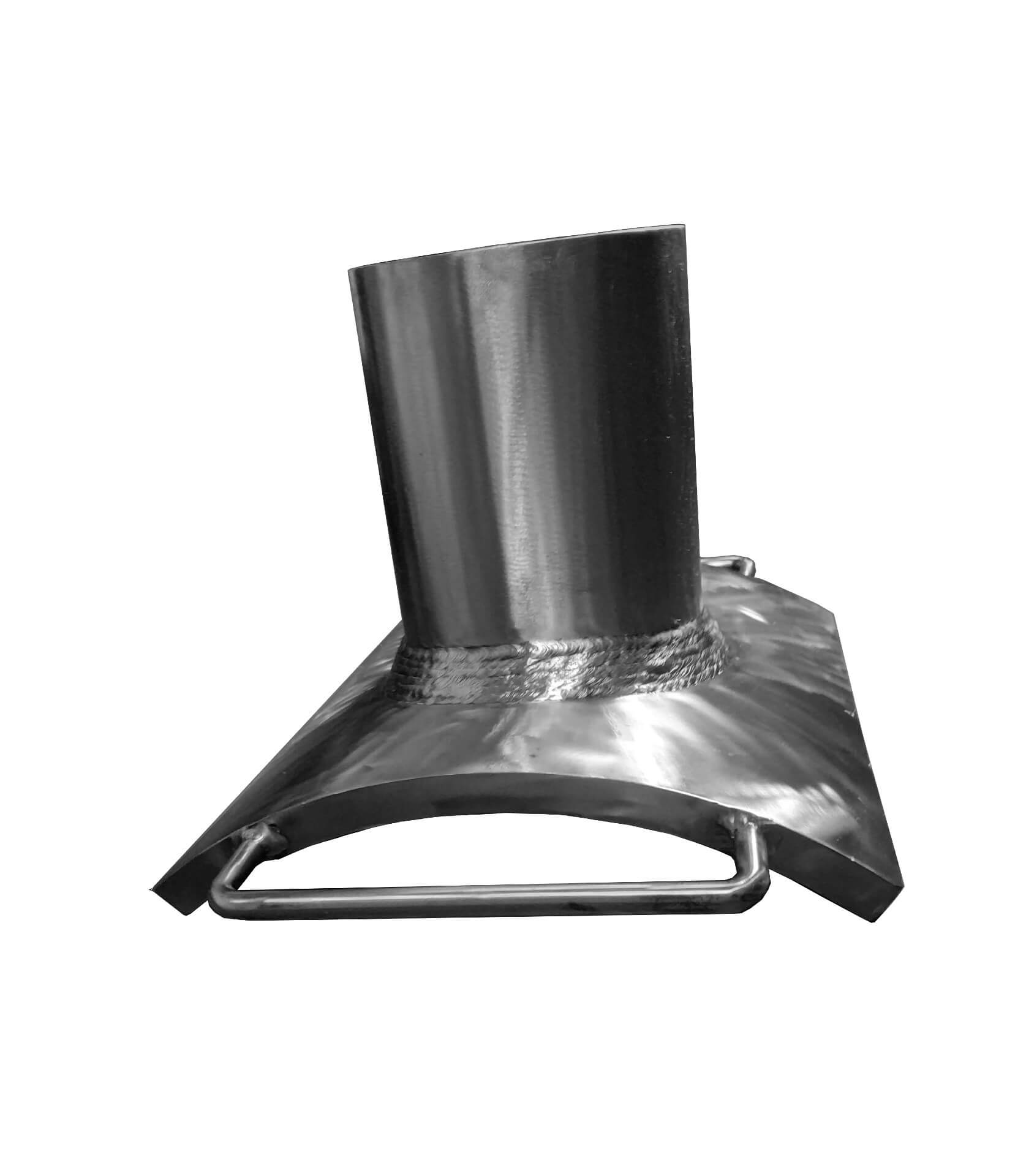

Ø200mm Pipe to Nozzle Weld UT Flaw Specimens Set Through Partial Penetration Joint (Metric Version) Carbon Steel

Ø200mm Pipe to Nozzle Weld UT Flaw Specimens 20mm (Set Through Partial Penetration Joint)

Geometry: Pipe to Flange Nozzle Joint with weld length above 600mm Main Pipe Segment Ø600mm Dia. Branch Ø200mm Dia. Thickness 20mm with (Set Through) Partial Penetration Joint.

Material: Carbon Steel.

Customized Calibration Test Block and Flaw Specimen also available.

Flaws: 3 or 4 per specimen, randomly placed Specimen Tolerance: +/- 0.080"

Documentation: NDT Verification Reports, C of C, CAD Drawings and Test Sheets.
