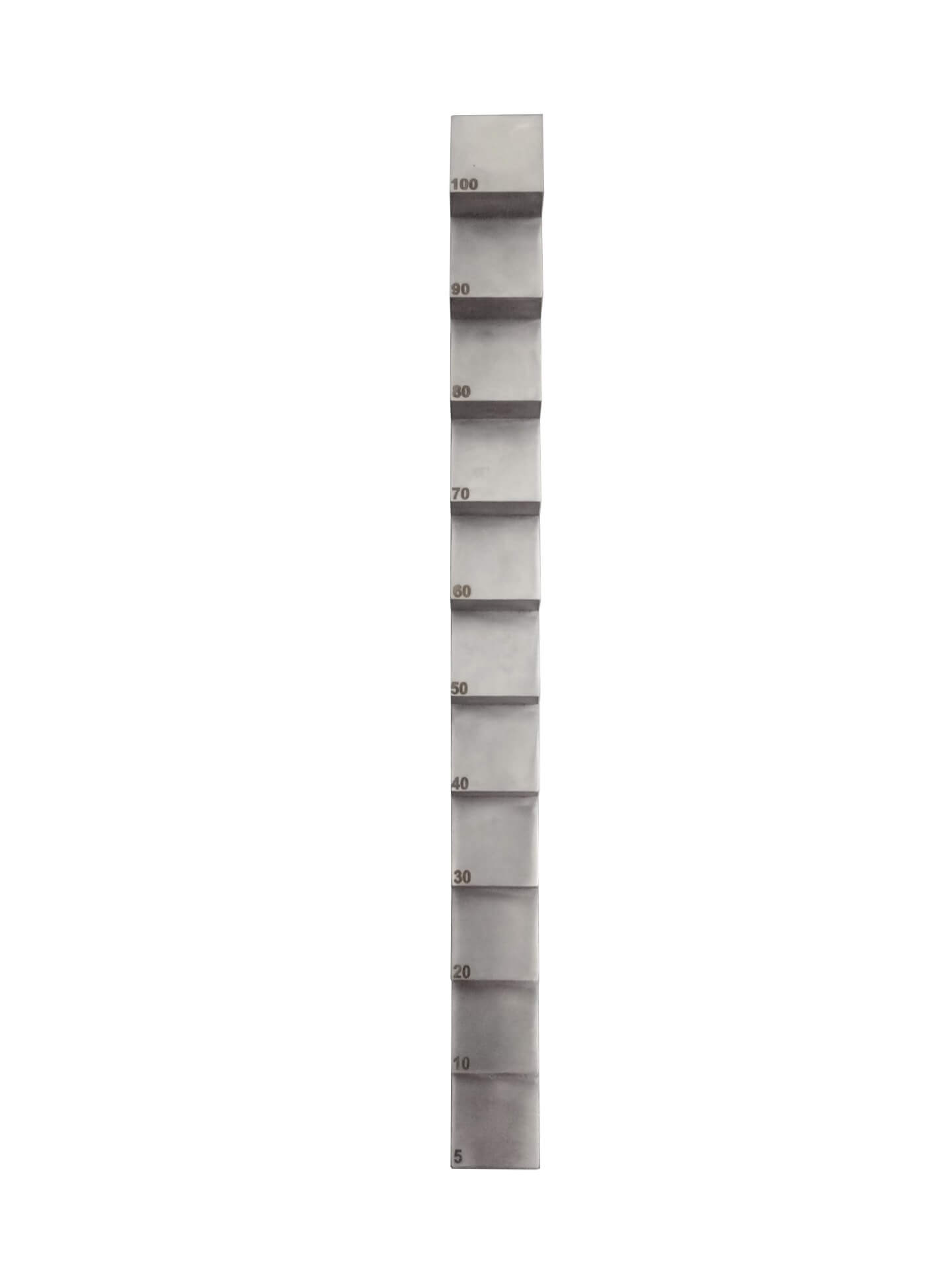

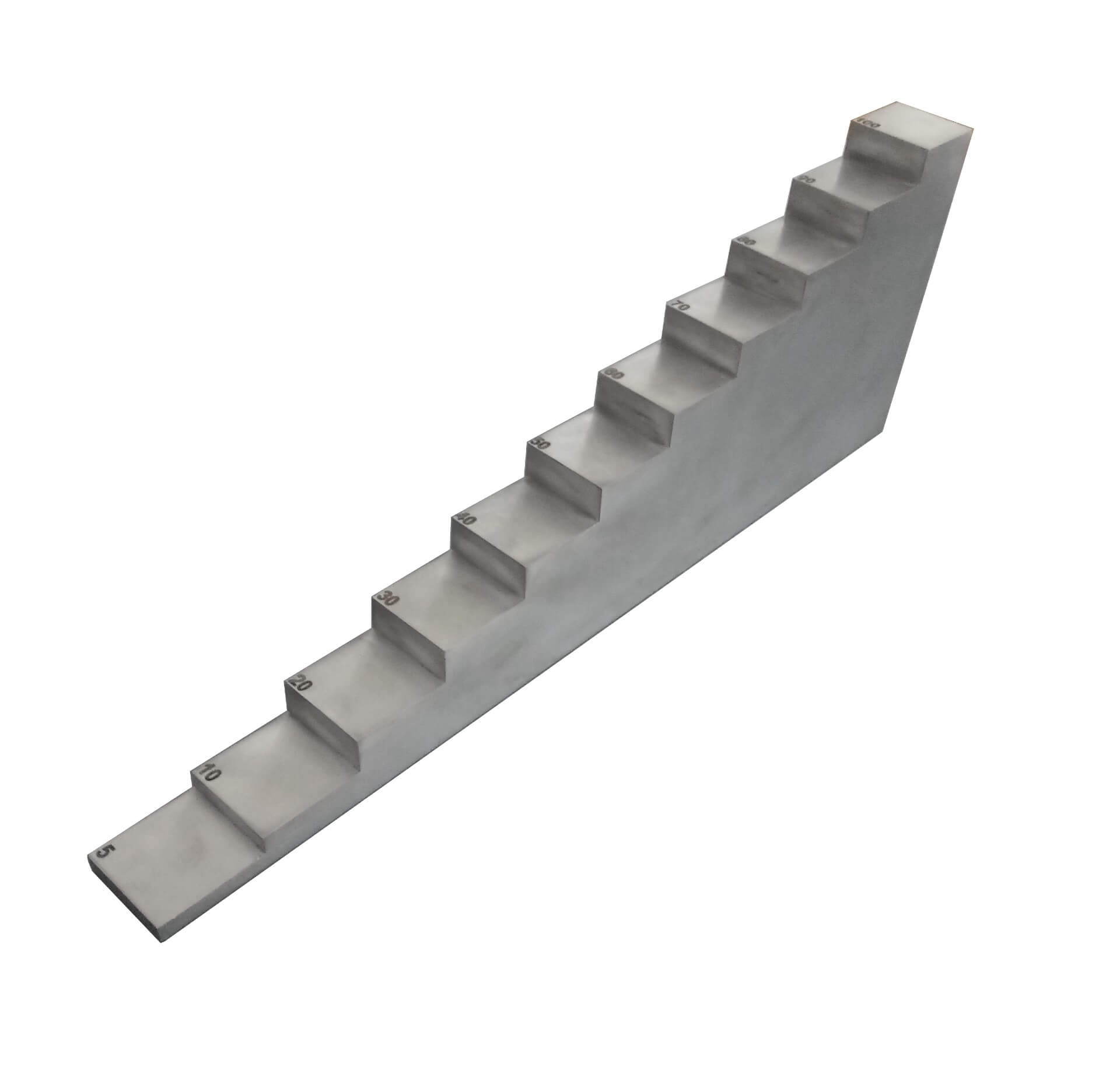

11 Wedge Step Calibration Block (Inch Version) ALUMINUM 7075-T6

Step and tapered calibration wedges come in a large variety of sizes and configurations. Step wedges are typically manufactured with four or five steps but custom wedge can be obtained with any number of steps. Tapered wedges have a constant taper over the desired thickness range. 11 Step Calibration Block for thickness and linearity calibration 11 Step Calibration Block 0.2" - 4".

Dimensions: 11 Step Calibration Block has steps starting at 0.2" to 4" in 0.2", 0.4", 0.8", 1.2", 1.6", 2", 2.4", 2.8", 3.2", 3.5", 4" increments.

Note: Customized Step Block also available.

Metric Step Face: 0.8" X 0.8".

Material: ALUMINUM 7075-T6
